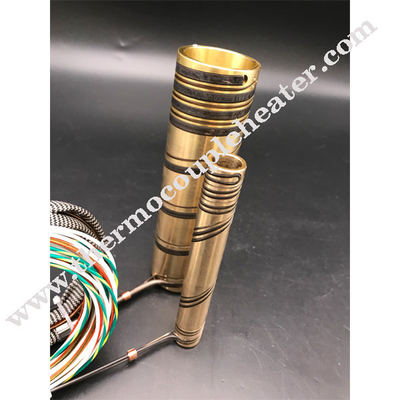

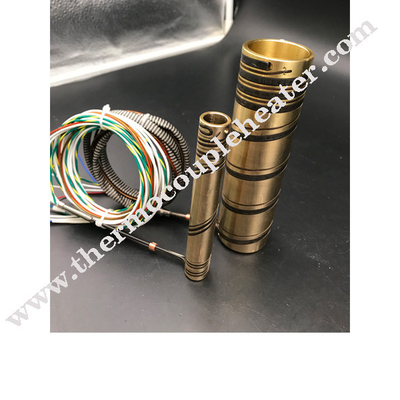

High Performance Brass Nozzle Heater with J Thermocouple for Industrial Heating

High Performance Brass Nozzle Heater with J Thermocouple for Industrial Heating
High Performance Brass Nozzle Heater with J Thermocouple for Industrial Heating High Performance Brass Nozzle Heater with J Thermocouple for Industrial Heating High Performance Brass Nozzle Heater with J Thermocouple for Industrial Heating

Large Image :  High Performance Brass Nozzle Heater with J Thermocouple for Industrial Heating

Product Details:
Place of Origin: China
Brand Name: GME
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: cartons， pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Contact Now
Detailed Product Description
Power Source: Electric Dimension: Customized
Voltage: 110-240V / 50-60Hz Warranty: One Year
Power: 195W-690W Style: Straight Or Coil
Heating Wire Material:: Cr20Ni80 Coiling Scheme: Tangential, Radial Exits, Axial
Material: Brass Or Stainless Steel Color: Copper
Application: Widely Used Height: 10mm~200mm
Highlight:

J Thermocouple Brass Nozzle Heater

,

Industrial Heating Brass Nozzle Heater

High-Performance Brass Nozzle Heater with J Thermocouple for Industrial Heating

Description:

Coil spring heater Electric Brass Nozzle Band Heater are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.



Specification:



1. Flexible cold section
2. Higher watt density than a cable heater
3. Resistance wire centered for more repeatable heat profile
4. Sealed transition head for moisture resistant applications available

Coil heater is made of SS304 sheath ,nickel chrome resistance wire, and high insulation material . It has different models , like
round section ,squre section and rectangle section . Thermocouple options are type J, type k and type E . Spring coil heater is
widely used in hot runner plastic mold , blow machine , extrude machine and nozzle.
Section Area (Square)
3X3mm;3.3X3.3mm;3.5X3.5mm;4X4mm
Section Area (Rectangular)
4X2mm;4X2.2mm;4X2.5mm
Section Area (Round Dia)
1.5mm;2mm;3mm;4mm
Internal diameter
10-50mm
Length
30-280mm
Max temperature
650C
Max wattage density
9W/cm2
Voltage
36v,110v,220v,230v,380v etc
Wattage
200W～2000W
Built-in thermocouple
Type K, J E


Application:



1.Injection molding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection Molds

5. Injection & Blow Moulding Machine Nozzles
6. PET preform & Thin wall container Moulds
7. Hot runner Manifolds
