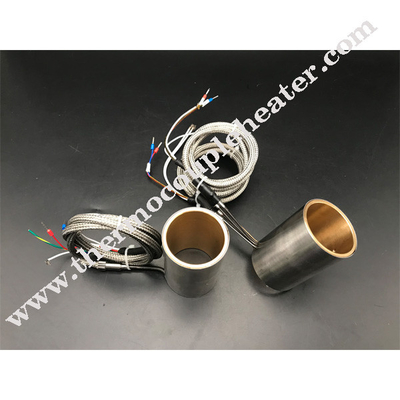

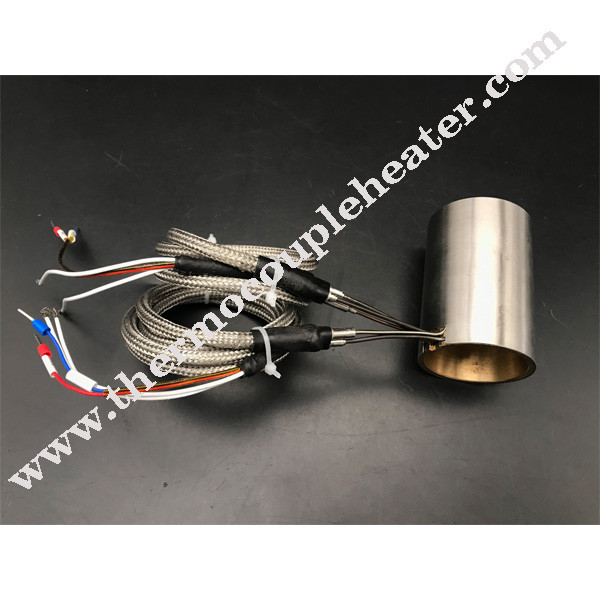

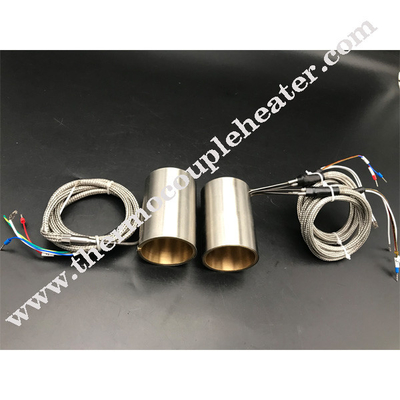

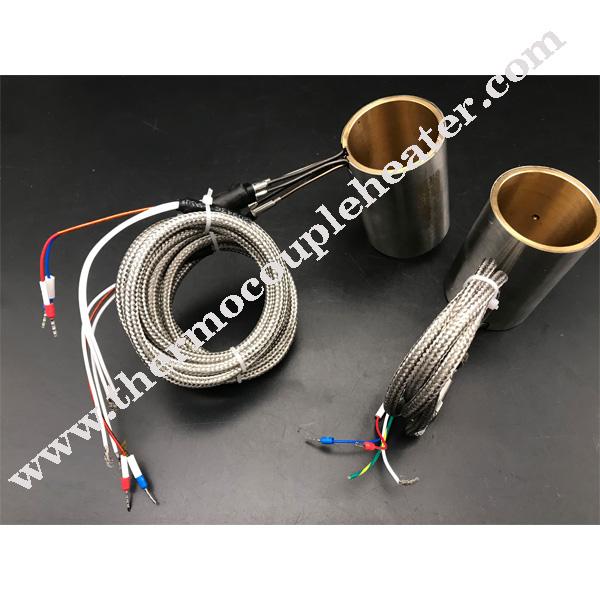

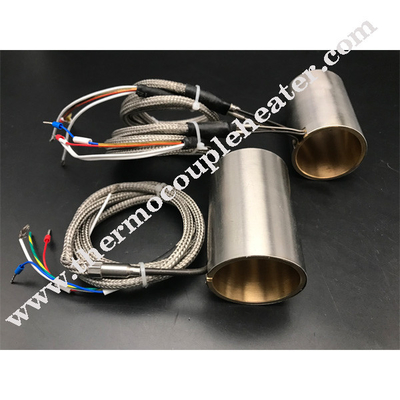

Brass Hot Runner Spring Coil Heater With Dual Heating Element With Stainless Steel Cover
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
Detailed Product Description
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 110-240V / 50-60Hz | Warranty: | One Year |
| Power: | 195W-690W | Style: | Straight Or Coil |
| Heating Wire Material:: | Cr20Ni80 | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Material: | Brass Or Stainless Steel | Color: | Copper |
| Application: | Widely Used | Height: | 10mm~200mm |
| Highlight: | Cr20Ni80 Coil Heater,Brass Spring Coil Heater 195W,Dual Heating Element Spring Heater |
||
Brass Hot Runner Spring Coil Heater with dual Heating Element with stainless steel cover
Description:
hot runner coil heater according with different sizes (the sprue bush or nozzle) design and manufacturing, the sleeve is made of high quality stainless steel or copper, inner sleeve, outer there are various winding section (round, square or flat) heating coil, temperature uniformity, thermal inertia characteristics, can be integrated with the K type, J type or E type control temperature thermocouple
Specification:
1.Spring ring heating specification: heating section: 2.2X4.2 3X3 3.4X3.4 3.5X3.5 4X4mm
2.Heating coil ID 10mm -38mm, heating height of ring: 40mm ~ 200mm
3. Voltage: 220V - 380V,wattages: 200W - 3000W
4.Built-in thermocouple power: with or without J /K thermocouple, length of lead wire as 500mm 1000mm 1200mm 1500mn or 2000mm
5. Continuous Operating Temperatures to 1200°F Intermittent Operating Temperatures to 1500°F
6.Spring heating ring advantages: high working temperature, fast heating, long service life, convenient installation
|
Minimum diameter Φ |
10mm |
|
Voltage |
12V- 400V |
|
Wattage tolerance |
±10% |
|
Material |
SS304/SS321/SS310/SS316 (Customized) |
|
Sleeve material |
Brass |
|
Resistance |
±10% |
|
Dielectric strength |
600V 800V 1000V |
|
Insulation(cold 1000V) |
>10 MΩ |
|
Leakage current(cold) |
<0.5mA |
|
Max power density |
10W/cm² |
|
Heating length tolerance |
±0.05mm |
|
Maximum working temperature allowed on sheath |
Max.750℃ / 1380°F |
|
Build-in Thermocouple |
Type K/ J/ E |
|
Standard supply 1000mm PTEE insulated nickel lead wire |
|
|
Material of lead wire:Fiberglass, Kevlar, Telfon, Silicone Rubber, Metal braided, SUS armoured. |
|
Application:
1.Injection molding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection Molds
5. Injection & Blow Moulding Machine Nozzles
6. PET preform & Thin wall container Moulds
7. Hot runner Manifolds
