Home /Products/Coil Heaters/China supplier Injection Mould Brass Electric Coil Heaters for Hot Runner System

China supplier Injection Mould Brass Electric Coil Heaters for Hot Runner System

50pcs

MOQ

China supplier Injection Mould Brass Electric Coil Heaters for Hot Runner System

Features Gallery Product Description Request A Quote

Features

Specifications

Power Source: Electric

Dimension: Customized

Voltage: 110-240V / 50-60Hz

Warranty: One Year

Power: 195W-690W

Style: Straight Or Coil

Heating Wire Material:: Cr20Ni80

Coiling Scheme: Tangential, Radial Exits, Axial

Material: Brass Or Stainless Steel

Color: Copper

Application: Widely Used

Height: 10mm~200mm

Highlight:

Injection Mould Coil Heaters

,

Brass Electric Coil Heaters

,

Hot Runner System Coil Heaters

Basic Infomation

Place of Origin: China

Brand Name: GME

Certification: CE

Payment & Shipping Terms

Packaging Details: cartons， pallet

Delivery Time: 7~10 working days

Payment Terms: T/T, Western Union, MoneyGram, L/C

Supply Ability: 100000 pcs per Month

Gallery

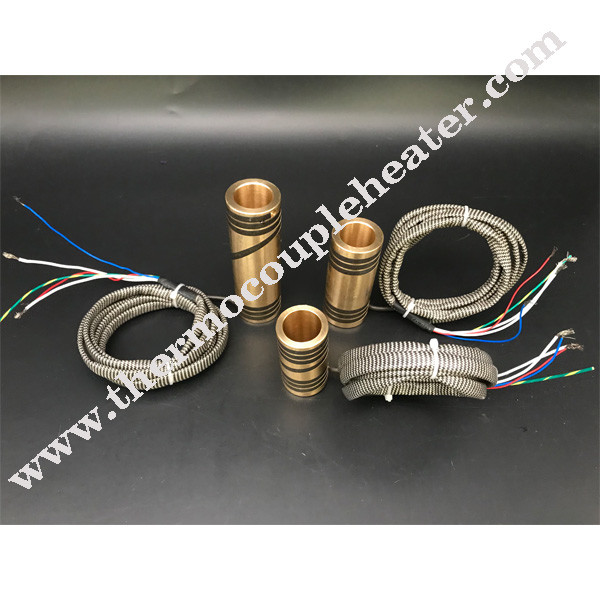

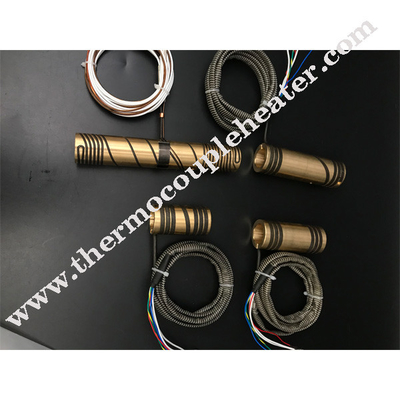

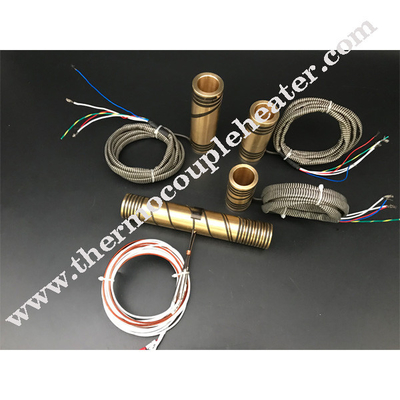

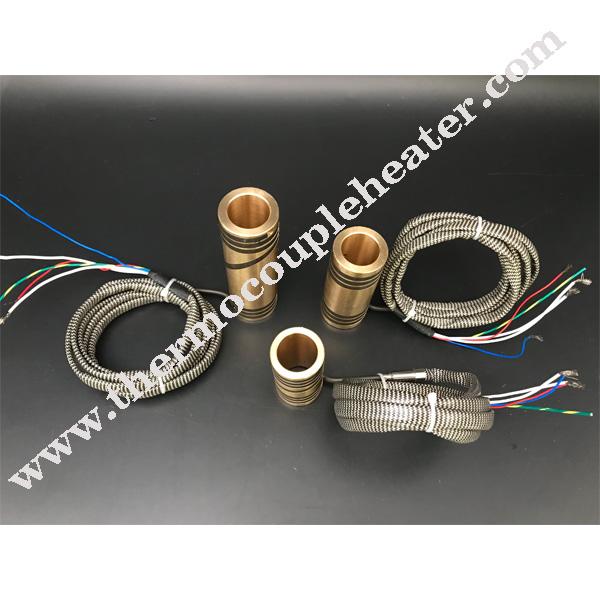

China supplier Injection Mould Brass Electric Coil Heaters for Hot Runner System

Product Description

China supplier Injection Mould Brass Electric Coil Heaters for Hot Runner System

Description:

Coil spring heater Electric Brass Nozzle Band Heater are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.

Specification:

1. Flexible cold section
2. Higher watt density than a cable heater
3. Resistance wire centered for more repeatable heat profile
4. Sealed transition head for moisture resistant applications available

Product Paramenters

Item name	electric hot runner coil heater
Resistance heating wire	Ni-Cr or FeCr
Sheath	stainless steel 304,321,316, Incoloy 800, Incoloy 840, Ti
Insulation	High-purity Mgo
Maximum temperature	700 degree Celsius
Die Electrical Strength	800V A/C
Insulation	> 5 M W
Wattage Tolerance	+5%, -10%
Thermocouple	K type or J type
Lead wire	300mm length; Different type of wire (PTFE/silicone high temperature frberglass) is available

Application:

Injection molding machine nozzle

Hot Runner Nozzles & Bushings

Packaging machinery

Hot runner Injection Molds
Injection & Blow Moulding Machine Nozzles

PET preform & Thin wall container Moulds

Hot runner Manifolds

Tag:

electric resistance heater

Electric Coil Heaters

coil heater with thermocouple
