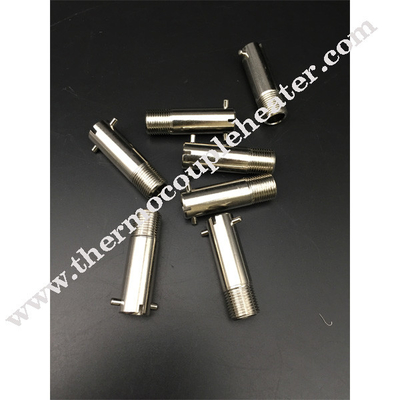

Customized Industrial Sheathed Bayonet k Type Thermocouple

Large Image : Customized Industrial Sheathed Bayonet k Type Thermocouple

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Temperature Range:	-200~650℃
Voltage:	12-480V	Probe Material:	Stainless Steel Or Nickel
Pairs Quantity Of Element:	Simplex/duplex	Heating Element:	Nichrome Resistance
Mounting:	Thread/flange/none	Function:	Temperature Sensor
Types Of Terminal Box:	Anti-spray/water-proof	Connection:	Thread
Highlight:	Bayonet k Type Thermocouple , Customized Bayonet k Type Thermocouple

Customized Industrial Sheathed Bayonet k Type Thermocouple

Description:

Pressure spring thermocouple is the most widely used temperature device in temperature measurement, its main characteristics is a wide range of temperature measurement K type 0℃ ~ 800℃, E type 0℃ ~ 400℃ performance is relatively stable, while the structure is simple, dynamic response is good, easy to automatic control and centralized control. The grading signs are B, R, S, K, N, E, J and T. Commonly used for power, chemical industry, injection molding, packaging, food, incubator, oven above the temperature measurement.

Specification:

Grading number: TYPE K, type E
Temperature range: 0 ~ 600℃, short-term 800℃ (TYPE K), 0 ~ 400℃, short-term 600℃ (type E)
Length of shielding wire (tail wire) : High temperature shielding wire (metal shielding), 0.5-10 m in length
Normal use of the probe diameter: φ0.5mm/φ0.6mm/φ0.7mm......
Interface thread: M12 *1.5 (please specify special thread, such as M10 *1.5)
Front probe: national standard φ5*30 (special length please specify, such as: φ5*30mm ~ 100mm)
Length of jacket: 32mm (please specify the special length, such as 70mm, 100mm)

The linear thermocouple K type operating temperature is generally not more than 800 degrees; E-type use temperature generally not more than 400 degrees; Pt100 thermal resistance operating temperature -45 ~ +420℃, if you have special requirements, please contact me.

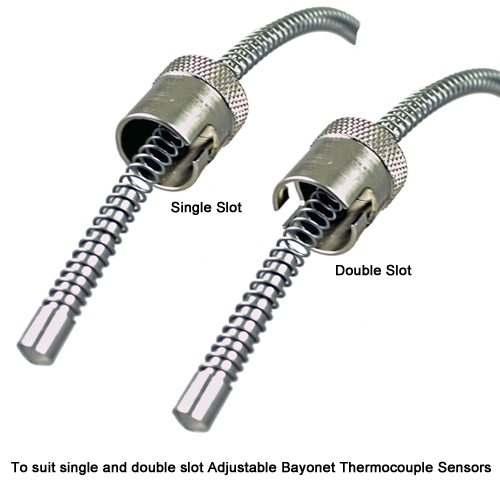

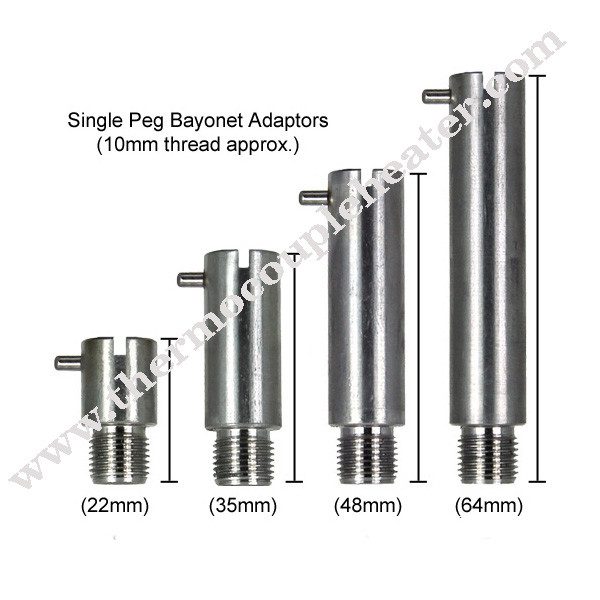

Customized Industrial Sheathed Bayonet k Type Thermocouple 1

Application:

Food processing equipment
Plastic injection molding machinery
Engine and turbine exhaust gas
Semiconductor processing
Heat treating and metals processing
Medical equipment
Aerospace industries
Packaging equipment
Test stands
