Nozzle injection molding machine spring heating ring hot runner heating ring mold heating ring soft strip heater

Nozzle injection molding machine spring heating ring hot runner heating ring mold heating ring soft strip heater
Nozzle injection molding machine spring heating ring hot runner heating ring mold heating ring soft strip heater Nozzle injection molding machine spring heating ring hot runner heating ring mold heating ring soft strip heater Nozzle injection molding machine spring heating ring hot runner heating ring mold heating ring soft strip heater

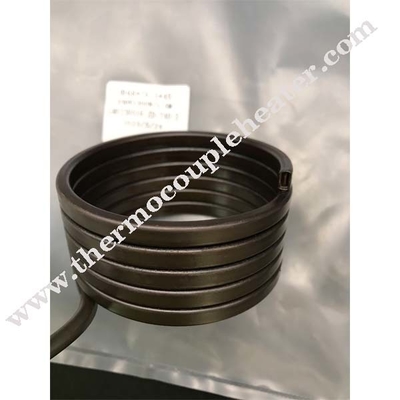

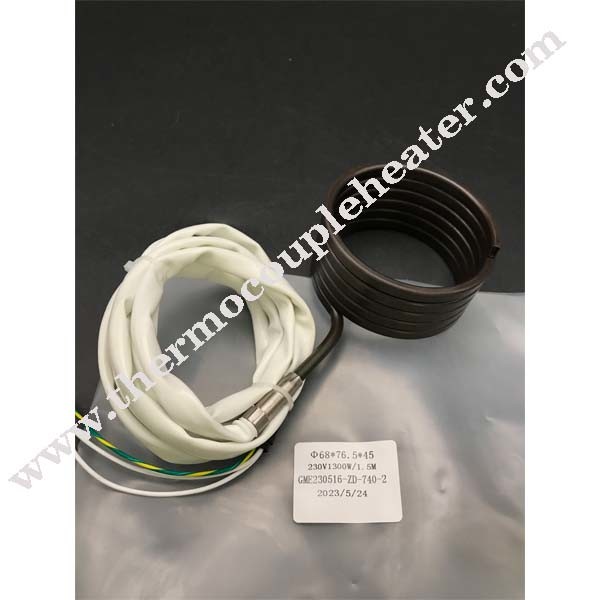

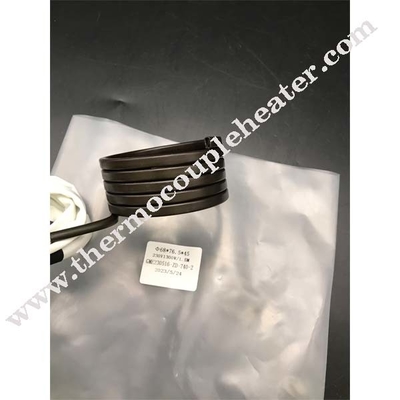

Large Image :  Nozzle injection molding machine spring heating ring hot runner heating ring mold heating ring soft strip heater

Product Details:
Place of Origin: China
Brand Name: GME
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: cartons， pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Contact Now
Detailed Product Description
Power Source: Electric Dimension: Customized
Voltage: 110-240V / 50-60Hz Warranty: One Year
Power: 195W-690W Style: Straight Or Coil
Heating Wire Material:: Cr20Ni80 Coiling Scheme: Tangential, Radial Exits, Axial
Material: Brass Or Stainless Steel Color: Copper
Application: Widely Used Height: 10mm~200mm
Highlight:

Soft strip heater

,

Mold heating ring

Nozzle injection molding machine spring heating ring hot runner heating ring mold heating ring soft strip heater

Description:



1) Hot runner coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape.



2) Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.



Specification:



1. Flexible cold section
2. Higher watt density than a cable heater
3. Resistance wire centered for more repeatable heat profile
4. Sealed transition head for moisture resistant applications available

Product Paramenters
Product name
Hot runner series heater
Insulation Material
High Pure MgO
Resistance Wire
Cr20Ni80
Die Electrical Strength
800V A/C
Resistance tolerance
10%
Heating coil I.D
8mm~40mm
Max power density
9W/cm²
Cross sections optional
3*3/4*4
Working life
10,000 hours under less than 400℃ minus and 2000 hours at 700℃



Application:



1.Injection molding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection Molds

5. Injection & Blow Moulding Machine Nozzles
6. PET preform & Thin wall container Moulds
7. Hot runner Manifolds

Nozzle injection molding machine spring heating ring hot runner heating ring mold heating ring soft strip heater 0



Tag:

electric resistance heater,

Electric Coil Heaters,

coil heater with thermocouple
