Electric Resistance Axial Clamp Band Coil Heater with Thermocouple Type K for Hot Runner System

Electric Resistance Axial Clamp Band Coil Heater with Thermocouple Type K for Hot Runner System
Electric Resistance Axial Clamp Band Coil Heater with Thermocouple Type K for Hot Runner System

Large Image :  Electric Resistance Axial Clamp Band Coil Heater with Thermocouple Type K for Hot Runner System

Product Details:
Place of Origin: China
Brand Name: GME
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: cartons， pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Contact Now
Detailed Product Description
Power Source: Electric Dimension: Customized
Voltage: 110-240V / 50-60Hz Warranty: One Year
Power: 195W-690W Style: Straight Or Coil
Heating Wire Material:: Cr20Ni80 Coiling Scheme: Tangential, Radial Exits, Axial
Material: Brass Or Stainless Steel Color: Copper
Application: Widely Used Height: 10mm~200mm
Highlight:

Thermocouple Type K Coil Heater

,

Axial Clamp Band Coil Heater

,

Hot Runner System Coil Heater

Electric Resistance Axial Clamp Band Coil Heater with Thermocouple Type K for Hot Runner System

Description:

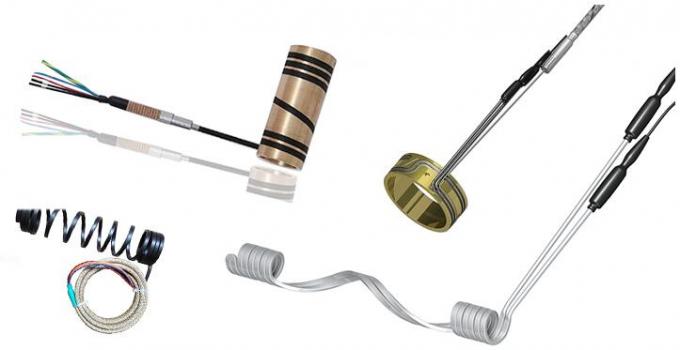

This series is variety of different diameter and length jacket heater. The hot nozzle is in according with different size to design and manufacturing. The inner sleeve is made of high quality stainless steel or copper, the outer there are various winding section(round, square or flat) heating coil. The temperature is uniformity,thermal inertia characteristics, can be integrated with the K type, J type or E type to control temperature thermocouple



Specification:




Sheath material
304SS or 316L
Range of working voltage
12V to 440V
Insulation Material
High Pure MgO
Working life
10,000 hours under less than 400℃ minus and 2000 hours at 700℃
Surface treatment
Original metal bright
Lead and sleeve
Please refer to page
Resistance Wire
Cr20Ni80
Die Electrical Strength
800V A/C
Resistance tolerance
10%
Max power density
9W/cm²
High voltage stability test
Less than 0.5mA leak under 1000V for 30 seconds
Cold zone length
50mm standard, and other sizes available
D of cold zone adaptor
8x30mm and 6.35x25mm optional
Standard leads
1000mm black PTFE wire over 300℃
Working life
10,000 hours under less than 400℃ minus and 2000 hours at 700℃
Surface treatment
Silver sandblasted or black


Application:



Hot runner system,

plastic industry

Packaging Machinery

Medical Equipment

Casting Process

Other electric heating industry
