Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 12-380v | Sheath Material: | Stainless Steel Or Nickel |
| Power: | 1w-10000w | Style: | Straight Or Coil |
| Material: | Ss304 Or Requirement | Length: | Up To Your Order |

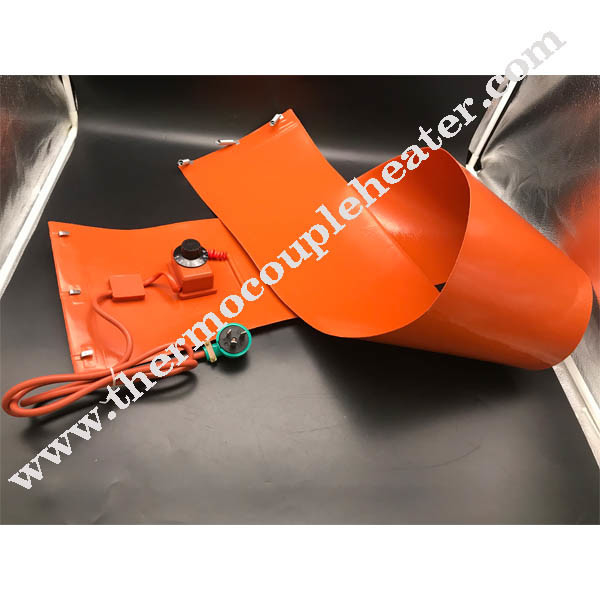

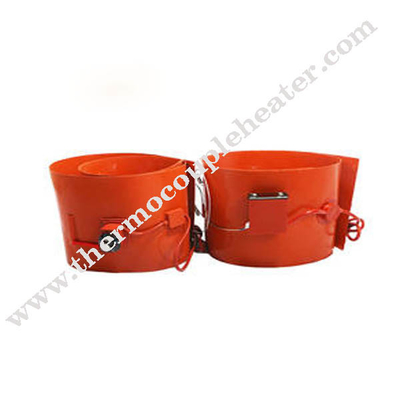

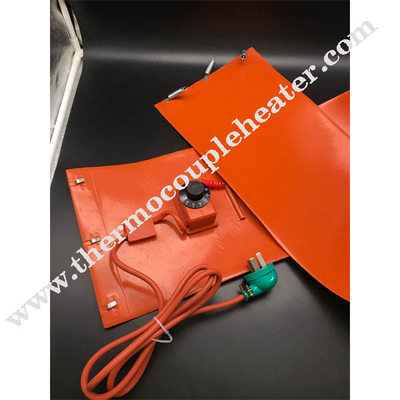

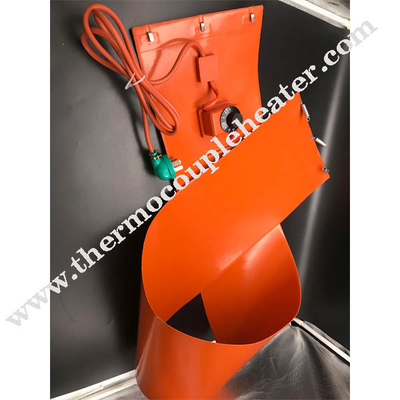

drum heater is a heating device designed to warm the contents of a drum, such as liquids or semi-solid
materials. It is typically used in industrial processes where materials need to be heated for processing or
storage purposes
Technical parameters:
1. Temperature range: 0~250.00°C:
2: thickness :1.5mm-1.8mm
3. Power density: 0.10~1.50w/cm²
4. Mechanical pressure: 100.00kg/cm²
5. Electric resistance precision: ±10%( bigger value selected)
6. Minimum bending radius: 3.20mm
| size(mm) | power | Temperature control |

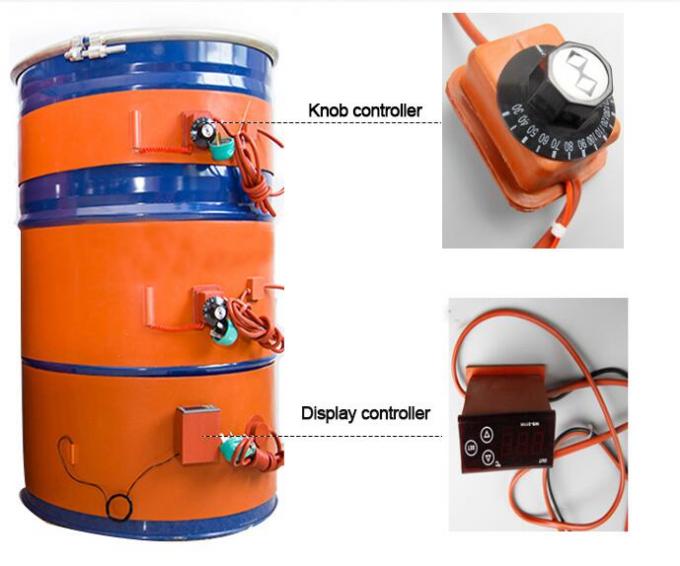

| in stock 125*1740 | 1kw 2kw | knob control: (Error range: ± 5℃) Display controller: (Error range: ±1℃) |
| in stock 250*1740 | 2kw 3kw | |
| 250*1840(200L) | 2kw | |
| 200*860 | 0.8kw | |
| 200*860 | 0.8kw | |
| 250*1200(100L) | 1.5kw | |
| 250*1520(150L) | 2kw | |
| 880*1780 | 6kw |
Application:
1.Oil / Honey Tank Drum Heater
2.Container or LBC heating blanket
3.Gas cylinder heaters
