Hot runner brass pipe heater nozzle heater pressed with coil heater

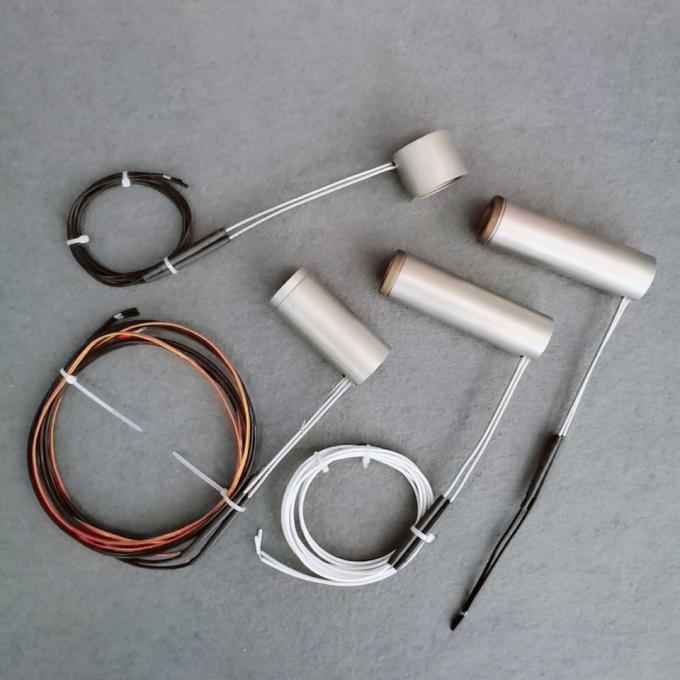

Large Image : Hot runner brass pipe heater nozzle heater pressed with coil heater

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	110-240V / 50-60Hz	Warranty:	One Year
Power:	195W-690W	Style:	Straight Or Coil
Heating Wire Material::	Cr20Ni80	Coiling Scheme:	Tangential, Radial Exits, Axial
Material:	Brass Or Stainless Steel	Color:	Copper
Application:	Widely Used	Height:	10mm~200mm
Highlight:	Brass Pipe Heater Nozzle Heater , Coil Heater Pipe Heater Nozzle , Brass Pipe Heater Nozzle

Brass Nozzle Spring Coil Heaters For Hot Runner System With Thermocouple J

Description:

This series is variety of different diameter and length jacket heater. The hot nozzle is in according with different size to design and manufacturing. The inner sleeve is made of high quality stainless steel or copper, the outer there are various winding section(round, square or flat) heating coil. The temperature is uniformity,thermal inertia characteristics, can be integrated with the K type, J type or E type to control temperature thermocouple

Specification:

Cross Section	1.5mm , 1.8mm, 1.3x2.3mm
Sheath material	Chrome Nickel Steel
Insulation material	High purity MgO
Heating element	NiCr 8020
Voltage Range	Maximum 250 volts, standard 230 volts
Power rating	Depending on application
Insulation Resistance	10 MW @ 500V DC (special on request)
Power tolerance	± 10% (Tighter Tolerance available)
Current Leakage	: < 0.5 mA @ 253 V AC
Unheated Length	Minimum 25 mm plus adapter connection
Minimum Bending diameter	6mm

Application:

Hot runner system,

plastic industry

Packaging Machinery

Medical Equipment

Casting Process

Other electric heating industry

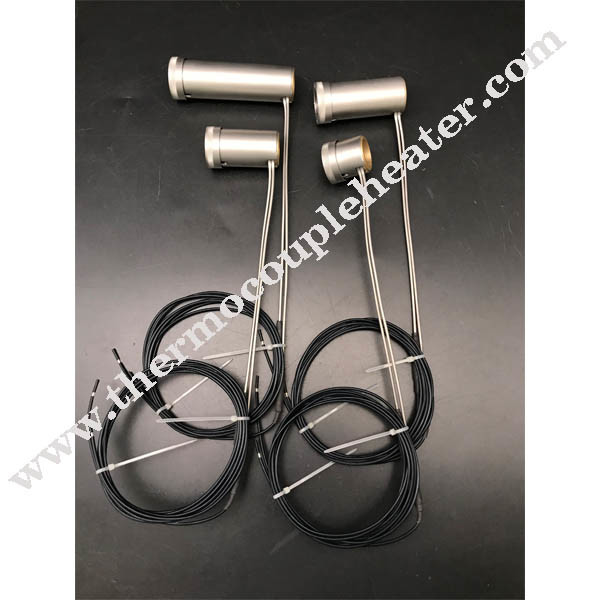

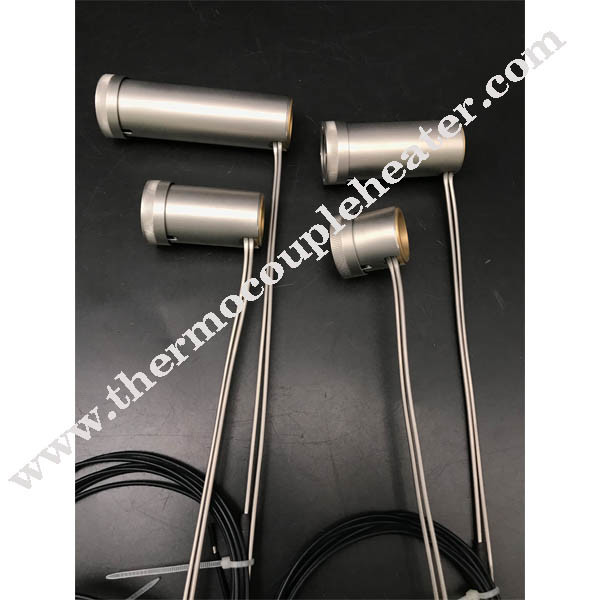

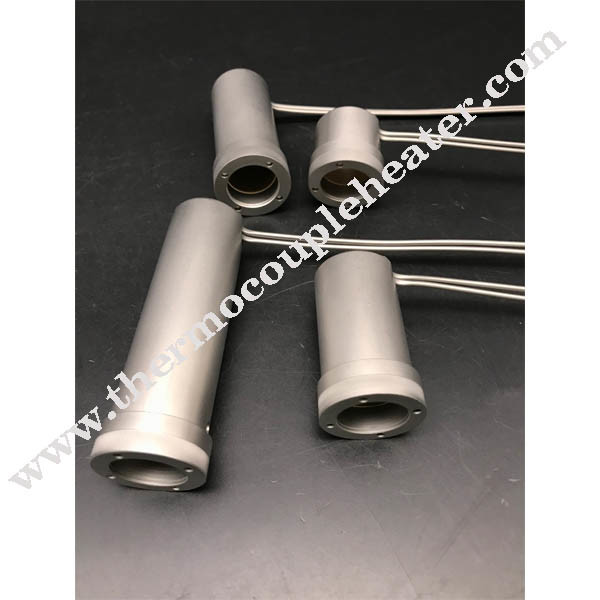

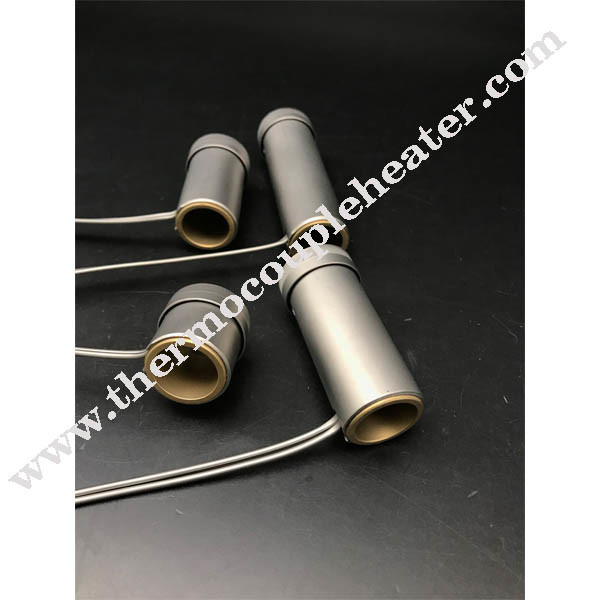

Hot runner brass pipe heater nozzle heater pressed with coil heater 0
