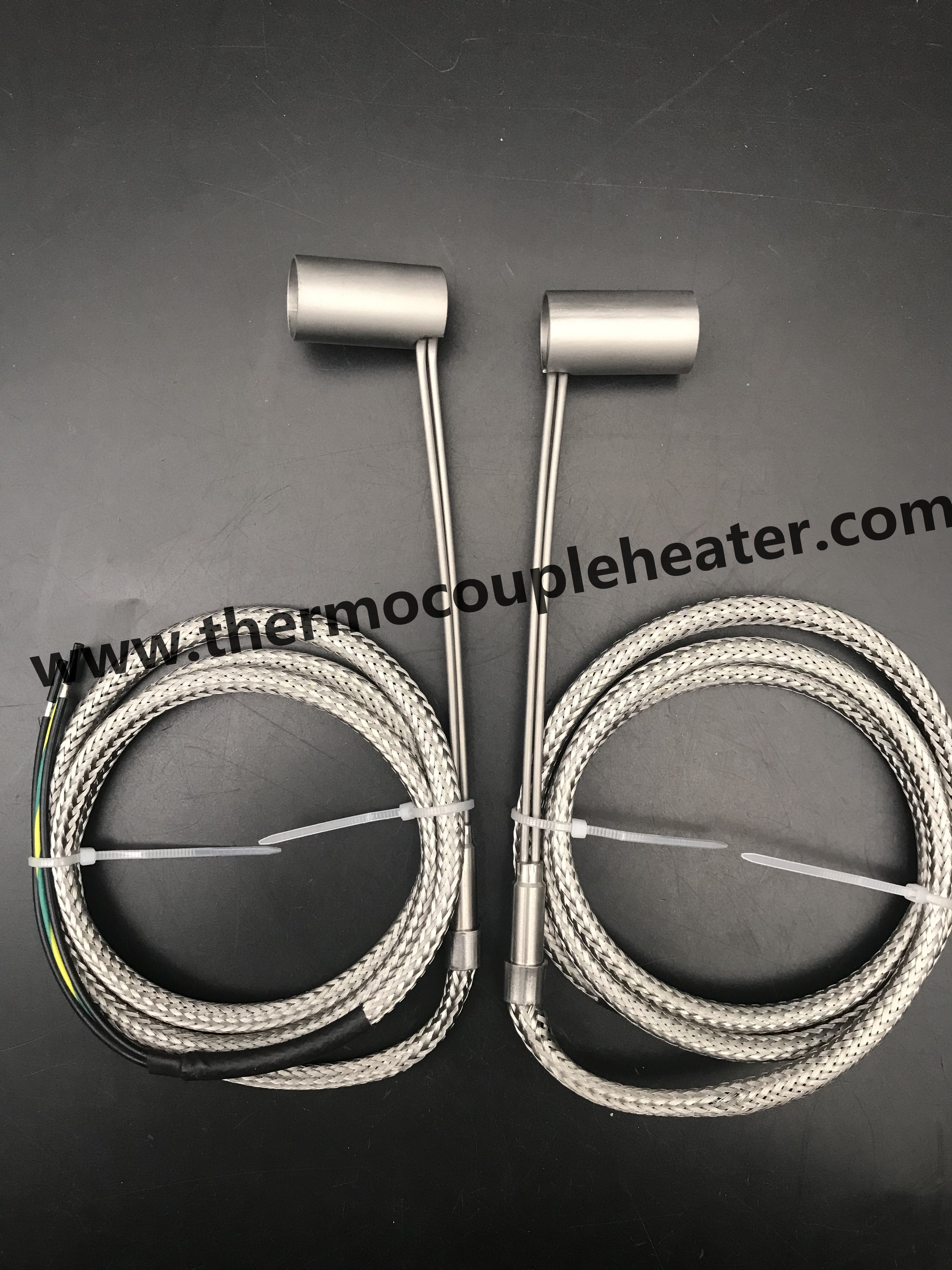

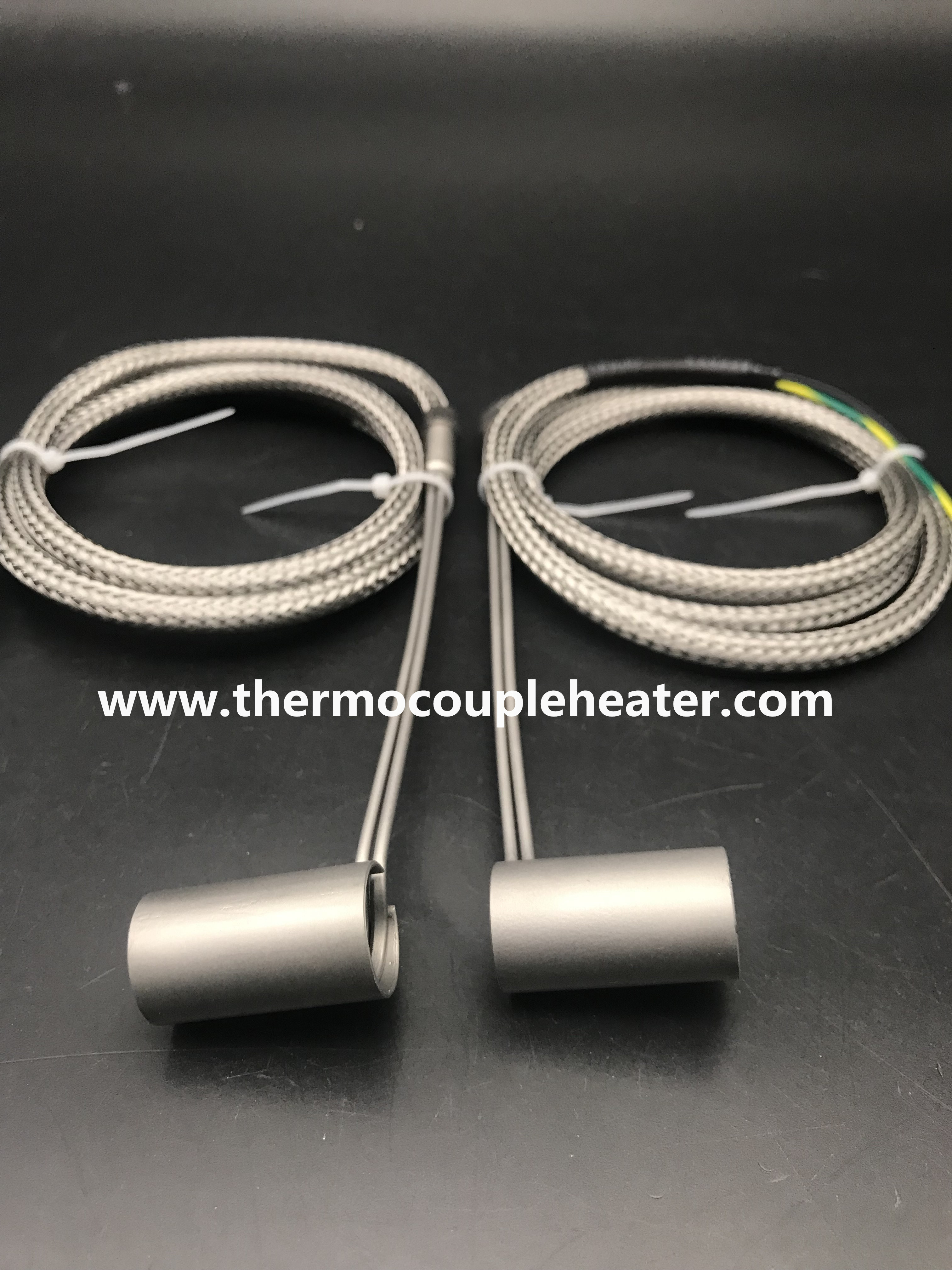

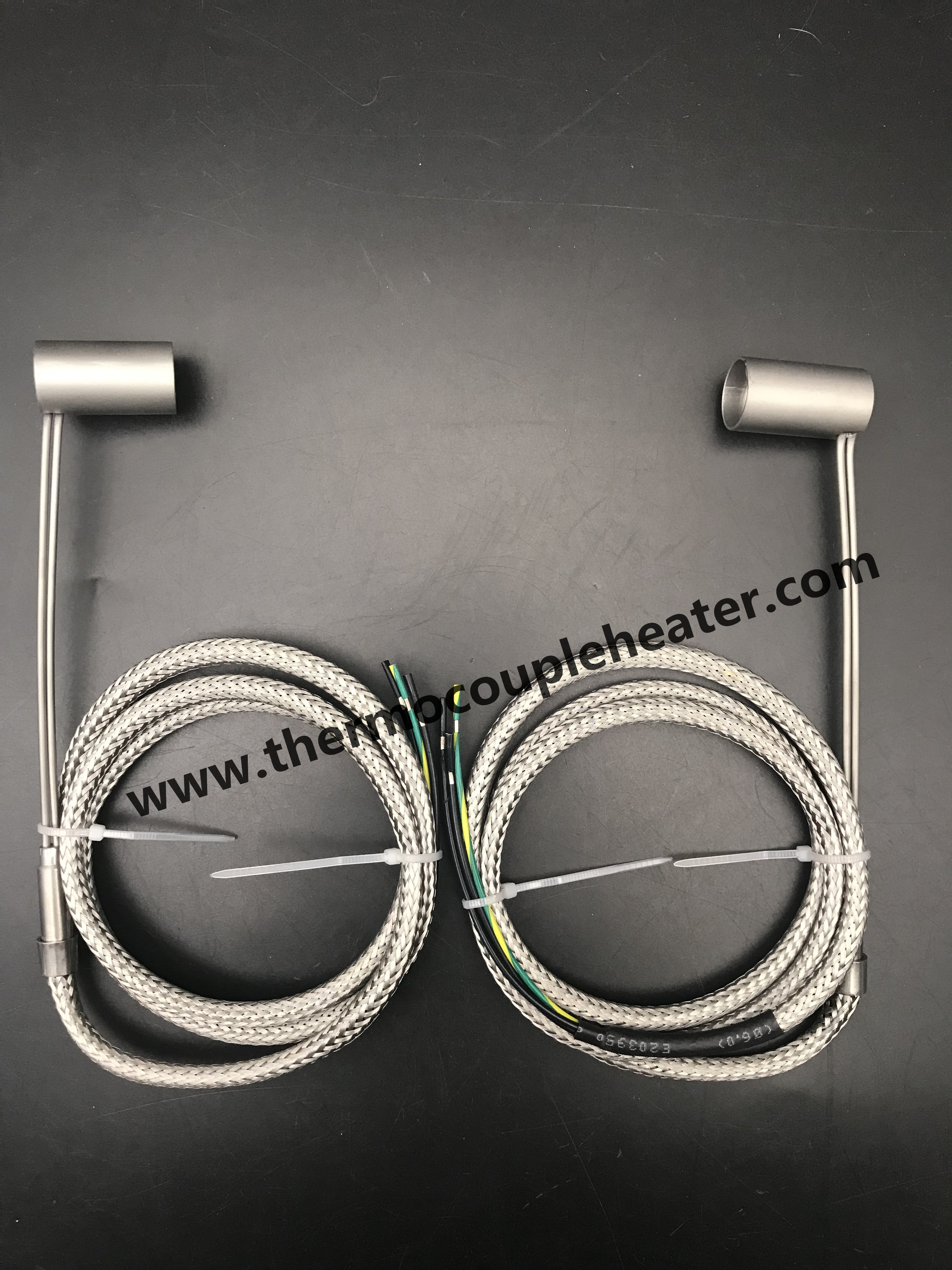

Micro Tubular Coil Heaters With Stainless Steel Cover for nozzle heating

Micro Tubular Coil Heaters With Stainless Steel Cover for nozzle heating

    • Micro Tubular Coil Heaters With Stainless Steel Cover for nozzle heating
    • Micro Tubular Coil Heaters With Stainless Steel Cover for nozzle heating
    • Micro Tubular Coil Heaters With Stainless Steel Cover for nozzle heating
  • Micro Tubular Coil Heaters With Stainless Steel Cover for nozzle heating

    Product Details:

    Place of Origin: China
    Brand Name: GME

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pcs
    Packaging Details: Standard exporting package
    Delivery Time: 5-10 days
    Payment Terms: L/C, Western Union, T/T, Paypal
    Supply Ability: 20,000 pcs per month
    Contact Now
    Detailed Product Description
    Resistance Wire: Ni Cr 80-20 Insulation Material: MgO
    Cover Material: Stainless Steel Heating Wire: Φ1.8mm
    Unheated Length: 40+/-5mm Thermocouple: Available
    Lead Wire Sheath: Fiber Glass Or Steel Mesh, Customized Application: Hot Runner Nozzle

    Micro Tubular Coil Heaters With Stainless Steel Cover for nozzle heating





    Description



    The 1.8mm diameter Micro Tubular Heater is formed into a coil of predefined dimension and equipped with a special cover for easy fittment. This special cover called Axial clamp allows front end loading and adjustability. Such easy handling saves hours of downtime in case of heater failure in a Multi - Cavity mold. These heaters are offered with staggered.



    Resistances microtubule or Coiler type are small diameter resistance, but of high calorific value for electrical heating is needed in very small spaces and small. The heater wire is of the highest quality market with a thin outer layer and covered by a sheath of stainless steel, prepared for a process of compaction is achieved with longer life and become very hot.



    Resistance can take shape as required, thus conforming to the basic needs of each client. Solid surfaces can be heated well be straight (blade or folding), in a helical (pipes, injection nozzles) or other geometric shapes as needed.



    Also compared to other companies, we can manufacture resistors as for our customers according to their technical indications and quantities you require from a single unit until they are required.



    Micro Tubular Coil Heaters With Stainless Steel Cover for nozzle heating





    Application



    • Hot Runner Nozzles & Bushings.
    • Hot runner Injection moulds
    • Injection & Blow Moulding Machine Nozzles.
    • PET prefrom & Thin wall container Moulds.
    • Hot Runner Manifolds.
