Place of Origin: | China |
Brand Name: | GME |
Certification: | CE |
Minimum Order Quantity: | 50pcs |
---|---|
Packaging Details: | cartons, pallet |
Delivery Time: | 7~10 working days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 100000 pcs per Month |
Power Source: | Electric | Dimension: | Customized |
---|---|---|---|
Voltage: | 110-240V / 50-60Hz | Warranty: | One Year |
Power: | 195W-690W | Style: | Straight Or Coil |
Heating Wire Material:: | Cr20Ni80 | Coiling Scheme: | Tangential, Radial Exits, Axial |
Material: | Brass Or Stainless Steel | Color: | Copper |
Application: | Widely Used | Height: | 10mm~200mm |
Highlight: | Hot Runner Brass Pipe Heater,Coil Heater Brass Pipe Heater,Thermocouple Brass Pipe Heater |

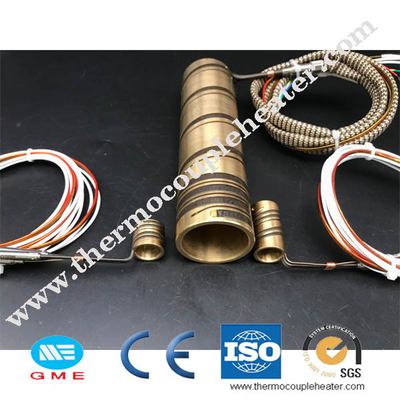

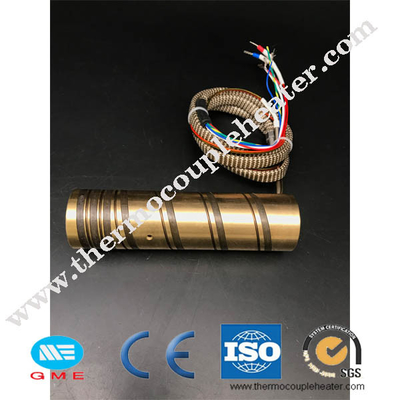

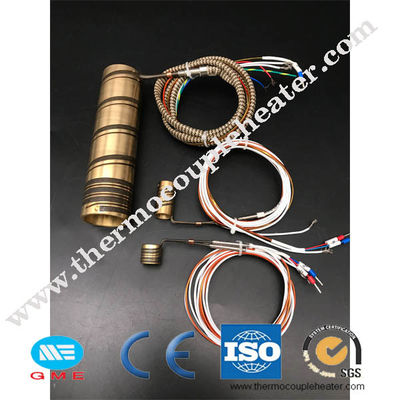

1) Hot runner coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape.
2) Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.
The flat coil heater: 110/120V,100W/150W/200W ,8/9/10mm ID and 25/26mm OD ,with k type thermocouple and ground wire. with 5 feet black kevlar sheath and fully black XLR male plug
12VDC, 70W ,8/9/10mm ID and 25/26mm OD ,with k type thermocouple and ground wire. with 5 feet black kevlar sheath and fully black XLR male plug
Specification:
1. Flexible cold section
2. Higher watt density than a cable heater
3. Resistance wire centered for more repeatable heat profile
4. Sealed transition head for moisture resistant applications available
Application:
1.Injection molding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection Molds
5. Injection & Blow Moulding Machine Nozzles
6. PET preform & Thin wall container Moulds
7. Hot runner Manifolds
