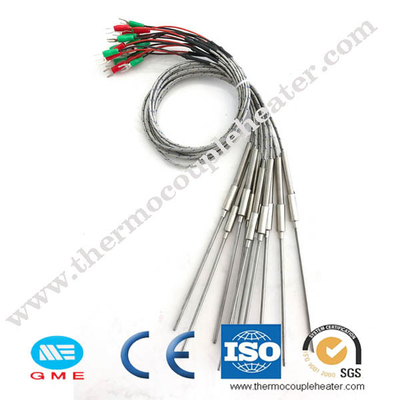

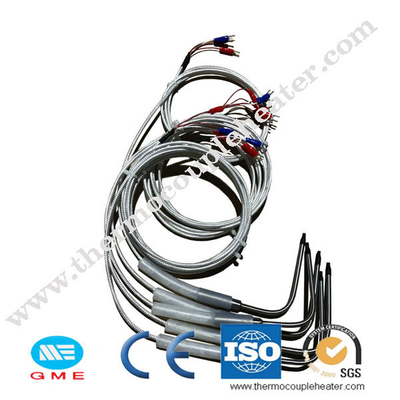

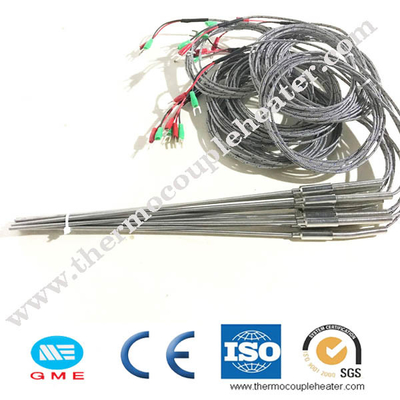

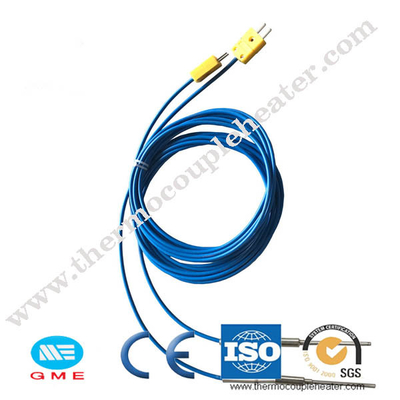

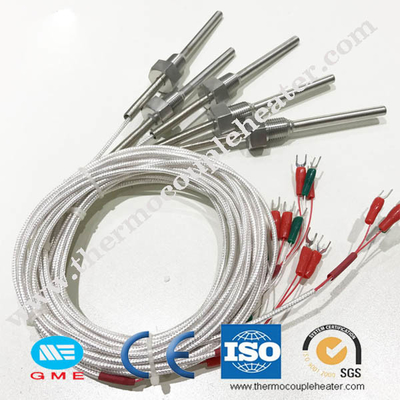

S Type Thermocouple With Cable Wire

Large Image : S Type Thermocouple With Cable Wire

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Temperature Range:	-200~650℃
Voltage:	12-480V	Probe Material:	Stainless Steel Or Nickel
Style:	PT100, PT1000, PT500, K, J	Pairs Quantity Of Element:	Simplex/duplex
Heating Element:	Nichrome Resistance	Mounting:	Thread/flange/none
Usage:	Temperature Sensor	Feature:	Economical
Types Of Terminal Box:	Anti-spray/water-proof
Highlight:	Cable Wire S Type Thermocouple , Nichrome Resistant S Type Thermocouple , Simplex Thermocouple RTD

S Type Thermocouple with Cable Wire

Description:

A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.

Model	Graduation mark	Temperature measured	Mounting& Fixing
WRK	K	0-1300°C	1.without Fixing Device 2.Threaded Connector 3.Movable Flange 4.Fixed Flange 5.Elbow Tube Connection 6.Threaded Cone Connection 7.Straight Tube Connection 8.Fixed Threaded Tube Connection 9.Movable Threaded Tube Connection
WRE	E	0-700°C
WRJ	J	0-600°C
WRT	T	0-400°C
WRS	S	0-1600°C
WRR	R	0-1600°C
WRB	B	0-1800°C
WRM	N	0-1100°C

S Type Thermocouple With Cable Wire 0

Application:

1. Widely Used In Science and Industry

2. Temperature Measurement for kilns

3.Gas Turbine Exhaust Application

4. Used For Diesel Engines and Other Industrial Processes

Payment Terms and Shipping:

Packing: Plastic bags and carton boxes

Shipping:

1.About 15 working days after receiving payment(based on actual quantity).

2.Tracking No.will be sent to you after delivery,and we will track the goods for you until you receive it.

Tag:

Contact Person: Mr. Frank

Tel: 15058960276

Fax: 86-27-86653728
