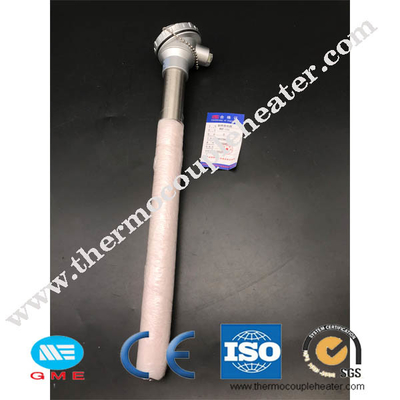

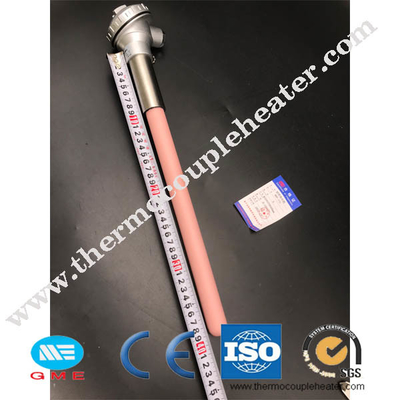

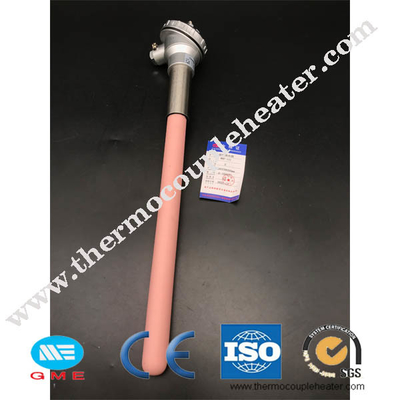

Industrial Furnace High Precision Sensor Probe Pt-Rh R B S K Type Thermocouple

Industrial Furnace High Precision Sensor Probe Pt-Rh R B S K Type Thermocouple

    • Industrial Furnace High Precision Sensor Probe Pt-Rh R B S K Type Thermocouple
    • Industrial Furnace High Precision Sensor Probe Pt-Rh R B S K Type Thermocouple
    • Industrial Furnace High Precision Sensor Probe Pt-Rh R B S K Type Thermocouple
  • Industrial Furnace High Precision Sensor Probe Pt-Rh R B S K Type Thermocouple

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Temperature Range: -200~650℃
    Voltage: 12-480V Probe Material: Stainless Steel Or Nickel
    Pairs Quantity Of Element: Simplex/duplex Heating Element: Nichrome Resistance
    Mounting: Thread/flange/none Function: Temperature Sensor
    Types Of Terminal Box: Anti-spray/water-proof Connection: Thread
    High Light:

    Pt Rh K Type Thermocouple

    ,

    High Precision Sensor Probe Thermocouple

    ,

    0.5mm R Type Thermocouple



    Industrial furnace high precious sensor probe pt-rh R B S K type thermocouple

    Description:



    Platinum rhodium 13- Platinum (R type thermocouple) is a precious metal thermocouple. The diameter of the double wire is stipulated to be 0.5mm, and the allowable deviation is -0.015mm. The nominal chemical composition of the positive electrode (RP) is platinum-rhodium alloy, which contains 13% rhodium and 87% platinum, and the negative electrode (RN) is pure platinum. The maximum long-term service temperature is 1300℃ and the maximum short-term service temperature is 1600℃



    Specification:



    1) S/B/R type pt-rh thermocouple
    2).wire diameter: 0.3 mm, 0.4 mm, 0.5 mm
    3).length:can be customized as for customer's requirement
    4).measuring range:0-1600 C
    5).fixed device:screw thread/flange
    6).terminal box: water-proof type, splash-proof type, anti-explosion type, connector type



    1).material: PtRh10-Pt, PtRh30-PrRh6, PtRh13-Pt
    2).use temperature:0-1300,0-1600
    3).max temperature: 1800°C
    4).experiment temperature: 0-1600°C
    5).thermal response Time:≤120 s

    Conductor

    material

    Wire

    Calibration
    Accuracy
    Class
    Class
    Accuracy
    Temperature range(℃)
    Accuracy
    Temperature range(℃)
    Ni Cr-Ni Si
    K


    1.5
    or
    0.4%t
    -40-1000


    2.5
    or
    0.75%t
    -40-1000
    Ni Cr Si-Ni Si
    E
    -40-1100
    -40-1200
    NiCr-Konstantan
    N
    -40-800
    -40-800
    Fe-Konstantan
    J
    -40-750
    -40-750
    Cu-Konstantan
    T
    1 or 0.4%t
    -40-350
    1.5 or 0.75%t
    -40-350
    Pt Rh 10-Pt
    S
    1 or 1+t-1100x0.003
    0-1600

    1.5
    or
    0.25%t

    0-1600
    PtRh 13-Pt
    R
    0-1600
    Pt Rh30-PtRh 6
    B


    600-1700

    Industrial Furnace High Precision Sensor Probe Pt-Rh R B S K Type Thermocouple


    Application:



    Thermocouples are widely used in science and industry; applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.
