| Place of Origin: | China |
| Brand Name: | GME |
| Model Number: | PT500 |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Packaging Details: | Exported Case Packing |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100,000 pcs |
| Type: | PT500 | Temperature Range: | -200℃ ~ 500℃ |
|---|---|---|---|
| Material: | Stainless Steel SS304 | Probe Size: | Ø 5 X 75mm |
| Wiring: | 2-wiring | Lead Cable: | Fiberglass + Stainless Steel Mesh |
| High Light: | PT500 Temperature Sensor,Customized RTD Temperature Sensor,2 Wire Thermocouple RTD |
||

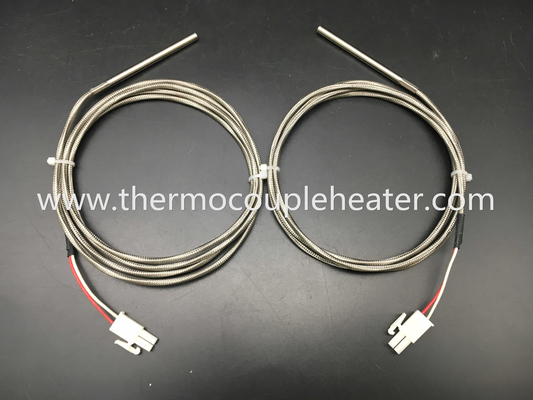

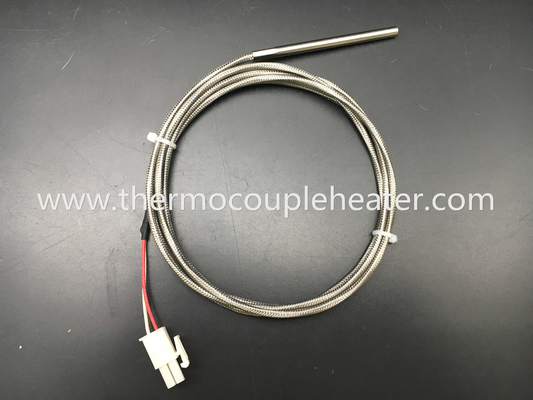

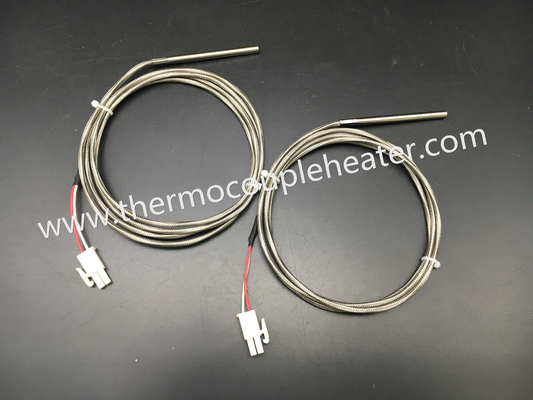

Customized RTD PT500 Temperature Sensor 2-Wire With Special Connector
Pt500 sensors are a rare type of platinum resistance thermometer. Pt refers to that the sensor is made from Platinum (Pt). 500 refers to that at 0°C sensor has a resistance of 500 ohms (Ω).
- Basic information
The Pt500-sensor is used for precise temperature monitoring applications, where errors in measurement have to be excluded. The linear relationship of the resistor to temperature, simplifies its use in many electronic applications.
The precision of the Pt500 allows its universal use for temperature monitoring, control, and switching in windings, bearings, machines, motors, transformers and many other industrial applications.
- Application
Temperature control of bearings
Conductor-rails
Machine parts and windings
- General function
The Pt500-sensor is a temperature dependent component. The resistance of the Pt500-sensor rises linearly with the temperature.
- Advantages
• Very precise measuring: measuring temperature ±0.5°C.
• Precise linear temperature-resistance characteristic.
• Low weight.
• Short response time
*Since 1995 we have been designing and manufacturing custom resistance temperature detector (RTD) assemblies in a wide variety of designs. We are solely focused on the manufacture of temperature sensors and have the ability to supply large volumes of bespoke Pt100 / Pt500 / Pt1000 sensors for one off or repeating contracts.
