Adjustable Ring Thermocouple Temperature Sensor Mounted On Nozzle Heater

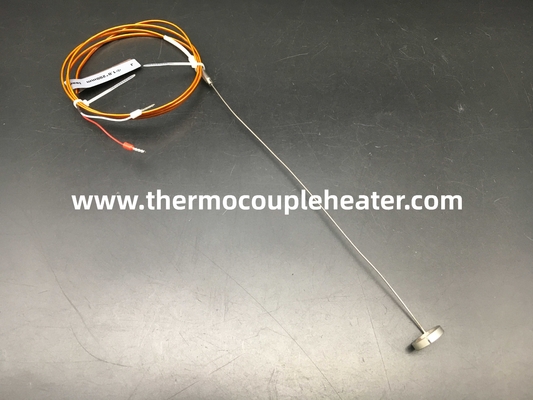

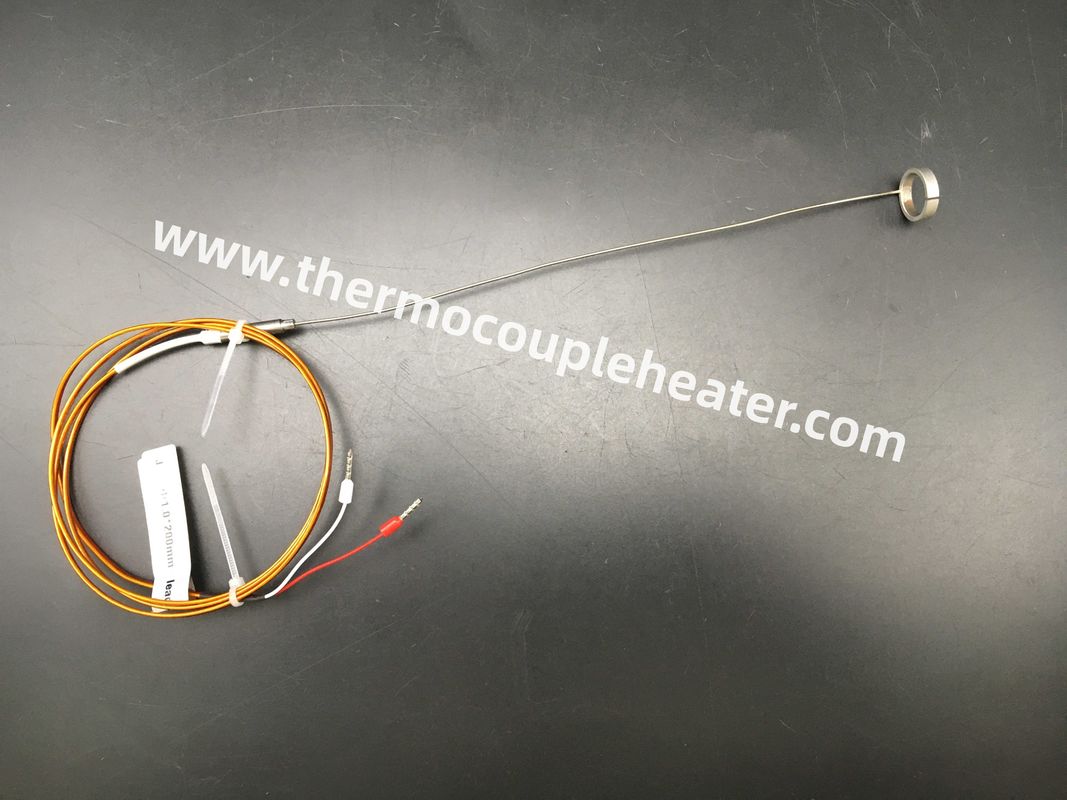

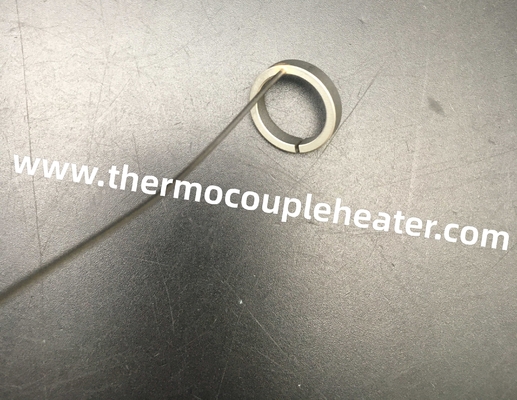

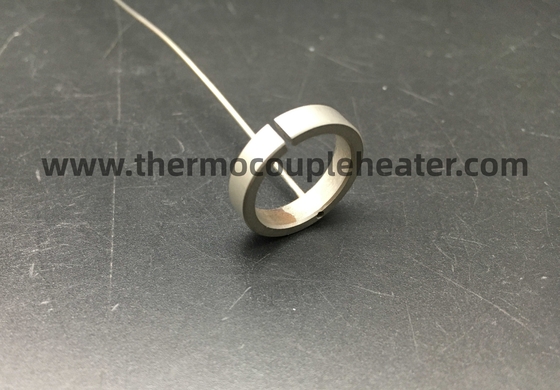

Large Image : Adjustable Ring Thermocouple Temperature Sensor Mounted On Nozzle Heater

Product Details:

Place of Origin:	China
Brand Name:	GME
Model Number:	K/J

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Packaging Details:	Standard Exporting Cases
Delivery Time:	5-10 working days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100,000 pcs per month

Contact Now

Detailed Product Description

Ring Material:	Stainless Steel	Porbe Material Diameter:	Stainless Steel
Calibration:	J / K, Or Customized	Lead Wire Material:	Kapton, Or Customized
Temperature Range:	-30~+400℃	Application:	Nozzle Temperature Measurement
Highlight:	Adjustable Ring Thermocouple Temperature Sensor , Nozzle Heater Ring Thermocouple Temperature Sensor , 304SS Thermocouple RTD

Custom Adjustable Ring Thermocouple Temperature Sensor Mounted On Nozzle Heater

Product Description:

Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers. A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the temperature.

Specification:

Ring Size	Customized
Calibration	K / J
Sheath Material	304 Stainless Steel
Junction	Ungrounded , Grounded
Cable Insulation	SS mesh / Fiberglass / PTFE / Kapton,customized
Cable length	1 M, 2M, 5M...., customized

Feature:

1. Adjustable ring, simple assembly and easy to change;

2. Fast heat response time;

3. High precision measurement;

4. Long service life.

Application:

Mounted on a microtube coil heater to measure the temperature of the hot runner nozzle.
