Mineral Insulated Cable Heater For High Temperature Pipe Heating

Mineral Insulated Cable Heater For High Temperature Pipe Heating

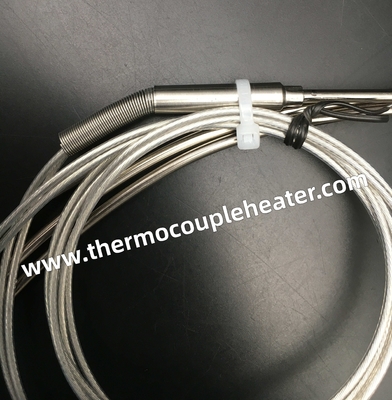

    • Mineral Insulated Cable Heater For High Temperature Pipe Heating

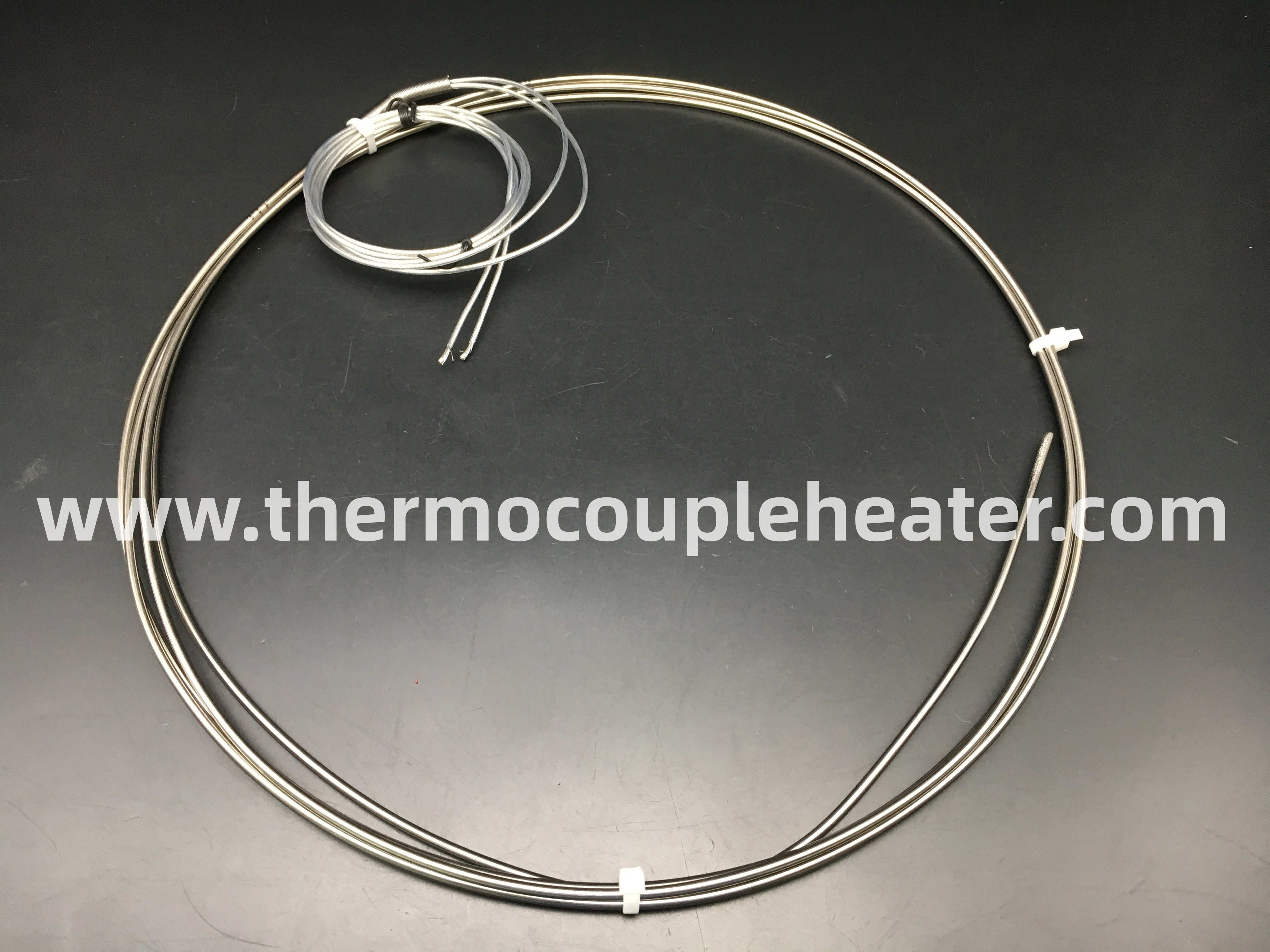

    • Mineral Insulated Cable Heater For High Temperature Pipe Heating

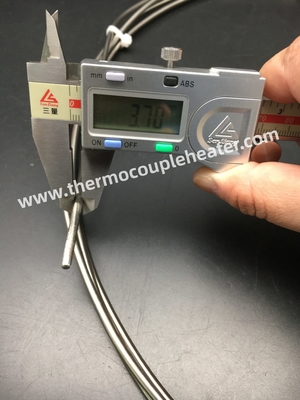

    • Mineral Insulated Cable Heater For High Temperature Pipe Heating
  • Mineral Insulated Cable Heater For High Temperature Pipe Heating

    Product Details:

    Place of Origin: China
    Brand Name: GME

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pieces
    Packaging Details: Standard exporting packing
    Delivery Time: 7-10 working days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 10,000 pieces per month
    Contact Now
    Detailed Product Description
    Conductor Material: Ni80Cr20 Insulator: MgO
    Sheath Material: Stainless Steel, Inconel, Etc. Core Number: 1-6 Cores
    Outer Diameter: 0.5-8.0mm Usage: Pipeline Heating
    High Light:

    Mineral Insulated Cable Heater

    ,

    Ni80Cr20 Mineral Insulated Cable Heater

    ,

    MgO Mineral Insulated Thermocouple Cable

    Mineral Insulated Cable Heater Used For High Temperature Pipe Heating



    1. Overview



    The Mineral Insulated Heating Cable is a high-density solid body after multiple stretching, made of the metal tube as the outersheath tube, the electric heating alloy wire as the heating element, and the high-purity inorganic oxide as the insulating material.





    2. Features



    Due to its special structure, it has the following characteristics:

    (1) Because its constituents are all composed of non-combustible inorganic substances. Therefore, the product is fireproof and flame-retardant. It does not produce toxic gas, and the cable has a reliable pipe seal and is well grounded, which is especially suitable for various explosion-proof places.

    (2) Since the magnesium oxide insulation material can remain stable when the temperature is as high as 1800 degrees Celsius, the temperature limit of the cable itself is the highest temperature that the core and the metal outer sheath can withstand.

    (3) Since the magnesium oxide insulating layer of the product is an inorganic substance, the core and the outer sheath are made of metal, so the aging problem is fundamentally solved, and the service life of the product is greatly extended. The service life can reach decades.

    (4) Different outer sleeves can be used, which are resistant to corrosion by oils, solvents and most acids, and have good chemical stability.

    (5) The product has good mechanical properties, strong structure, and can withstand twisting, squeezing, bending, pulling, friction, and heavy handling.

    (6) The heating method of the cable is a series resistance electric heating element, so the heating is uniform and the temperature difference over the entire length is extremely small.

    (7) Low temperature resistance, no brittle break during construction at low temperature, and easy construction and maintenance in winter.



    3. Structure chart



    Mineral Insulated Cable Heater For High Temperature Pipe Heating



    4. Structure data:

    Mineral Insulated Cable Heater For High Temperature Pipe Heating



    5. Application:



    Widely used in the following occasions:

    1. Material storage containers that need to be heated in the chemical industry.

    2. Heating of internal and external pipelines of crude oil in the petroleum industry.

    3. Heating of containers and pipelines of various power stations.

    4. Natural gas tank water seal anti-freezing heating, catalytic gas reactor heating, anti-freezing heating of pipeline valves, heating of natural gas by-products.

    5. Heating of containers, pipelines and nozzles for food and general industries.

    6. Heating of plastic and rubber extrusion heads or molding machinery.

    7. Anti-freezing heating in gardening and agricultural heating rooms.

    8. Accelerated curing of prefabricated concrete floors and walls in the construction industry and pre-drying of refractory bricks, heating of walls, floors and ceilings of various types of houses.

    9. Heating of antifreeze facilities in the refrigeration industry.

    10. Anti-ice and snow accumulation heating for airport runways, general roads, ramps, steps, bridges and tunnels, football fields, etc.
