Brass Nozzle Spring Coil Heaters For Hot Runner System With Thermocouple J

Brass Nozzle Spring Coil Heaters For Hot Runner System With Thermocouple J
Brass Nozzle Spring Coil Heaters For Hot Runner System With Thermocouple J Brass Nozzle Spring Coil Heaters For Hot Runner System With Thermocouple J Brass Nozzle Spring Coil Heaters For Hot Runner System With Thermocouple J Brass Nozzle Spring Coil Heaters For Hot Runner System With Thermocouple J

Large Image :  Brass Nozzle Spring Coil Heaters For Hot Runner System With Thermocouple J

Product Details:
Place of Origin: China
Brand Name: GME
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: cartons， pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Contact Now
Detailed Product Description
Power Source: Electric Dimension: Customized
Voltage: 110-240V / 50-60Hz Warranty: One Year
Power: 195W-690W Style: Straight Or Coil
Heating Wire Material:: Cr20Ni80 Coiling Scheme: Tangential, Radial Exits, Axial
Material: Brass Or Stainless Steel Color: Copper
Application: Widely Used Height: 10mm~200mm
Highlight:

Cr20Ni80 Spring Coil Heaters

,

Thermocouple J Coil Heaters 240V

,

200mm Hot Runner Coil Heater

Brass Nozzle Spring Coil Heaters For Hot Runner System With Thermocouple J

Description:



1) Hot runner coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape.



2) Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.



Specification:



1. Flexible cold section
2. Higher watt density than a cable heater
3. Resistance wire centered for more repeatable heat profile
4. Sealed transition head for moisture resistant applications available

Product Paramenters
Sheath material
304SS or 316L
Range of working voltage
12V to 440V
Built-in thermocouple
with or without J /K TC(Available)
Wattage
200-3000w( 6.5W/CM2 ) + 5% tolerance
Inner heating element
NiCr8020
Insulation
High pure Mgo
Tube color
sliver or annealed black
Coil style Length
40-200mm (+ 0.5mm)
TC optional
type J, K, E and T
TC Tolerance
±10℃
Surface treatment
Original metal bright
Lead and sleeve
PTFE ,Fiberglass,Kevlar etc
Heater cross section optional
4.2x2.2mm, 3x3mm

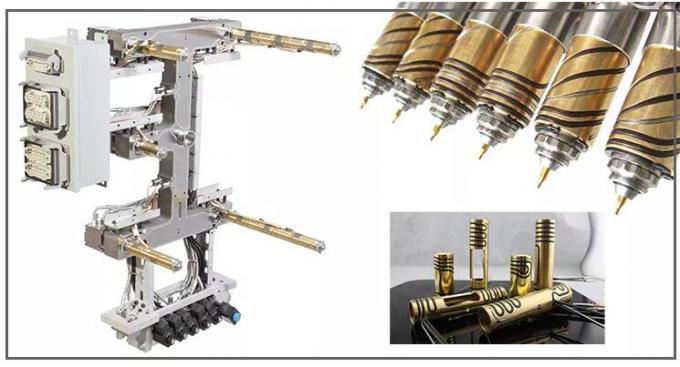

Application:



1.Injection molding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection Molds

5. Injection & Blow Moulding Machine Nozzles
6. PET preform & Thin wall container Moulds
7. Hot runner Manifolds



Brass Nozzle Spring Coil Heaters For Hot Runner System With Thermocouple J 0
