Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Packaging Details: | Standard exporting package |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, Western Union, T/T, Paypal |
| Supply Ability: | 20,000 pcs per month |
| Sheath Material: | Stainless Steel | Heating Wire: | Nichrome |
|---|---|---|---|
| Isulation Material: | MgO | Outline: | Flat, Round, Square Shape |
| Cross Section: | 2.2 X 4.2mm, 3.2 X 1.8mm, 3x3mm, Dia 1.8mm, Etc | Unheating Length: | 35-50mm, Or Customized |
| Lead Wire Sheath: | Fiberglass Or Steel Mesh, Customized | Exits: | Axial, Tangential, Radial, Special Exits |
| Built-in Thermocouple: | J Or K | Sheath Temperature: | Max. 700℃ |
| High Light: | Hot Runner System Spiral Heater,Built In Thermocouple J Spiral Heater,MgO Material Coil Heaters |
||

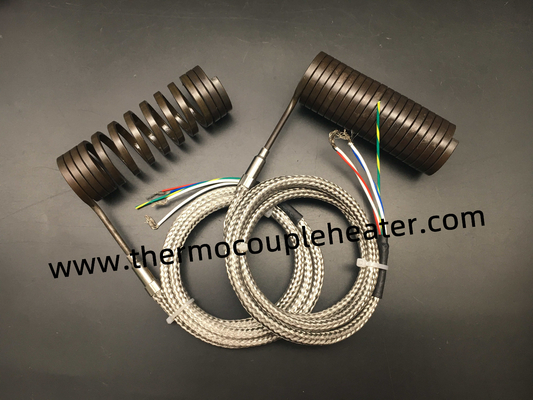

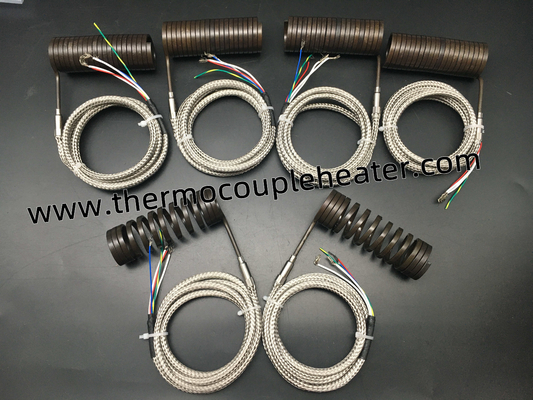

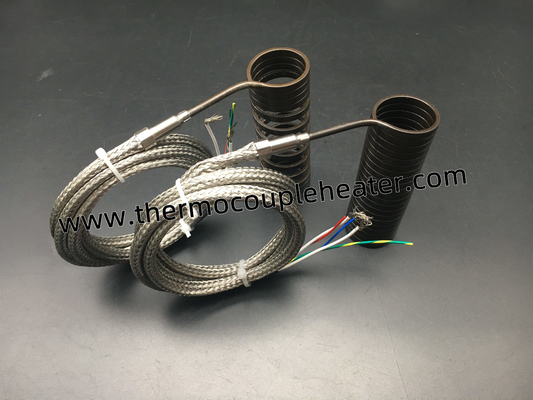

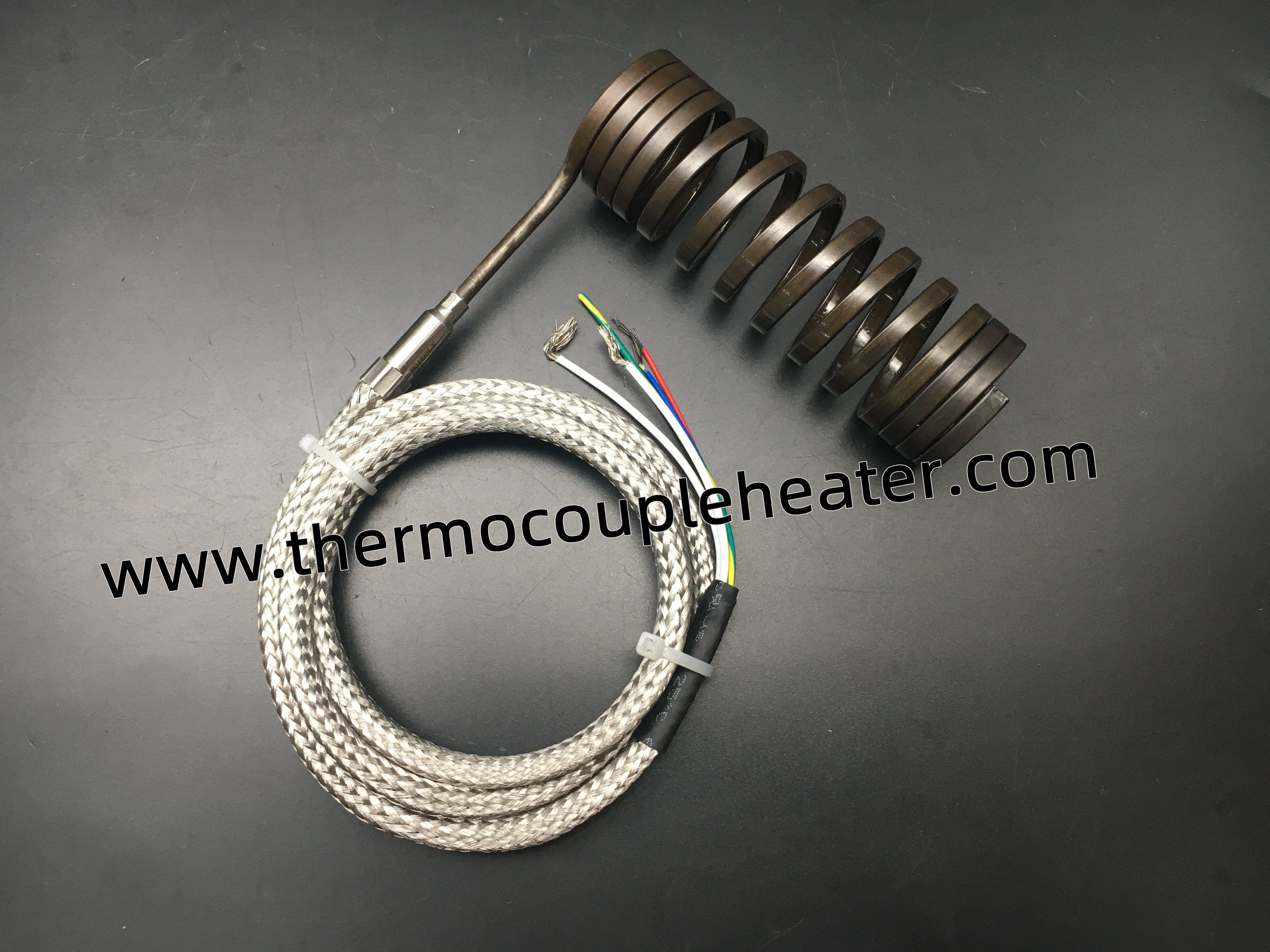

Spiral Heater For Hot Runner System With Built-In Thermocouple J
1. Introduction
Hot runner heater is an advance concept of thermal engineering which has a construction similar to high watt density cartridge heaters.
Hot runner heater are also known as high performance tubular heaters or cable heaters. The basic construction of these heaters consist of compacted MgO, high temperature resistance wire and Chrome Nickel Steel tube.
Hot runner heater can be constructed with or without built in thermocouples. They are usually installed where space available for heating is limited and are widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines etc
All coil heaters are available with various exits and connections to suit the respective application.
2. Features
Standard sizes available with various cross section
Various Watt Density options available.
Robust Design with Choice of Terminal Exits
Available with built in Thermocouple
Designed for even heat profile.
Precision fit on Hot Runner Nozzles & Manifolds.
Highly Non-corrosive.
Maximum heat transfer due to more contact area.
Advanced Thermal Engineering.
3. Coil exits
4. Application
- Hot runner system
- Plastic industry
- Packaging machinery
- Medical equipment
- Foundry technology
- Numerous other thermal processes
5. Order, please advise
- Dimension
- Wattage and voltage
- With/wtithout J or K thermocouple
- Heated length
- Other your additional details
