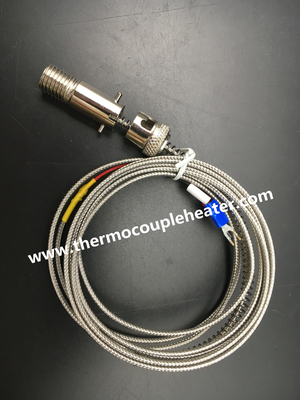

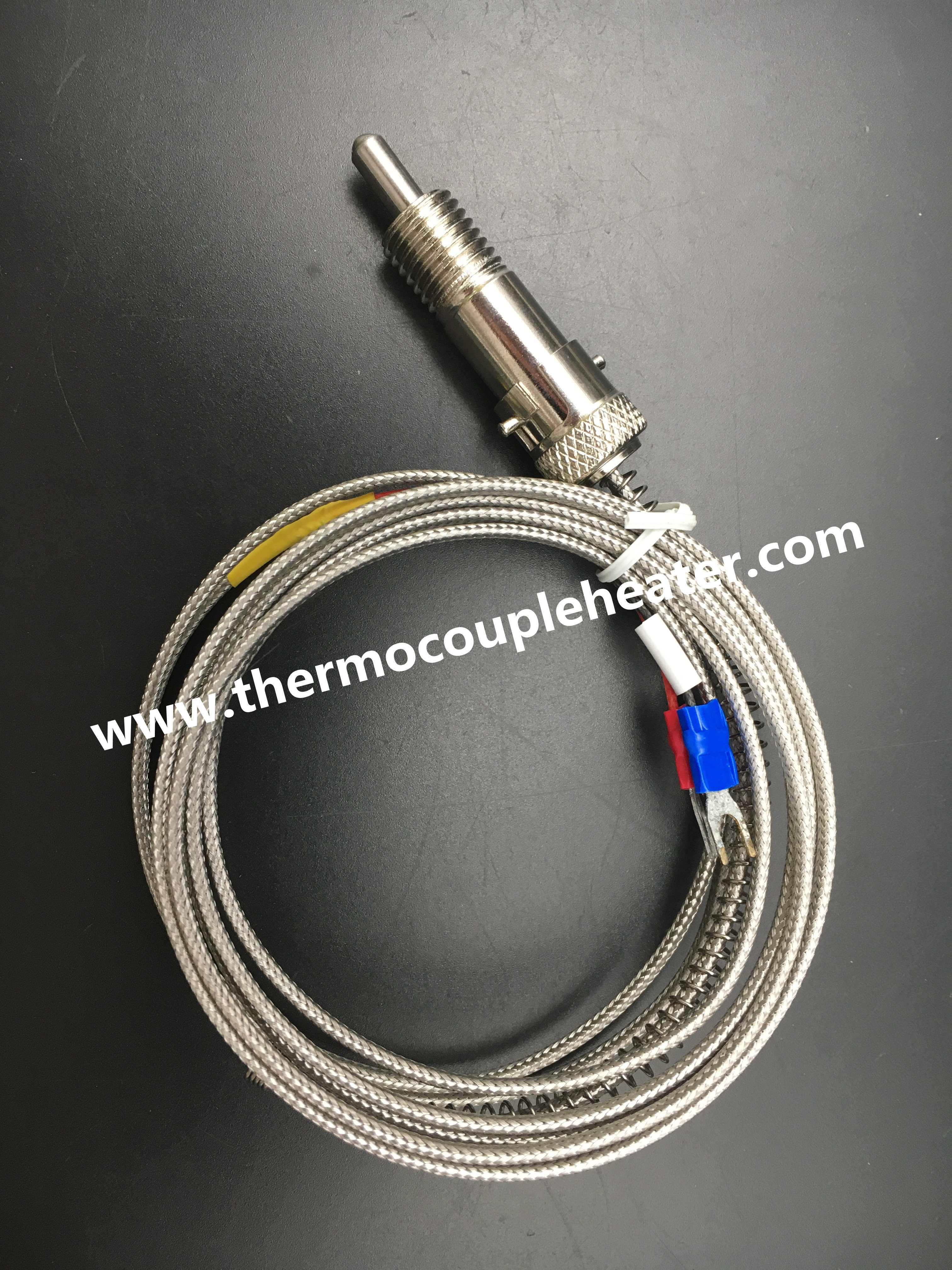

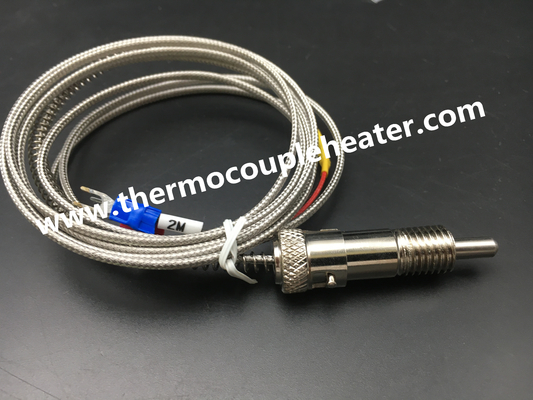

Temperature Sensor Bayonet Style Thermocouple Type J / K With 2m Cable

Temperature Sensor Bayonet Style Thermocouple Type J / K With 2m Cable
Temperature Sensor Bayonet Style Thermocouple Type J / K With 2m Cable Temperature Sensor Bayonet Style Thermocouple Type J / K With 2m Cable Temperature Sensor Bayonet Style Thermocouple Type J / K With 2m Cable

Large Image :  Temperature Sensor Bayonet Style Thermocouple Type J / K With 2m Cable

Product Details:
Place of Origin: China
Brand Name: GME
Model Number: K/J
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Packaging Details: Standard Exporting Cases
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000 pcs per month
Detailed Product Description
Model: Bayonet Compression Spring Type Calibration: K / J, Or Customized
Sheath Material: Stainless Steel Cable Insulation: Fiberglass With Metal Mesh
Temperature Range: 0~400℃ Application: Temperature Measurement Of Hot Runner System
Highlight:

Temperature Sensor Bayonet Style Thermocouple

,

Bayonet Style Thermocouple Type J

,

2m Cable Thermocouple RTD

Temperature Sensor Bayonet style Thermocouple Type J / K with 2m Cable





Product Description:



Bayonet Style Thermocouples are available off-the-shelf in J, K, T, or E Type Thermocouple in both straight thru and right angle tip configurations. Wide Variety of Immersion Lengths, Styles and Mounting Arrangements Are Available,High accuracy,Easy installation, low cost.




Specifications:



Calibration

Standard limits of error (Type K,J,T,E,N)

Special limits or error (Type K,J,T,E,N)



Sheath Material

304 Stainless Steel

316 Stainless Steel

Inconel 600



Junction

Ungrounded , Grounded



Cable Insulation Description

24 Gage, Stranded , Kapton

24 Gage, Solid, Kapton

24 Gage, Stranded,

24 Gage,Solid,

24 Gage,Stranded, Fiberglass

24 Gage, Solid ,Fiberglass

Termination type

50mm split leads and 15mm Bare Ends.

50mm split leads and spade lugs.

Standard Male Plug (425F)

Standard Female Jack(425F)

Mini Male Plug(425F)

Mini Female Jack(425F)

Hi Temp Male Plug(800F)

Hi Temp Female Jack(800F)





Feature:



1. Reed thermal components, good seismic performance;

2. Simple assembly and easy to change;

3. Large measuring range (200 °C ~ 1300 °C, 270 °C ~ 2800 °C under special circumstances ).

4. Fast heat response time;

5. High temperature can reach 2800 degrees;

6. High precision measurement;

7. High mechanical strength and good compression performance;

8. Long service life.
