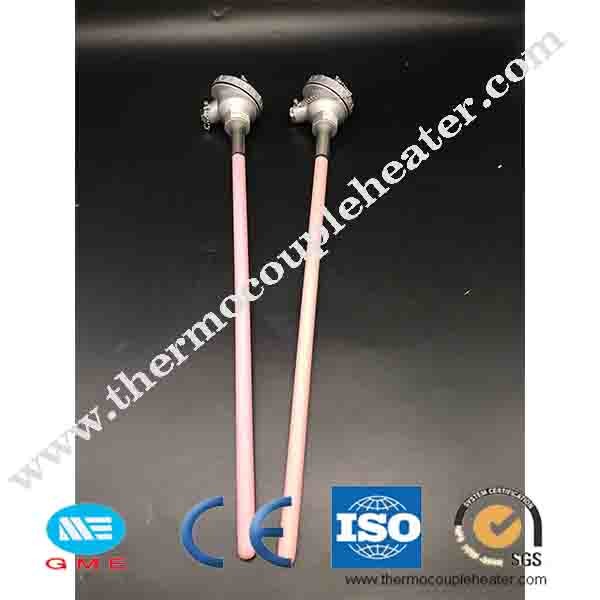

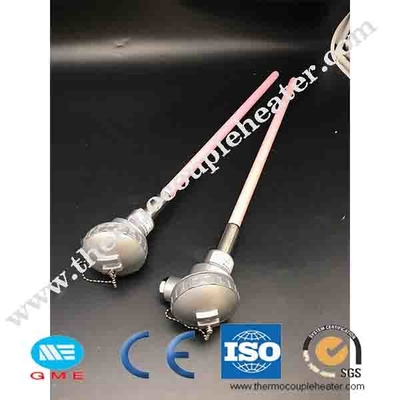

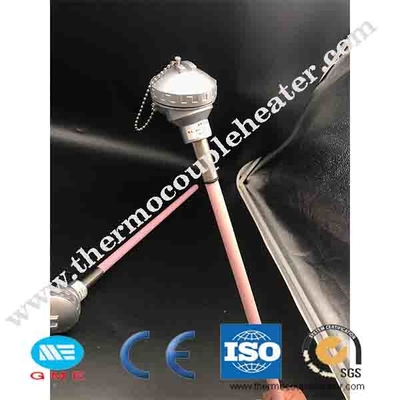

Type S / B / R High Temperature Noble Metal Thermocouple Sensor

Large Image : Type S / B / R High Temperature Noble Metal Thermocouple Sensor

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Temperature Range:	-200~650℃
Voltage:	12-480V	Probe Material:	Stainless Steel Or Nickel
Pairs Quantity Of Element:	Simplex/duplex	Heating Element:	Nichrome Resistance
Mounting:	Thread/flange/none	Function:	Temperature Sensor
Types Of Terminal Box:	Anti-spray/water-proof	Connection:	Thread
Highlight:	High Temperature Noble Metal Thermocouple Sensor , Type S Noble Metal Thermocouple Sensor , Type B Thermocouple RTD

Type S/b/r High Temperature Noble Metal Thermocouple Sensor

Description:

A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity.

Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation

Specification:

Conductor Material	Type	Graduation	Continuous temperature	Short-term temperature
PtRh10-Pt	WRP	S	0-1300C	0-1600C
PtRh30-PtRh6	WRR	B	0-1600C	0-1800C
PtRh13-Pt	WRQ	R	0-1300C	0-1600C
NiCrSi-NiSi	WRM	N	0-1000C	0-1100C
NiCr-NiSi	WRN	K	0-900C	0-1000C
NiCr-Konstantan	WRE	E	0-600C	0-700C
Fe-Konstantan	WRF	J	0-500C	0-600C
Cu-Konstantan	WRC	T	0-350C	0-400C

Type S / B / R High Temperature Noble Metal Thermocouple Sensor 0

Application:

It is usually connected with display meter, recording meter and computer, etc. to directly measue temperature of liquid, vapor, gas and solid surface ranging from 0°C to 1300C during various production process.
