Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
| Style: | K, J, S | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | Connection: | Thread |
| High Light: | PT100 Flexible Thermocouple Probe,Flexible Thermocouple Probe With 1000mm Wire,1000mm Wire K Type Thermocouple Probe |
||

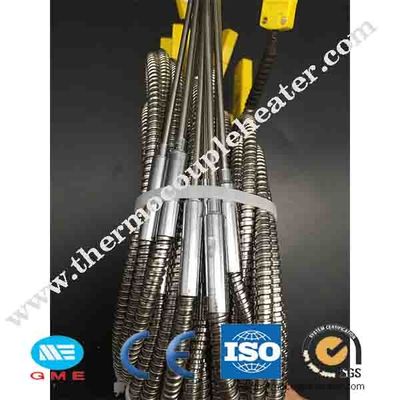

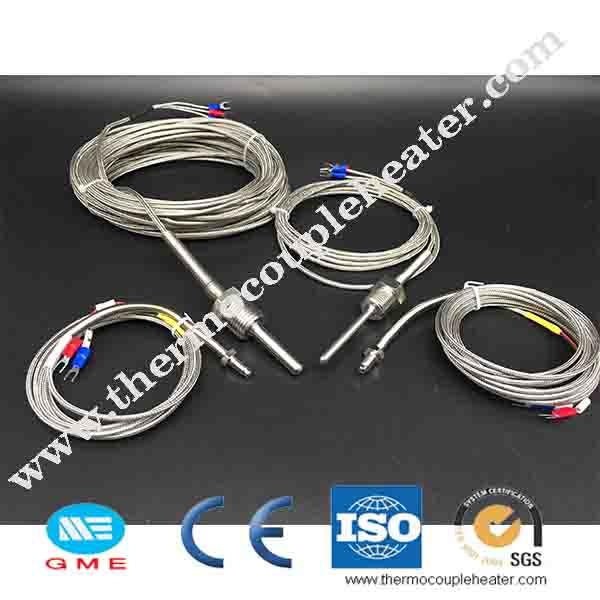

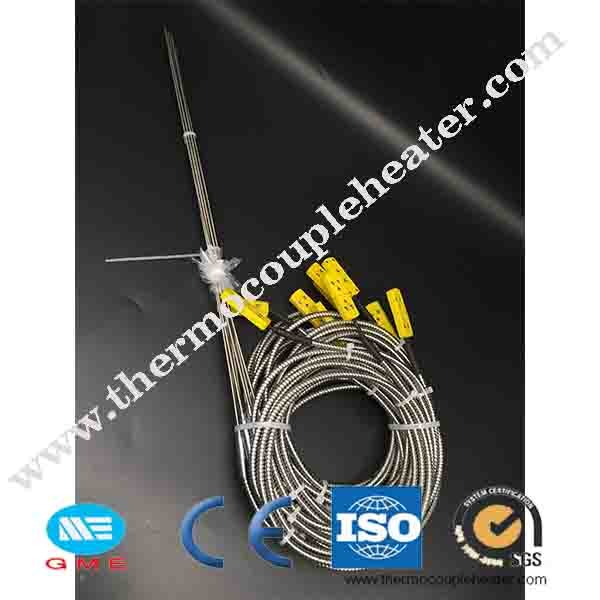

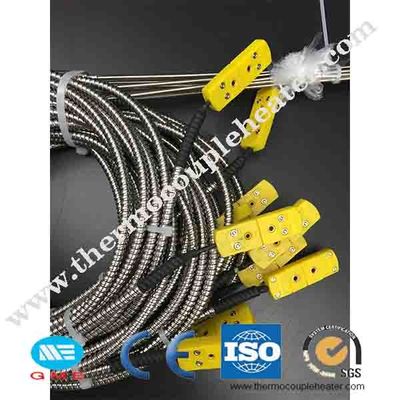

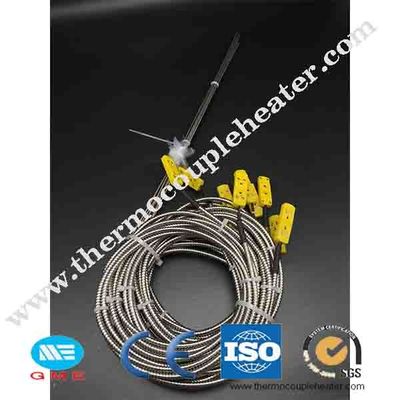

K/J/PT100 type Flexible Thermocouple Probe with insulated high temperature lead wire
Description:
Name: Small temperature sensor probe
Type: Thermocouple / Thermal Resistance
Type: K / E / J / T / S / R / Pt100 / Cu50 / Pt1000, etc.
Material: 304/316/316l/310s/3039/Inconel
Accuracy level: 1 level / 2 levels / A class / B class
Wire: length customization (wire fiber woven, metal braid, PTFE, silicone, PVC, etc.)
Certification: ISO9001, CE, GB, Rohs, ASTM
Color: Customizable
Uses: industrial / household
Applicable industries: agriculture, food processing, metallurgy, fisheries, chemicals, energy, aerospace, etc.
Specification:
It can direct measurement of 0-1100 degrees within the scope of the temperature, applicable to all kinds of plastic extruder light textile and food industry etc, the products have exterior smaller thermal response speed, simple structure, convenient use, etc.
| Model | WRNK-191/WRFK-191/WZPK-191 |
| Type | K/J//PT100 |
| Probe diameter | 0.5-8mm |
| Probe length | 10-30000mm |
| Probe material | 321SS 316SS 2520 INCONEL600 |
| Measure temperature | 0-1000c |
| Wire length | 1000mm or customized |
| Wire material | Fiberglass with stainless steel shield |
