Penetration K Type Thermocouple Probe Diameter 0.5 1.0 1.5mm With Pointed Tip

Penetration K Type Thermocouple Probe Diameter 0.5 1.0 1.5mm With Pointed Tip

Penetration K Type Thermocouple Probe Diameter 0.5 1.0 1.5mm With Pointed Tip

Product Details:

Place of Origin: China
Brand Name: GME
Model Number: K/J

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Packaging Details: Standard Exporting Cases
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Calibration: K / J, Or Customized Probe Size: Diameter 0.5/1.0/1.5mm, Customized
Sheath Material: Stainless Steel / Inconel Junction: Grounded / Ungrounded
Terminal: Mini Or Standard Connector Application: Measure Temperature Of Meat, Rubber, Semi-solid Products
High Light:

K Type Thermocouple Probe Diameter 0.5mm

,

K Type Thermocouple Probe Diameter 1.0mm

,

Diameter 1.5mm Thermocouple Probe

Penetration K-Type Thermocouple Insertion Probe With Pointed Sharp Tip





Product Description:



Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers. A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the temperature.




Feature:

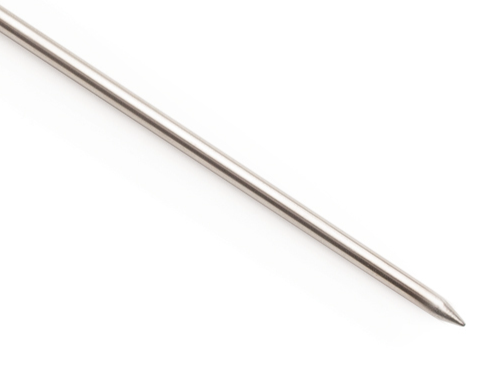

The Penetration K-Type Thermocouple Probe is designed to measure the temperature of semi-solids and high-temperature samples. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The pointed tip construction offers a 15-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure surfaces up to 900°C (1650°F).

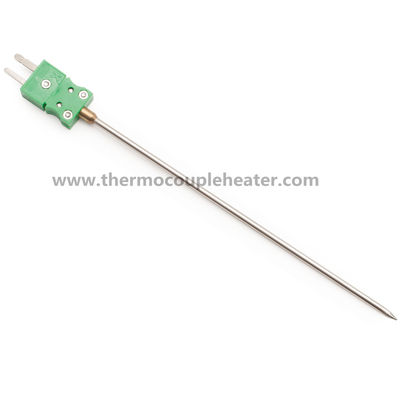

Penetration K Type Thermocouple Probe Diameter 0.5 1.0 1.5mm With Pointed Tip





Specification:





Probe Outside Diameter 0.5mm, 1.0mm, 1.5mm
Calibration

Standard limits of error (Type K,J,T,E,N)

Special limits or error (Type K,J,T,E,N)



Sheath Material

304 Stainless Steel

316 Stainless Steel

Inconel 600



Junction

Ungrounded , Grounded



Cable Insulation Description

24 Gage, Stranded , Kapton

24 Gage, Solid, Kapton

24 Gage, Stranded,

24 Gage,Solid,

24 Gage,Stranded, Fiberglass

24 Gage, Solid ,Fiberglass

Termination type

50mm split leads and 15mm Bare Ends.

50mm split leads and spade lugs.

Standard Male Plug (425F)

Standard Female Jack(425F)

Mini Male Plug(425F)

Mini Female Jack(425F)

Hi Temp Male Plug(800F)

Hi Temp Female Jack(800F)





Application:



With the pointed tip we have many customers who use this probe for cooking in their smoker, barbecue, oven or grill. The stainless steel probe, handle and cable can be easily cleaned and it is very durable.
