Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Model Number: | No |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD10 |
| Packaging Details: | paper carton |
| Delivery Time: | 8-10 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Voltage: | 230V, 12V 24V 110V 230V | Resistance Wire: | Ni Cr 80-20 |
|---|---|---|---|
| Insulation Material: | MgO/Stainless Steel | Application: | Heater Parts |
| Power: | 100-2000w | Max Temperature: | 700°C |
| High Light: | MgO Insulation Brass Band Heater,230V Brass Band Heater,MgO Insulation Hot Runner Nozzle Heater |
||

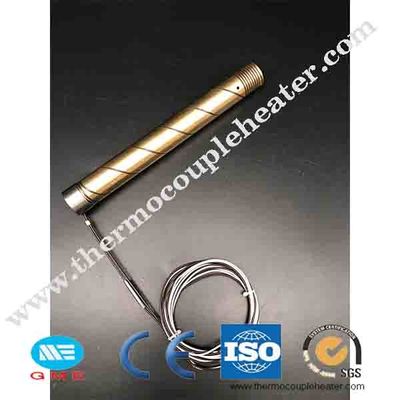

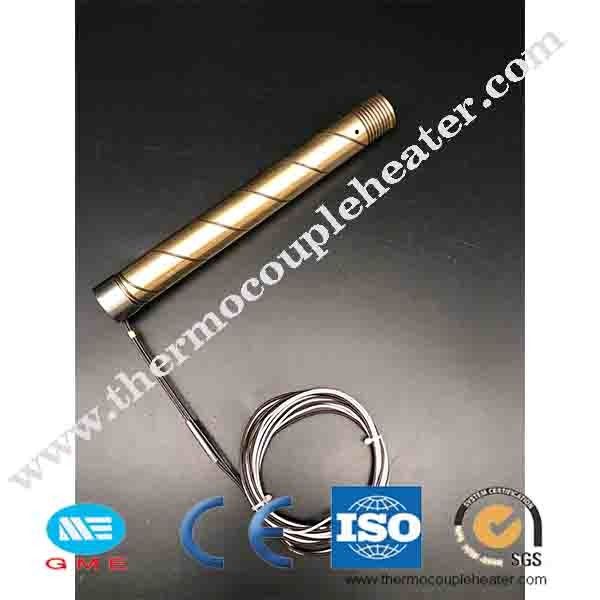

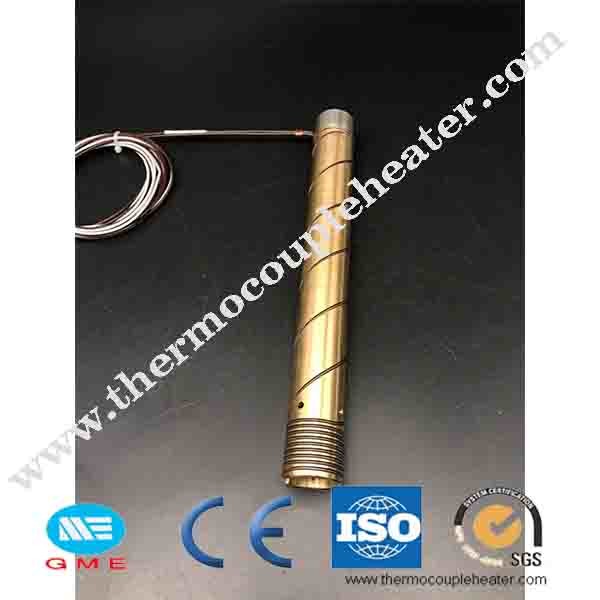

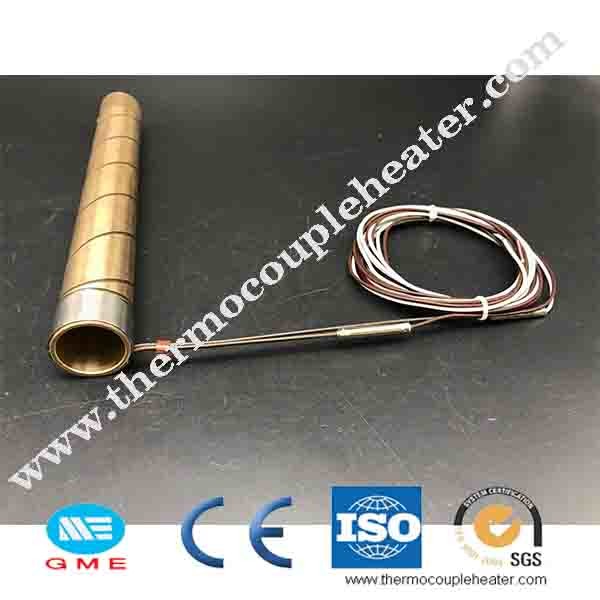

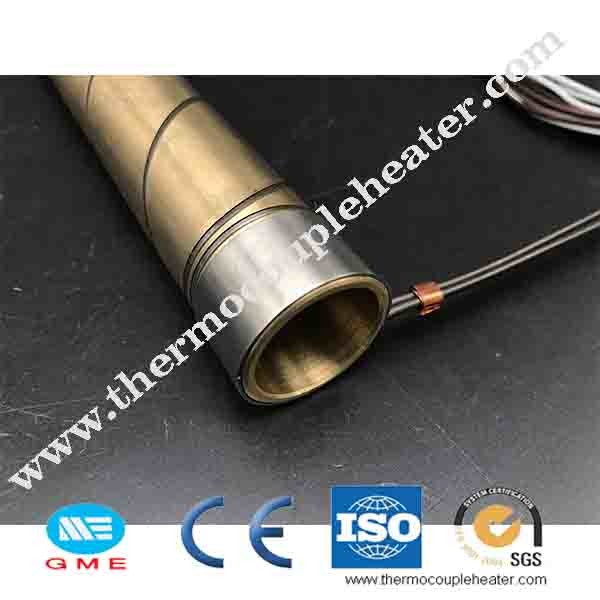

Hot runner brass pipe heater nozzle heater pressed with coil heater
Description:
Brass band heater is mainly composed of brass tube to seal the heating element, the heating element is made of imported nickel chrome wire and high temperature resistant mica plate.They are very resistant to wearing and shocks. High watt-density per square centimeter allows a fast and safe reaching of required working temperature. brass band heaters are mainly used for extrusion and casting moulding machines. It has a wide application in various machinery .brass band heater are available in a variety of designs and styles suitable for different applications.
Features of brass band heater :
high heat retention,
long lifetime,
Various Heater terminations.
Products can be customized
Max watt density: Aluminum alloy - 35 w/sq in on heater elements. Brass alloy - 45 w/sq in on heater elements.
Max temp: Aluminum alloy - 375 °C, Brass alloy - 650 °C
Installation and use precautions:
1. The location of the heating element installed surface should be smooth without bump phenomenon.
2. The heating element should be placed dry to avoid flooding to affect its insulation performance.
3. The installation should first check the installation location and heating element specifications are consistent.
4. After installation should be checked within the six-legged bolts, terminal bolts and wiring bolts are locked, so as not to affect the thermal expansion and contraction of the product life.
5. This product should be used in the specified voltage, consider some areas of night voltage changes, the proposed use of regulators, so as not to affect the efficiency and life of the product.
