Tubular Hot Runner Spring Coil Heater 12x55mm

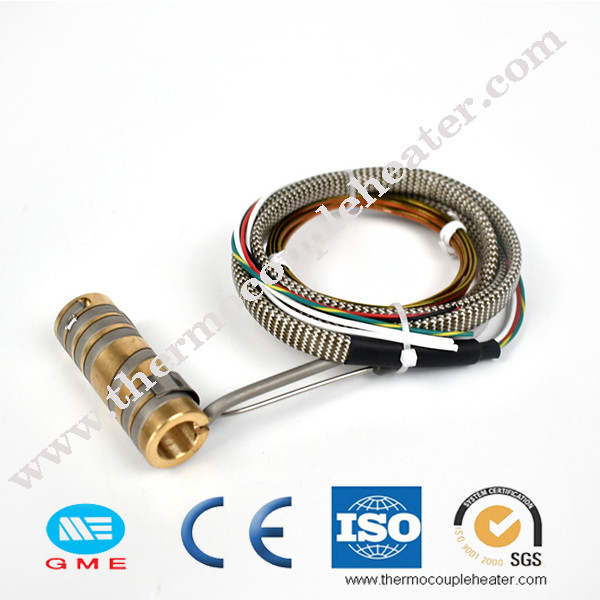

Large Image : Tubular Hot Runner Spring Coil Heater 12x55mm

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	120v 220v 240v 380v, 220V	Sheath Material:	Stainless Steel Or Nickel
Cross Section:	3.0 X 3.0, 3.30 X 3.30, 3.5 X 3.5, 4 X 4,4.20 X 2.20,4.20 X 2.50	Style:	Straight Or Coil
Lead Wire:	, Fiberglass , Metal Mesh	Coiling Scheme:	Tangential, Radial Exits, Axial
Material:	Brass And Stainless Steel	Application:	Manifolds, Hot Runner/ Injection
Color:	Silver Or Fully Black
Highlight:	Hot Runner Spring Coil Heater , Spring Coil Heater 12x55mm , Tubular Hot Runner Coil Heater

GME 12*55mm Electric Heating Element Hot Runner Spring Coil Heater

Description:

Coil heater is one kind of tubular electric heating elements. These components are mainly used in aerospace, petrochemical, rubber and plastics industries, and the like, it can be used to heat still or flowing air, water, oil,nitrate, alkali and other kinds of liquid. It can also be used to melt light metal or to heat metal moulds. It has advantages such as simple structure, long heat lifetime, high thermal efficiency, reliable and safe operation and so on.

The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.

Specification:

Product name	Industrial electric spring hot runner coil copper brass sealed nozzle mica band heater for plastic machinery
Insulation Material	High Pure MgO
Resistance Wire	Cr20Ni80
Die Electrical Strength	800V A/C
Resistance tolerance	10%
Heating coil I.D	8mm~40mm
Max power density	9W/cm²
Cross sections optional	2.2x4.2mm 3x3mm 3.4x3.4mm 3.5x3.5m 4x4mm, any other cross-sections can be supplied on request
High voltage stability test	Less than 0.5mA leak under 1000V for 30 seconds
Cold zone length	50mm standard, and other sizes available
D of cold zone adaptor	8x30mm and 6.35x25mm optional
Standard leads	1000mm black PTFE wire over 300℃
Working life	10,000 hours under less than 400℃ minus and 2000 hours at 700℃
Surface treatment	Silver sandblasted or black

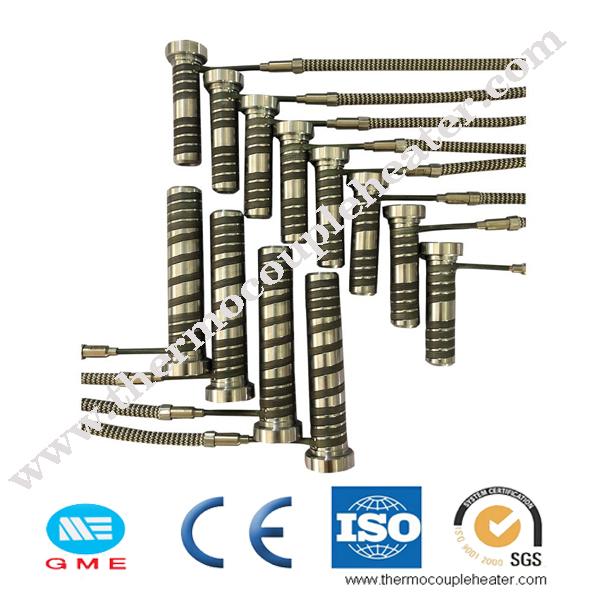

Tubular Hot Runner Spring Coil Heater 12x55mm 0

Design Features:
1. High temperatures resistance

2. Unheated straight section
3. Precise temperature control

4. Fast response
5. Choice of lead orientation

6. Choice of lead protection
7. Longer heat lifetime
8. Round, square and rectangular cable
9. High watt densities
10. Rugged, durable construction
11. Available with built-in thermocouple
12. Made to customers' requirements

Tag:

Contact Person: Mr. Frank

Tel: 15058960276

Fax: 86-27-86653728
