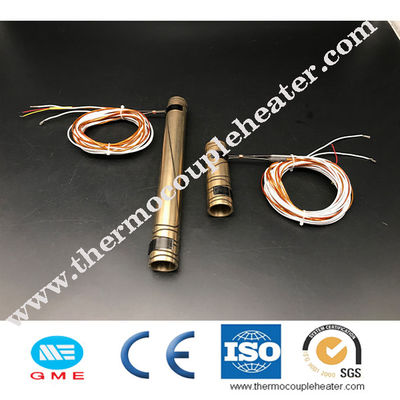

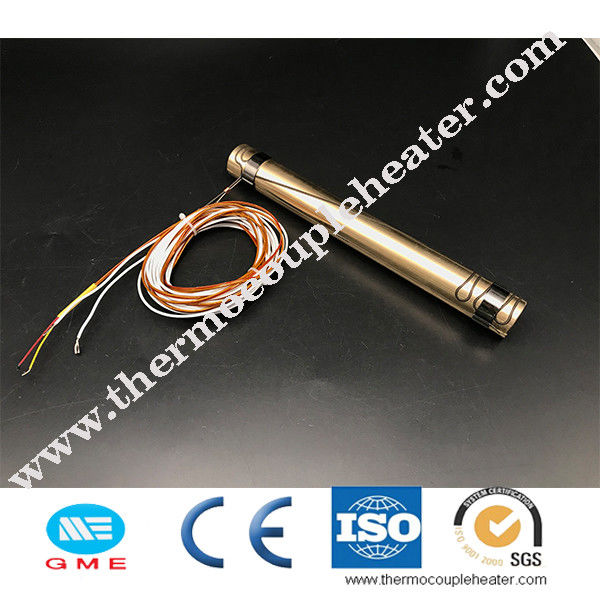

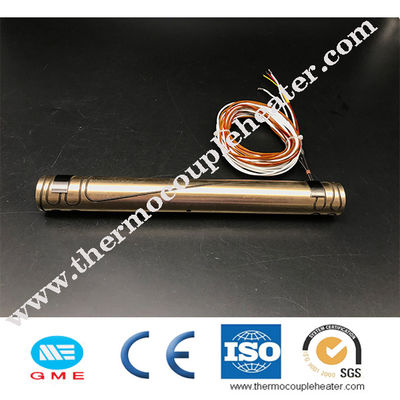

ID34.1x120mm Brass Hot Runner Coil Heater 240V 380V

Large Image : ID34.1x120mm Brass Hot Runner Coil Heater 240V 380V

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	120v 220v 240v 380v, 220V	Sheath Material:	Stainless Steel Or Nickel
Cross Section:	3.0 X 3.0, 3.30 X 3.30, 3.5 X 3.5, 4 X 4,4.20 X 2.20,4.20 X 2.50	Style:	Straight Or Coil
Lead Wire:	, Fiberglass , Metal Mesh	Coiling Scheme:	Tangential, Radial Exits, Axial
Material:	Brass And Stainless Steel	Application:	Manifolds, Hot Runner/ Injection
Color:	Silver Or Fully Black
Highlight:	ID34.1x120mm Hot Runner Coil Heater , Hot Runner Coil Heater 380V , Brass Hot Runner Heater 240V

ID34.1x120mm nozzle heater pressed Hot Runner heating element Brass coil heater

Description:

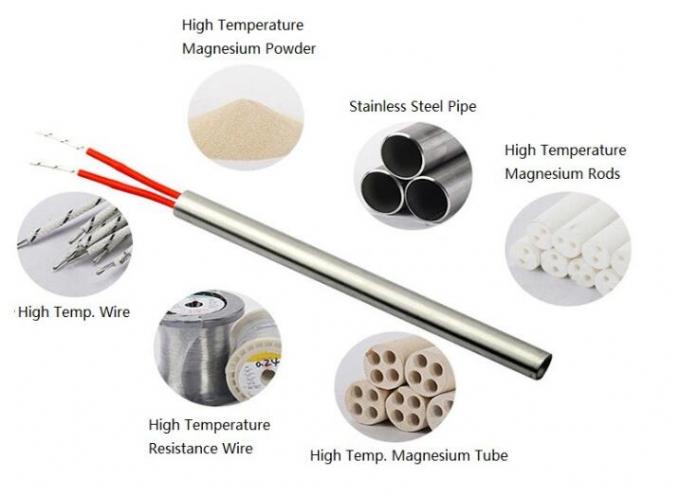

Hot runner heater’s production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reus

Specification:

Name of product	Hot runner heater
Inner Diameter of coiled heater	8-38mm( + 0.05mm)
Coil style Length	40-200mm (+ 0.5mm)
staright style length	200-3000mm (+ 0.5mm)
Cross-section	Round:Dia.3mm;3.3mm;3.5mm Square: 3x3mm;3.3x3.3mm,4x4mm, Rectangular:4.2x2.2mm,4x2mm;1.3x2.2mm
Tube Material	SUS304/SUS/310S/Incoloy800
Tube color	sliver or annealed black
Insulation	High pure Mgo
Inner heating element	NiCr8020
Voltage	12v;24v;110v;220v;240v;380v
Wattage	200-3000w( 6.5W/CM2 ) + 5% tolerance
Max. Temperature:	650°C
Built-in thermocouple	with or without J /K TC(Available)
Delivery Time	3-5 days(10-500pcs) 7 days(more than 500pcs)

ID34.1x120mm Brass Hot Runner Coil Heater 240V 380V 0

Application:

1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings.
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.
