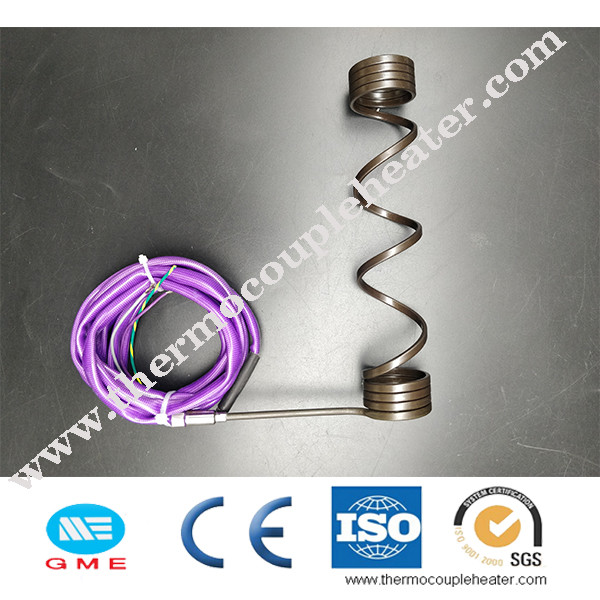

20mm Flat Enail Coil Heating Element For Hot Runner Nozzle

50pcs
MOQ
Negotiable
Price
20mm Flat Enail Coil Heating Element For Hot Runner Nozzle
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Dimension: Customized
Voltage: 120v 220v 240v 380v, 220V
Sheath Material: Stainless Steel Or Nickel
Cross Section: 3.0 X 3.0, 3.30 X 3.30, 3.5 X 3.5, 4 X 4,4.20 X 2.20,4.20 X 2.50
Style: Straight Or Coil
Lead Wire: , Fiberglass , Metal Mesh
Coiling Scheme: Tangential, Radial Exits, Axial
Material: Brass And Stainless Steel
Application: Manifolds, Hot Runner/ Injection
Color: Silver Or Fully Black
Highlight:

Hot Runner Nozzle Coil Heating Element

,

20mm Flat Enail Coil Heating Element

,

20mm Flat Enail Hot Runner Heater
Basic Infomation
Place of Origin: China
Brand Name: GME
Certification: CE
Payment & Shipping Terms
Packaging Details: cartons， pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Product Description

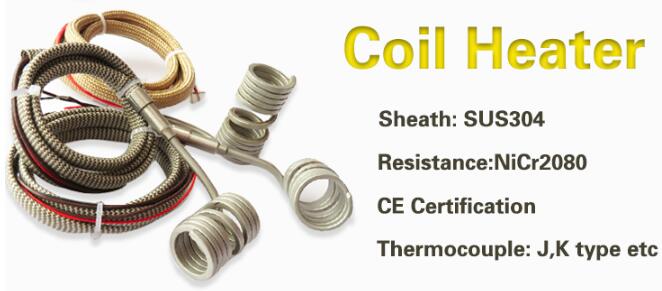

hot runner heater coil heating element for hot runner nozzle



Description:



10mm 14mm 16mm 18mm 20mm flat enail coil heater made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.



The item is used for packing machine,Injection mold,high temperature mold,3D printer for heating,with high tempereture,short heating time,long service life,low leakage current and other performance.



Specification:



220V 2kw stainless steel air electrical Spiral Hot Runner heater coil heating element
Diameter
from 3.0mm to 30mm;
Length tolerance
± 2% or 3.2mm (1/8"), whichever is greater
Voltages available
12V-480V or as customer's demand
Diameter tolerance
Diameter at each end may vary +0.05mm -0.1mm (+.002 -.004)
Internal thermocouple
type J or K;
Thermocouple Location
Disc End, Sheath, Center of Heater;
Maximum leakage current (cold)
≤ 0.5 mA;
Resistance tolerance
+10%, -5%
Wattage Tolerance
+5%, -10%
Wattage density
high/middle/low(5-25w/cm2)
Sheath Material
SUS 304/316L/201 Incoloy 800
Standard Cold Zone
5-10mm

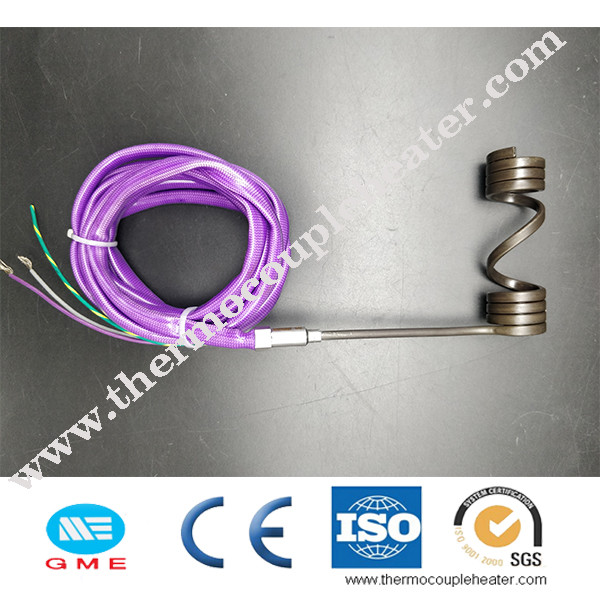

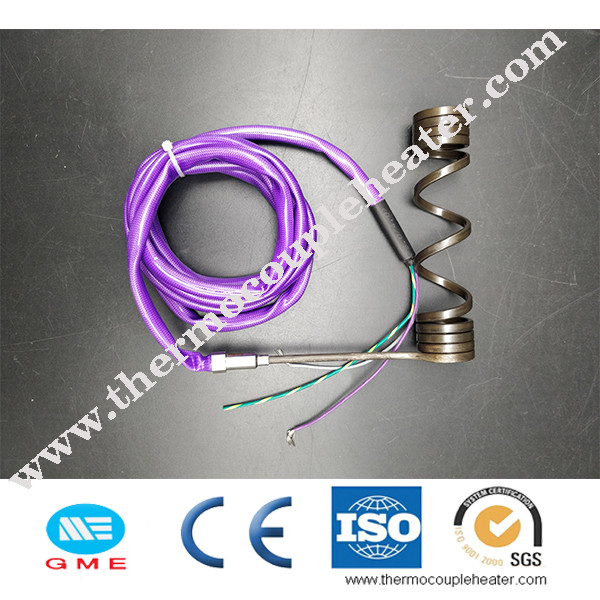

20mm Flat Enail Coil Heating Element For Hot Runner Nozzle 0
