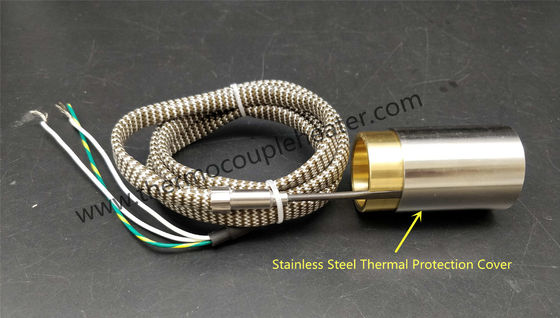

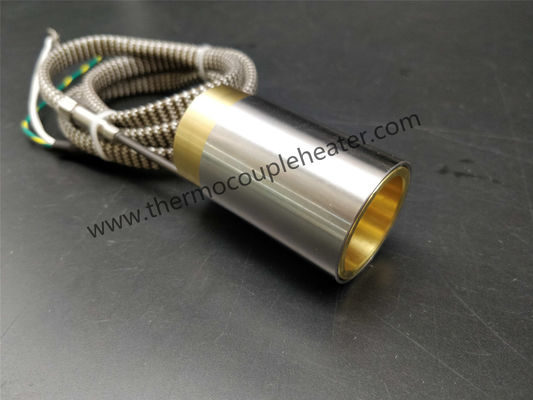

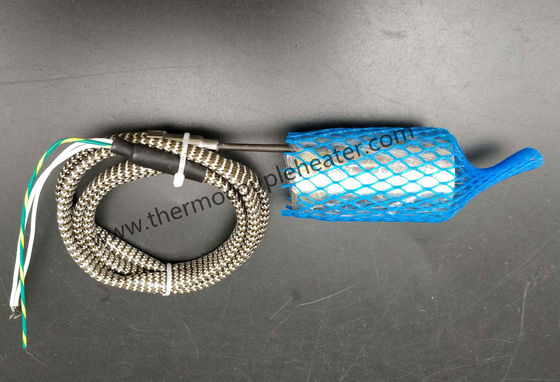

Hot Runner Nozzle Copper Microtubular Coil Heaters With Thermal Protection Cover

Hot Runner Nozzle Copper Microtubular Coil Heaters With Thermal Protection Cover

    • Hot Runner Nozzle Copper Microtubular Coil Heaters With Thermal Protection Cover
    • Hot Runner Nozzle Copper Microtubular Coil Heaters With Thermal Protection Cover
    • Hot Runner Nozzle Copper Microtubular Coil Heaters With Thermal Protection Cover
  • Hot Runner Nozzle Copper Microtubular Coil Heaters With Thermal Protection Cover

    Product Details:

    Place of Origin: China
    Brand Name: GME

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pcs
    Packaging Details: Standard exporting package
    Delivery Time: 10-15 days
    Payment Terms: L/C, Western Union, T/T, Paypal
    Supply Ability: 20,000 pcs per month
    Contact Now
    Detailed Product Description
    Inner Bush Material: Copper Cover Material: Stainless Steel
    Heating Wire: Nichrome Isulation Material: MgO
    Cross Section: 2.2 X 4.2mm, 3.2 X 1.8mm, Dia 1.8mm, Etc Lead Wire Sheath: Fiberglass Or Steel Mesh, Customized
    Thermocouple: Available Application: Nozzle Heating In Injection Moulding
    High Light:

    Microtubular Coil Heaters

    ,

    Hot Runner Nozzle Coil Heaters

    ,

    Copper Micro Tubular Heater

    Hot Runner Nozzle Copper Microtubular Coil Heater With Thermal Protection Cover





    1. Introduction



    GME is one of the reputed manufacturers of Pressed in Brass Coil Heater all over the globe. Manufactured using superior quality material, these products are suitable for eliminating known problems that are associated with the casting process in spectrometry industries. Our range is capable of functioning 8% faster than cast in brass heaters. The component integrated in the brass for the heater enables in facilitating exact repeatability of heat profile. Furthermore, even when the coil heaters are exposed with molten brass, there would be no destruction of the thermocouple junction. Our products are available in flexible designs like internal, external “wound in” or external slotted type J or type K thermocouple.



    2. Characteristics



    1). Tight fit on nozzle
    2). Optimal heat distribution
    3). Up to 1200°F at inner brass casing
    4). Superior heat transfer
    5). Highly non-corrosive
    6). Built-in Type J or Type K thermocouple



    3. Parameter



    Spring coil heater (H series) 3.0x3.0
    3.3x3.3
    4.0x2.0
    4.2x2.2
    4.5x2.7
    Φ3.0 Φ4.0 Φ5.0 3.5x3.5
    4.0x4.0
    5.0x5.0
    Voltage 220V,230V,240V
    Power tolerance 115W-200W +/-10%
    Power tolerance 201W-2000W +5%-10%
    Out jacket length 30mm~280mm
    Diameter of the inner sleeve/wrapped diameter 10mm~42mm
    Unheating length 45mm
    Max power density 9W/cm²
    Heating Length tolerance +/-0.05mm
    Unheating length tolerance +/-2.5%
    Tolerance ID d ≤20mm Without inner sleeve:-0.15mm
    With inner sleeve:0.05mm~0.10mm
    Tolerance ID d 20mm~30mm Without inner sleeve:-0.20mm
    With inner sleeve:0.05mm~0.10mm
    Tolerance ID d ≥30mm Without inner sleeve:-0.25mm
    With inner sleeve:0.05mm~0.10mm
    Tolerance cross section +/-0.15mm +/-0.20mm
    Thermocouple K,J,E None
    Material 304,321,316
    Maximum working temperature 650℃
    Die electrical strength 800V 1000V





    4. Application



    Hot runner heater is the important component of hot runner system, which is made of special technque and high quality material, ensuring its efficient work in the close space, even when the heating jacket temperature is 700 degrees Celsius. Complying with the metric system and the international standard, all models are on the basis of VDE0721 quality inspection requirements, so as to meet most factories and hot runner machines.
    we provide several kinds of heaters, such as pipe heater, press in brass heater, coil heater and so on.



    hot runner system

    plastic industry

    packaging machinery

    medical equipment

    casting process

    other electric heating industry
