Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 120v 220v 240v 380v, 220V | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 3.0 X 3.0, 3.30 X 3.30, 3.5 X 3.5, 4 X 4,4.20 X 2.20,4.20 X 2.50 | Style: | Straight Or Coil |
| Lead Wire: | , Fiberglass , Metal Mesh | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Material: | Brass And Stainless Steel | Application: | Manifolds, Hot Runner/ Injection |
| Color: | Silver Or Fully Black | ||
| High Light: | Brass Pipe Nozzle Coil Heater,MgO Insulation Nozzle Coil Heater,Brass Pipe Hot Runner Coil Heater |
||

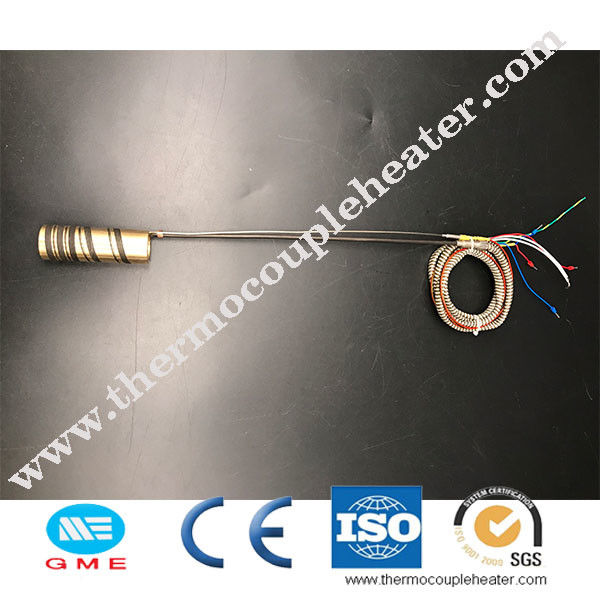

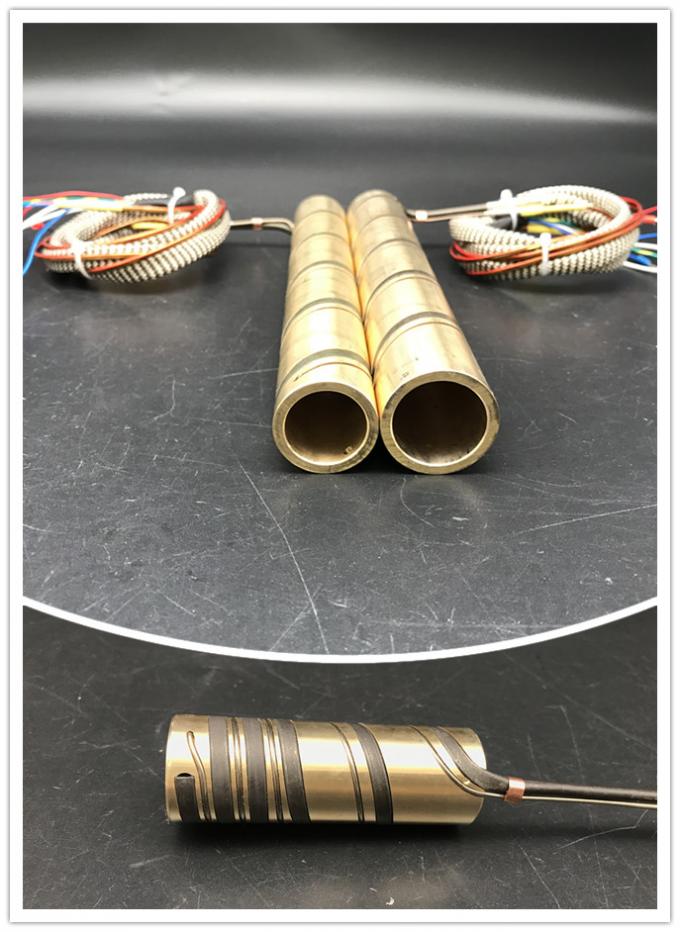

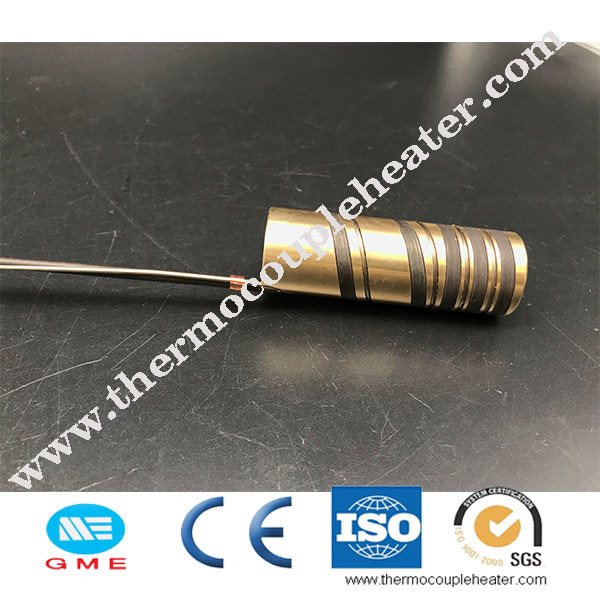

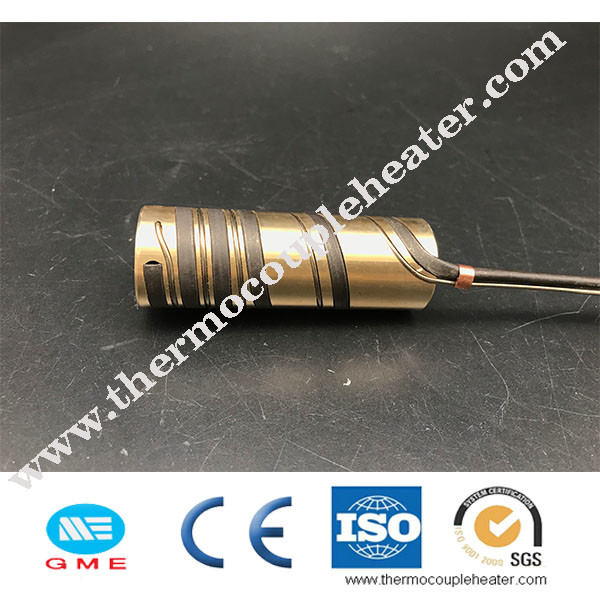

Hot Runner Heating Element Electric Brass Pipe Heater Nozzle Coil Heater
Description:
when thicker metal in an alternating magnetic field, it will produce electric current .The metal current become stronger , temperature of metal became higher. The device is a kind of energy-saving equipment . it is installed in the combustion equipment before combusting, the high temperature (105 DEG -150 DEG) issued to reduce the fuel oil viscosity, promote full combustion .
Hot Runner Coil Heater are widely used in hot-runner molds,blow molding,extrusion and hot nozzles.The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available
Specification:
1. The A class products of our company has the function of water proof
2. Standard voltage 230 V, We can make the voltage as you need
3. The normal cable length is 1000mm ,also we can make the length as you need
4. The leading wire type use fiberglass silicone copper wire ,PTFE wrapped copper wire ,and others should be customized
5. Material:SS304,Mgo ,Heating coil
6. Surface highest temperature as your requirement :750°C
7. Various sizes of cross section for your choice,including special specification.
8. Power density reaches 20 w/cm square.
9. Thermocouple type J/K/E can be attached.
10. High temperature lead wire and stainless steel shield provided.
11. 1 year guarantee time
| Die Electrical Strength | 800V A/C |
| Insulation | >5 M W |
| Thermocouple | J type (Standard) or K type |
| Length Tolerance (Straight) | 5% |
| Unheated Length | 35mm (Standard) |
| Maximum Sheath Temperature | 700°C |
| Insulation Material | MgO |
| Resistance Wire |
Ni Cr 80-20 |
Application:
hot runner system
plastic industry
packaging machinery
medical equipment
casting process
other electric heating industry
