Hot Runner Pressed In Brass Coil Heater 220v 230v 240v With Thermocouple

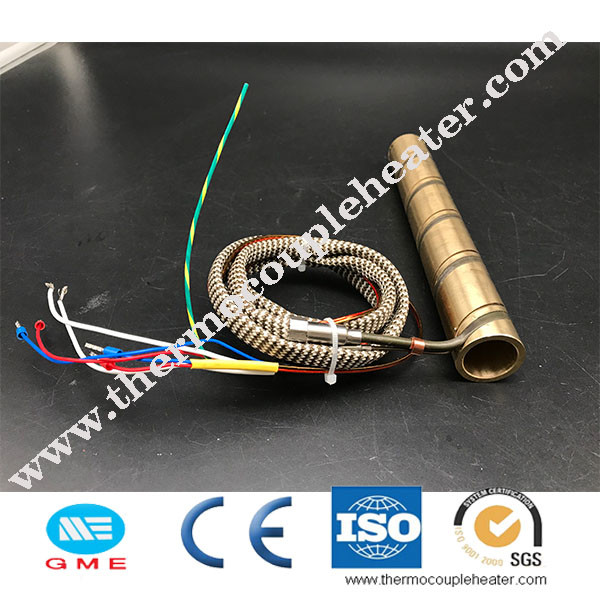

Large Image : Hot Runner Pressed In Brass Coil Heater 220v 230v 240v With Thermocouple

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	120v 220v 240v 380v, 220V	Sheath Material:	Stainless Steel Or Nickel
Cross Section:	3.0 X 3.0, 3.30 X 3.30, 3.5 X 3.5, 4 X 4,4.20 X 2.20,4.20 X 2.50	Style:	Straight Or Coil
Lead Wire:	, Fiberglass , Metal Mesh	Coiling Scheme:	Tangential, Radial Exits, Axial
Material:	Brass And Stainless Steel	Application:	Manifolds, Hot Runner/ Injection
Color:	Silver Or Fully Black
Highlight:	Pressed In Brass Coil Heater 220v , Coil Heater With Thermocouple 230v , hot runner coil heater 240v

Pressed In Brass Coil Heater With Thermocouple for hot runner system

Description:

The pressed in brass coil heaters (hot runner brass nozzle heaters) we provide deliver the benefits of cast in brass coil heaters and eliminate known problems associated with the casting process. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high pure magnesium oxide, high temperature resistance wire, and world-class manufacturing technology. The basic construction of these heaters consists of compacted MgO, high temperature resistance wire and Chrome Nickel Steel tube. With or without built in thermocouples. Widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines.

Specification:

1. Standard sizes available with various cross section
2. Various Watt Density option3.
3. Precision fit on Hot Runner Nozzles
4. Highly Non-corrosive
5. Choice of Terminal Exits
6. Advanced Thermal Engineering
7. Available with built in Thermocouple
8. CE approved

Thermocouple: Integrated type J or type K
Voltage: 220v, 230v, 240v
ID: Φ10mm-Φ42mm
Unheated length:45mm
Max power density: 9W/cm²
Maximum Total Straight Length: 3000mm (118.11”)
Length Tolerance: Heated +/-1%; Unheated +/- 2.5%
Material: 304, 321, 316
Maximum working temperature: 650℃

Hot Runner Pressed In Brass Coil Heater 220v 230v 240v With Thermocouple 0

Application:

Hot runner nozzles & bushings
Injection & blow moulding machine nozzles
Hot runner manifolds
