Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Packaging Details: | Standard exporting package |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, Western Union, T/T, Paypal |
| Supply Ability: | 20,000 pcs per month |
| Sheath Material: | Stainless Steel | Core Material: | Copper |
|---|---|---|---|
| Voltage: | 220-400V, Customized | Shape: | Microtubular |
| Dimension: | ID*Length, Customized | Power(w): | Customized |
| Thermocouple: | Available | Application: | Nozzle Heating In Injection Moulding |
| High Light: | Hotlock Nozzle Coil Heater,Hot Runner Nozzle Coil Heater,Nozzle Heating Micro Tubular Heater |
||

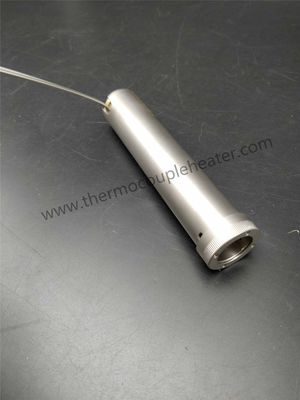

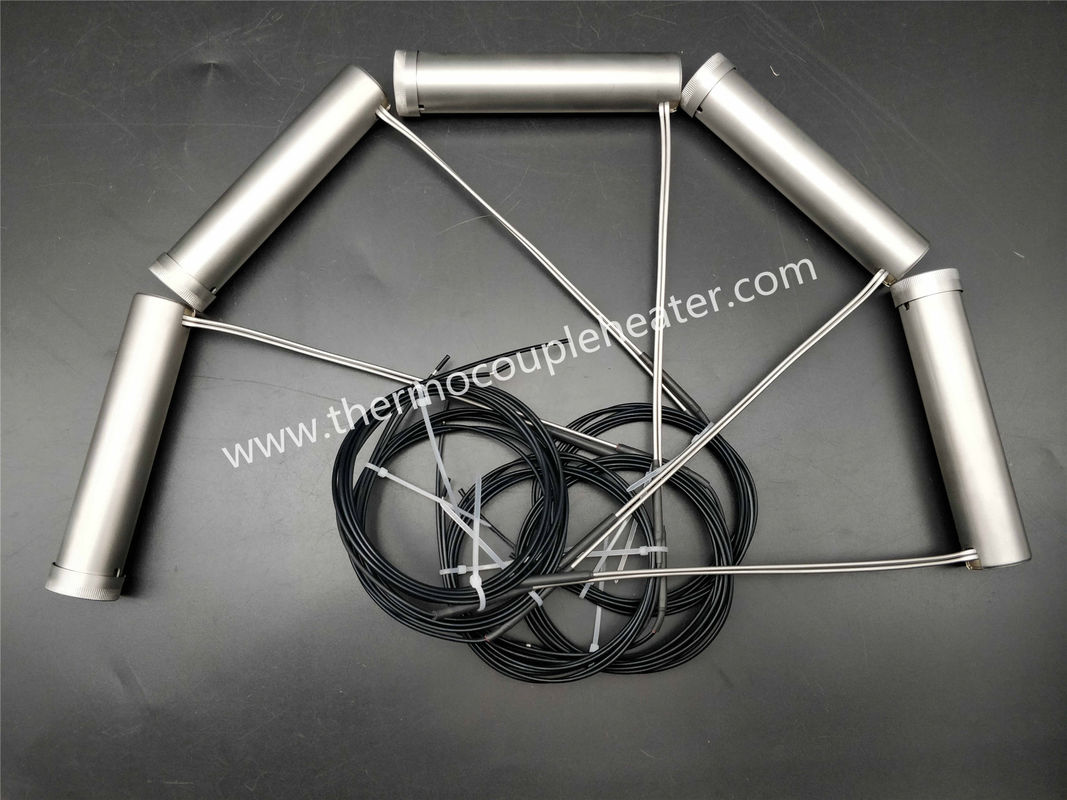

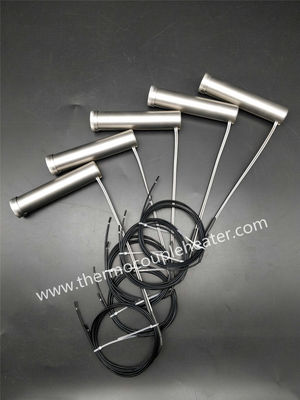

Hot Runner Microtubular Hot Locking Heater For Nozzle Heating In Plastic Industry
1. Brief Introduction
The Hotlock Nozzle Coil Heater are constructed with a Brass core and a Stainless Steel outer sleeve.
The materials used direct the heat inward toward the nozzle resulting in a very efficient heater with even heat distribution. The tightly toleranced I.D allows a slip fit with no clamping required.
Our coil heater made of Germany heater wire ,the united states high-purity magnesium oxide materials and strict process technology,there are various sections and sizes,square ,round and flat cross sections and sizes available ,provide high –performance electric heater for heating hot runner mold and other fileds. Heaters maximum temperature up to 700C.The integration of temperature thermocouple for precise temperature control ,can provide K J E themocuple ,blasting and black surface treatment ,also provides bright surface.
2. Specification
| Sheath material | Chrome Nickel Steel |
| Insulation material | High purity MgO |
| Heating element | NiCr 80:20 |
| Thermocouple | 'J' type (Fe K) 'K' type (Cr Al) grounded or ungrounded |
| Connection Wires | Stranded Nickel wires with PTFE coating |
| Power Tolerance | (+5% ,-10%) (smaller tolerances on request ) |
| Insulation Resistance | ≥ 500 MΩ at 500V AC |
| Current Leakage | ≤ 0.5 mA at 253V AC |
| Sheath Temperature | 750°C |
| Dielectric strength (high voltage test ) | Min. 1000V |
Technical Drawing
3. Feature
4. Application
