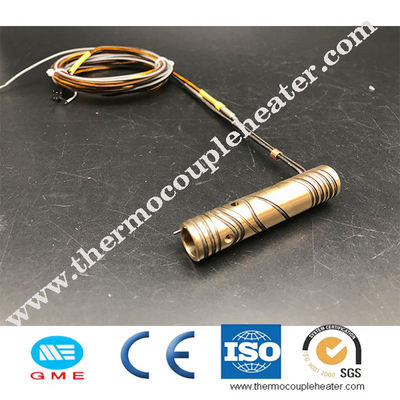

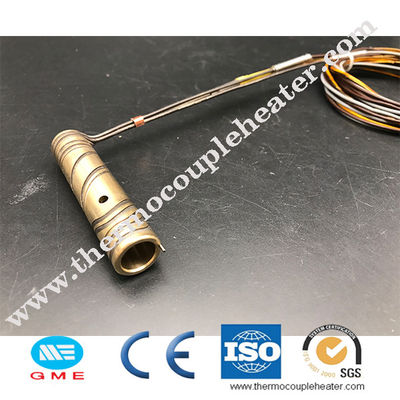

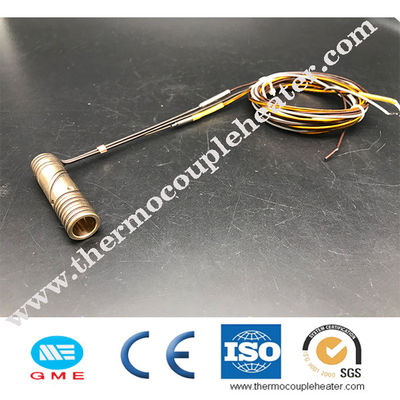

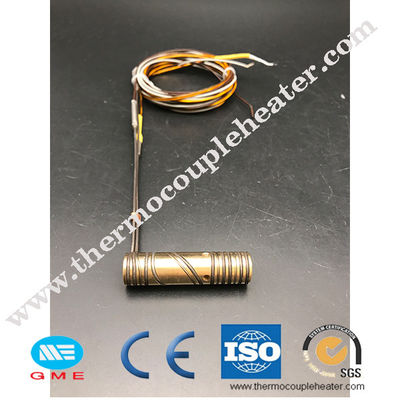

MICC Thermocouple Brass Hot Runner Coil Heater With Nickel Sheath

Large Image : MICC Thermocouple Brass Hot Runner Coil Heater With Nickel Sheath

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	120v 220v 240v 380v, 220V	Sheath Material:	Stainless Steel Or Nickel
Cross Section:	3.0 X 3.0, 3.30 X 3.30, 3.5 X 3.5, 4 X 4,4.20 X 2.20,4.20 X 2.50	Style:	Straight Or Coil
Lead Wire:	, Fiberglass , Metal Mesh	Coiling Scheme:	Tangential, Radial Exits, Axial
Material:	Brass And Stainless Steel	Application:	Manifolds, Hot Runner/ Injection
Color:	Silver Or Fully Black
Highlight:	Brass Hot Runner Coil Heater , MICC Thermocouple Hot Runner Coil Heater , Nickel Sheath Brass Electric Coil Heaters

Brass Coil Heaters Brass Coil Heater MICC Thermocouple Brass Hot Runner Coil Heaters

Description:

Hot runner Coil Heater is made of nickel chrome resistance wire placed inside chrome nickel steel tube that is filled with MgO powder. It has round, squre and flat sections. The surface treatment can be polishing and sand blasting.And it can be connected with K, J, or E type temperature control thermocouples. Spring coil heater is widely used in heating engineering, mold, plastic industry, extruder and hot nozzle, etc.

Specification:

1. Maximum Sheath Temperature: 700°C

2. Inner Diameter: 8-38mm( + 0.05mm)

3.Coil style Length: 40-200mm (+ 0.5mm)

4.Staright style length:200-3000mm (+ 0.5mm)

5.Cross-section:

Round Dia.3mm;3.3mm;3.5mm
Square: 3x3mm;3.3x3.3mm,4x4mm,
Rectangular:4.2x2.2mm,4x2mm;1.3x2.2mm
6. Available Sheath: nylon,metal braided,fiberglass ,silicone rubber, kevlar

Product Name	Copper/Brass Coil Heater Nozzle Band Heater
Rated voltage	12V-480V customized
Sheath Material	Chrome Nickel Steel
Cross Section	1.5mm , 1.8mm, 1.3x2.3 mm
Resistance Wire	NiCr2080
Terminal Type	Screw, Plug, Ceramic Block, Lead Wire and so on
Built-in thermocouple	With or without J/K thermocouple
Insulation Resistance	10 MW @ 500V DC
Power tolerance	± 10% (Tighter Tolerance available)
Current Leakage	< 0.5 mA @ 253 V AC
Unheated Length	Minimum 25 mm plus adapter connection
Minimum Bending diameter	6mm

MICC Thermocouple Brass Hot Runner Coil Heater With Nickel Sheath 0

Application:

* Injection moulding machine nozzle

* Hot Runner Nozzles & Bushings
* Packaging machinery
* Hot runner Injection moulds
* Injection & Blow Moulding Machine Nozzles
* PET preform & Thin wall container Moulds
* Hot runner Manifolds
