Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
| Style: | K, J, S | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | Connection: | Thread |
| High Light: | Armored Mi Cable Thermocouple,K Type Mi Cable Thermocouple,2m Extension Wire K Type Thermocouple |
||

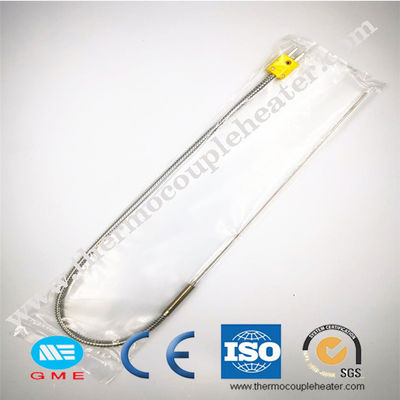

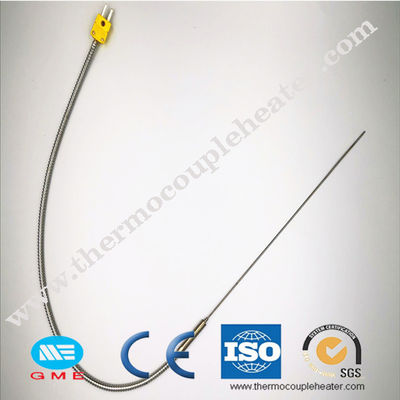

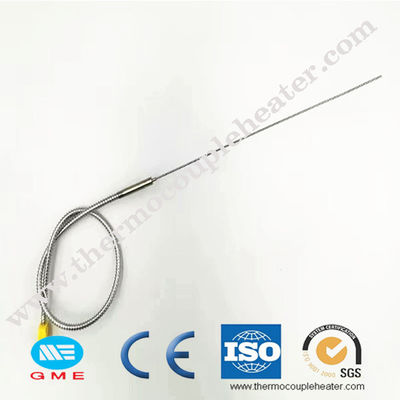

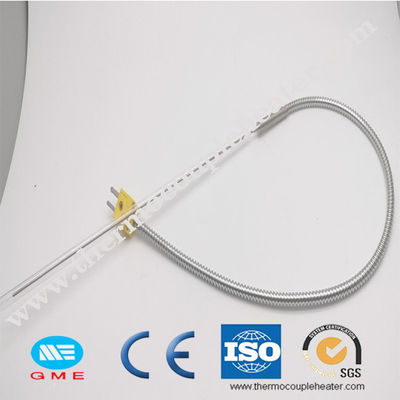

High Quality K Type Armored Mi Cable Thermocouple
Description:
Thermocouple is a temperature measuring device consisting of two different conductors that touch each other at one or more points.When the temperature of one of the points is different from the reference temperature of the rest of the circuit, it generates a voltage.
Thermocouple is a widely used temperature sensor for measuring and controlling, and can also convert temperature gradient into electrical energy.Commercial thermocouples are inexpensive, interchangeable, and come with standard connectors that measure a variety of temperatures.Compared with most other temperature measurements, thermocouples are self-powered and do not require external excitation.
Specification:
| product name | High Quality K Type Armored Mi Cable Thermocouple |
| Specification model | YDTS-K-CA-TK |
| Accuracy | Class I |
| Protection tube material | INCONEL600 |
| temperature range | 0-1200℃ |
| Extension wire | 2m |
| Protective tubelength | 2m |
| Protective tube diamete | 1.6mm |
| Extension material | Type K thermocouple wire, green PTFE |

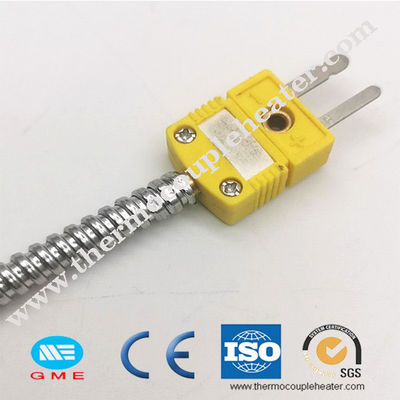

| The connector | Type K miniature thermocouple plug, yellow (American ) green(European) |
| Fixed requirements | size, customized |
| Shipping | By air, sea, express |
| Sample time | 2~7 days |
| Manufacturer time | 7~30 days depending on order quantity |
