Hot Runner System Pressed In Brass Coil Heater With Thermocouple

Large Image : Hot Runner System Pressed In Brass Coil Heater With Thermocouple

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	120v 220v 240v 380v, 220V	Sheath Material:	Stainless Steel Or Nickel
Cross Section:	3.0 X 3.0, 3.30 X 3.30, 3.5 X 3.5, 4 X 4,4.20 X 2.20,4.20 X 2.50	Style:	Straight Or Coil
Lead Wire:	, Fiberglass , Metal Mesh	Coiling Scheme:	Tangential, Radial Exits, Axial
Material:	Brass And Stainless Steel	Application:	Manifolds, Hot Runner/ Injection
Color:	Silver Or Fully Black
Highlight:	Pressed In Brass Coil Heater , Hot Runner System Brass Coil Heater , MgO insulation hot runner coil heater

Pressed-In Brass Coil Heater for hot runner system with thermocouple

Description:

GME Spiral Coil Heater is compacted for faster and efficient heat transfer. Generally the long 20-3000mm, spring heating ring external using high-quality Ni-Cr steel tube, the internal use of high purity magnesium oxide, high-temperature resistance wire.

With high working temperature, fast heating,uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can be reused. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built-in thermocouple are also available.

Specification:

Sheath Material	Cr Ni-Steel	Thermocouple	J-type(standard); K-type
Insulation Material	MgO	Length Tolerance(straight)	5%
Resistance Wire	NiCr 80-20	Wattage Tolerance	5%
Thermocouple	J-type; K-type	Resistance Tolerance	5%
Max. Sheath Temperature	650°C	Unheated Length	35mm(standard)
Die Electrical Strength	800V A/C	Dimensional Tolerance	Coil I.D + 0.1~0.2mm
Insulation	>5MW	Dimensional Tolerance	Coil length +1mm

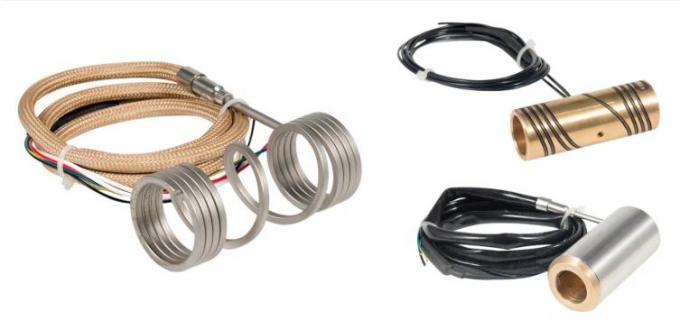

Hot Runner System Pressed In Brass Coil Heater With Thermocouple 0

Application:

1). Injection & Blow moulding machine nozzle
2). Hot Runner Nozzles & Bushings.
3). Packaging machinery
4). Hot runner Injection Moulds.
5). PET preform & Thin wall container Moulding
6). Hot runner Manifolds
