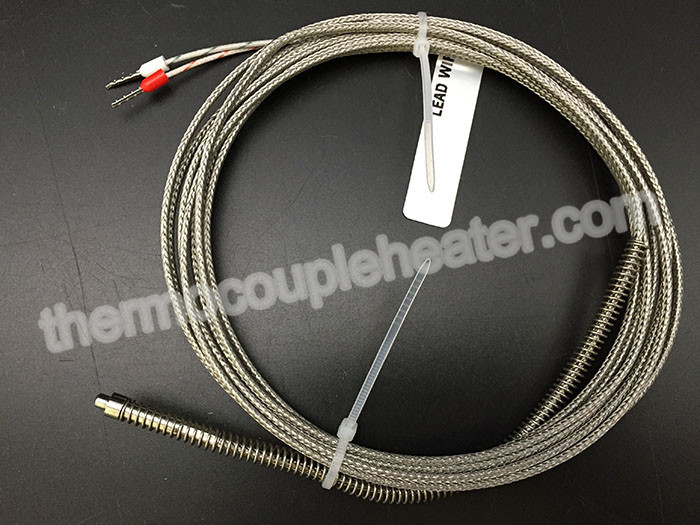

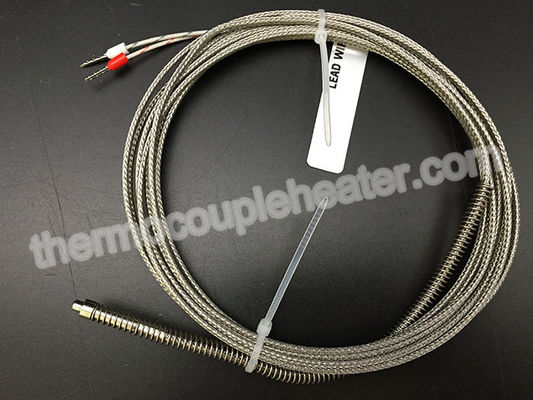

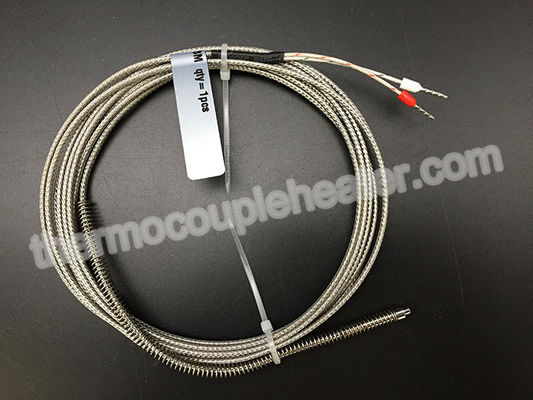

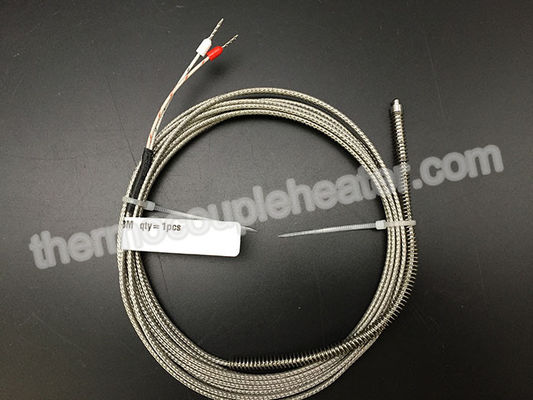

Type J Miniature Adjustable Thermocouple For Plastic Industry

Type J Miniature Adjustable Thermocouple For Plastic Industry

    • Type J Miniature Adjustable Thermocouple For Plastic Industry
    • Type J Miniature Adjustable Thermocouple For Plastic Industry
    • Type J Miniature Adjustable Thermocouple For Plastic Industry
  • Type J Miniature Adjustable Thermocouple For Plastic Industry

    Product Details:

    Place of Origin: China
    Certification: ISO9001/CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiable
    Packaging Details: Carton or as per your request
    Delivery Time: 7~20 working days
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Product Name: Type J Miniature Adjustable Bayonet Style Thermocouple For Plastic Industry Application: Temperature Sensor For Plastic And Rubber Industry
    Calibration: Type J Accuracy: Class I
    Max.temperature: 900F Or 500C Probe Material: 304SS ,316SS,
    High Light:

    Miniature Adjustable Thermocouple

    ,

    Type J Adjustable Thermocouple

    ,

    ss probe type j thermocouple

    Type J Miniature Adjustable Thermocouple For Plastic Industry



    Product  Description:


    Adjustable bayonet thermocouple is a kind of general purpose temperature sensor , which is designed to satisfy all applications mainly in plastic and rubber industry, where metal sheathed thermocouples are required.



    They are especially suited for applications where the metal sensor tip is fitted directly into a drilled hole. The adjustable bayonet cap can have the sensor with a reasonable pressure at the tip when installed correctly. A wide range of accessories or components can be individually selected for the appropriate application. With the flexibility of assorted diameters and manually adjustable immersion lengths .  The temperature sensor can be modified to suit specific application when required.



    Type J Miniature Adjustable Thermocouple For Plastic Industry

    Specifications:



    Probe Material

    304SS ,316SS,



    Calibration

    Type K ,Type J



    Probe Tip Diameter

    1/8”

    Accuracy

    Class I



    Junction

    Ungrounded , Grounded



    Wire Description

    24Gage Stranded stainless steel braid

    0.210”O.D.Flexible armor cable

    24Gage Stranded fiberglass cable

    24Gage Stranded Cable

    Termination type

    3” split leads and 1/2” Bare Ends,

    3” split leads and No.10 Spade lugs,

    Standard Male Plug,

    Standard Female Jack,

    Mini Male Plug,

    Mini Female Jack,



    Accessories

    None,

    Bx connector,

    Cable clamp



    Feature:


    1. The miniature adjustable bayonet thermocouple allows for simple and rapid adjustment of the immersion length to each application , which can be adjusted to a specific length and mounted into the process directly ;
    2. The miniature adjustable bayonet thermocouple are available with a variety of fixing mechanisms ;
    3. With or without stainless steel overbraid or interlocking flexible armour cable;
    4. Wire and tube construction ;
    5. Easily replaceable and interchangeable ;



    Application:


    1. Plastics and rubber industry;
    2. Dies for extrusion profiles;
    3. Direct installation into the process;
    4. Packaging industry;
    5. Compression platens;
