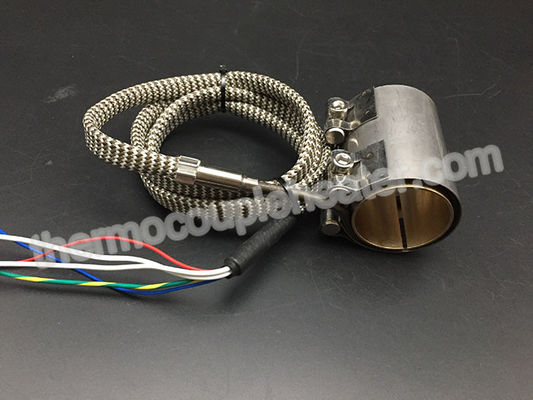

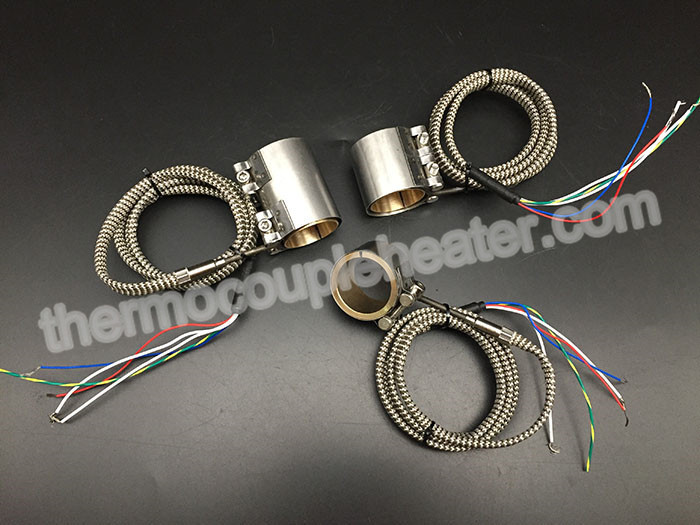

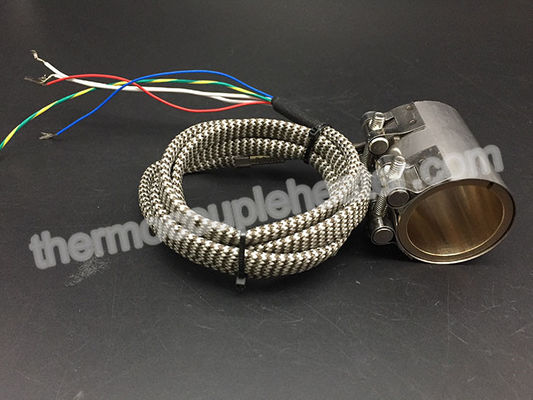

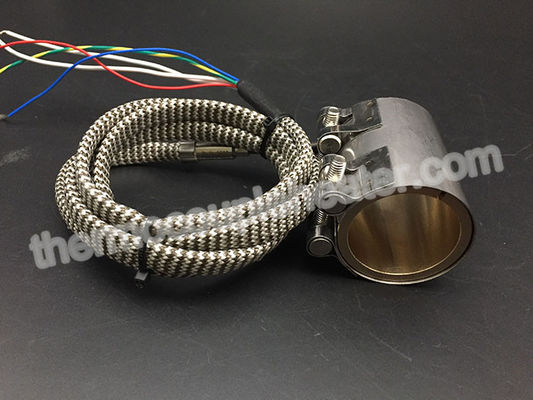

9W/Cm2 Brass Core Hot Runner Coil Heater With Stainless Steel Clap

Large Image : 9W/Cm2 Brass Core Hot Runner Coil Heater With Stainless Steel Clap

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE & ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Standard Export Packing
Delivery Time:	7-15 working days after received your payment
Payment Terms:	T/T or western Union or Paypal
Supply Ability:	10,000 pcs per month

Contact Now

Detailed Product Description

Name:	Coil Heater	Application:	Hot Runner
Material:	Brass	Lead Wire Length:	1000mm Or Customize
Warranty:	1 Year	Insulated Material:	Comressed MgO
Moistureproof:	IP65	Cross Section:	1.5mm
Thermocouple:	Type J	Tube Length:	110 Mm
Form:	Straight Or Coiled	Type:	Tangential, Radial Exits, Axial
Wire Insulation:	Etc.	Protection Sleeves:	Fiberglass, Silicon, Braided Metal Screen Etc
Highlight:	9W/cm2 Hot Runner Coil Heater , Brass Core Hot Runner Coil Heater , IP65 220V electric coil heaters

Hot Runner Coil Heaters Between Brass Core And Stainless Steel Metal Clap

1. Product introduction

GME hot runner coil heater are made of Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields. Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.

2. Characteristics

1) The inside insulated cover, same as the German GC.

2) Good performance of the heating uniformity in the heating area.

3)The moisture-proof is IP65.

4) High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.

3. Parameter

Spring coil heater (H series)	3.0x3.0 3.3x3.3 4.0x2.0 4.2x2.2 4.5x2.7	Φ3.0	Φ4.0	Φ5.0	3.5x3.5 4.0x4.0	5.0x5.0
Voltage	220V,230V,240V
Power tolerance 115W-200W	+/-10%
Power tolerance 201W-2000W	+5%-10%
Out jacket length	30mm~280mm
Diameter of the inner sleeve/wrapped diameter	10mm~42mm
Unheating length	45mm
Max power density	9W/cm²
Heating Length tolerance	+/-0.05mm
Unheating length tolerance	+/-2.5%
Tolerance ID d ≤20mm	Without inner sleeve:-0.15mm With inner sleeve:0.05mm~0.10mm
Tolerance ID d 20mm~30mm	Without inner sleeve:-0.20mm With inner sleeve:0.05mm~0.10mm
Tolerance ID d ≥30mm	Without inner sleeve:-0.25mm With inner sleeve:0.05mm~0.10mm
Tolerance cross section	+/-0.15mm			+/-0.20mm
Thermocouple	K,J,E					None
Material	304,321,316
Maximum working temperature	650℃
Die electrical strength	800V			1000V

4. Application

Hot runner system

Plastic industry

Packaging machinery

Medical equipment

Casting process

Other electric heating industry
