Brass Core Hot Runner Coil Heater With Hotlock Stainless Steel Clamp

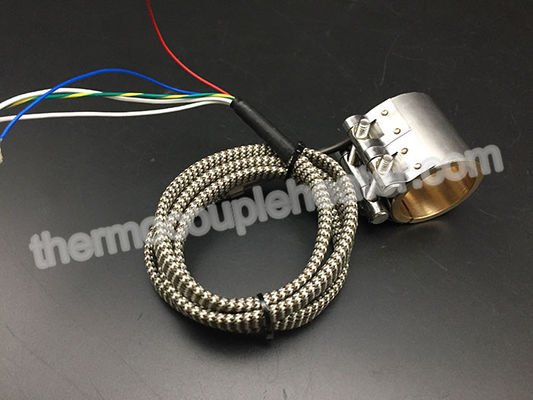

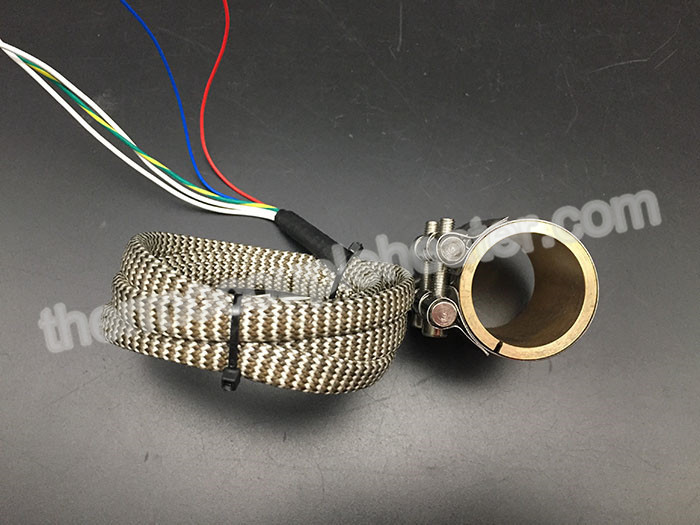

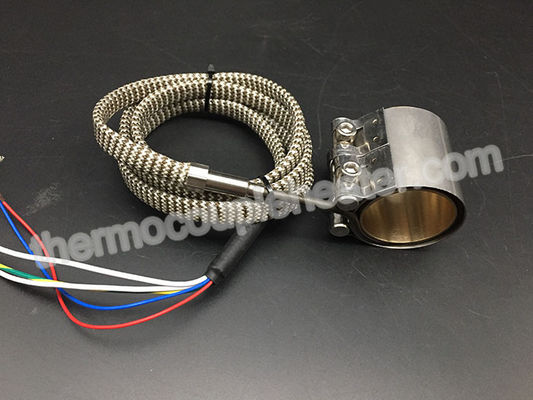

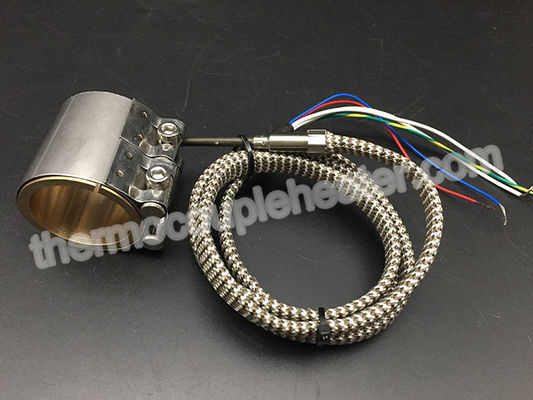

Large Image : Brass Core Hot Runner Coil Heater With Hotlock Stainless Steel Clamp

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE & ISO

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Standard Export Packing
Delivery Time:	7-15 working days after received your payment
Payment Terms:	T/T or western Union or Paypal
Supply Ability:	10,000 pcs per month

Contact Now

Detailed Product Description

Name:	Stainless Steel Clamp Hot Runner Coil Heater With Brass Core	Application:	Hot Runner
Lead Wire Length:	1000mm Or Customize	Insulated Material:	Comressed MgO
Moistureproof:	IP65	Tube Length:	78 Mm
Form:	Straight Or Coiled	Type:	Tangential, Radial Exits, Axial
Wire:	Braided Copper Tinned Conductor Etc	Protection Sleeves:	Fiberglass, Silicon, Braided Metal Screen Etc
Highlight:	Brass Core Hot Runner Coil Heater , IP65 Hot Runner Coil Heater , Hotlock Stainless Steel Clamp Coil Heaters

Hot Runner Coil Heater With Brass Core And Hot-Lock Stainless Steel Clamp

1. Introduction

Hot Runner Coil Heaters are made of nickel chrome resistance wire placed inside stainless steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.

2. Characteristics

1) The inside insulated cover, same as the German GC.

2) Very good performance of the heating uniformity in the heating area.

3) High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.

4)The moisture-proof is IP65.

3. Parameter

Spring coil heater (H series)	3.0x3.0 3.3x3.3 4.0x2.0 4.2x2.2 4.5x2.7	Φ3.0	Φ4.0	Φ5.0	3.5x3.5 4.0x4.0	5.0x5.0
Voltage	220V,230V,240V
Power tolerance 115W-200W	+/-10%
Power tolerance 201W-2000W	+5%-10%
Out jacket length	30mm~280mm
Diameter of the inner sleeve/wrapped diameter	10mm~42mm
Unheating length	45mm
Max power density	9W/cm²
Heating Length tolerance	+/-0.05mm
Unheating length tolerance	+/-2.5%
Tolerance ID d ≤20mm	Without inner sleeve:-0.15mm With inner sleeve:0.05mm~0.10mm
Tolerance ID d 20mm~30mm	Without inner sleeve:-0.20mm With inner sleeve:0.05mm~0.10mm
Tolerance ID d ≥30mm	Without inner sleeve:-0.25mm With inner sleeve:0.05mm~0.10mm
Tolerance cross section	+/-0.15mm			+/-0.20mm
Thermocouple	K,J,E					None
Material	304,321,316
Maximum working temperature	650℃
Die electrical strength	800V			1000V

4. Application

casting process

other electric heating industry

hot runner system

plastic industry

packaging machinery

medical equipment
