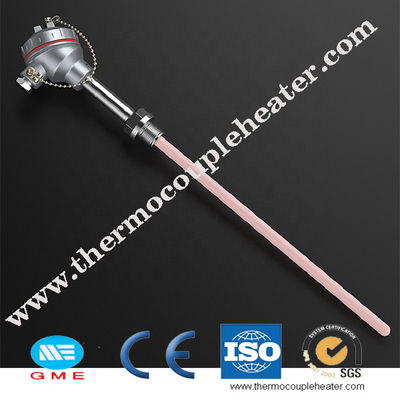

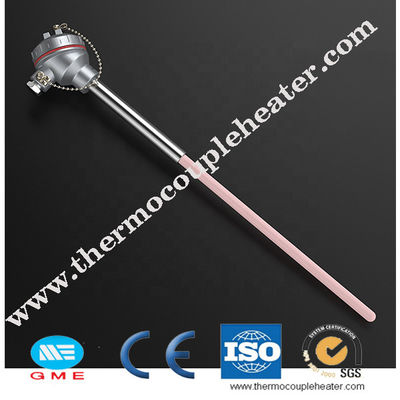

Type S B R Platinum Rhodium Thermocouple With Ceramic Protection Probe Tube

Type S B R Platinum Rhodium Thermocouple With Ceramic Protection Probe Tube

    • Type S B R Platinum Rhodium Thermocouple With Ceramic Protection Probe Tube
    • Type S B R Platinum Rhodium Thermocouple With Ceramic Protection Probe Tube
    • Type S B R Platinum Rhodium Thermocouple With Ceramic Protection Probe Tube
    • Type S B R Platinum Rhodium Thermocouple With Ceramic Protection Probe Tube
    • Type S B R Platinum Rhodium Thermocouple With Ceramic Protection Probe Tube
  • Type S B R Platinum Rhodium Thermocouple With Ceramic Protection Probe Tube

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Temperature Range: -200~650℃
    Voltage: 12-480V Probe Material: Stainless Steel Or Nickel
    Pairs Quantity Of Element: Simplex/duplex Heating Element: Nichrome Resistance

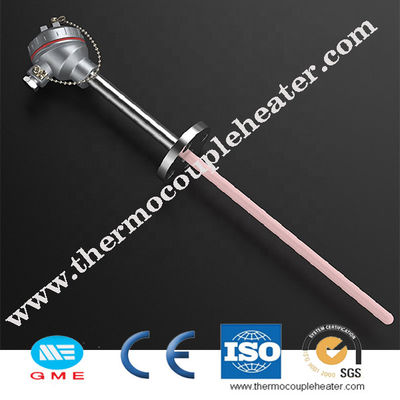

    Mounting: Thread/flange/none Function: Temperature Sensor

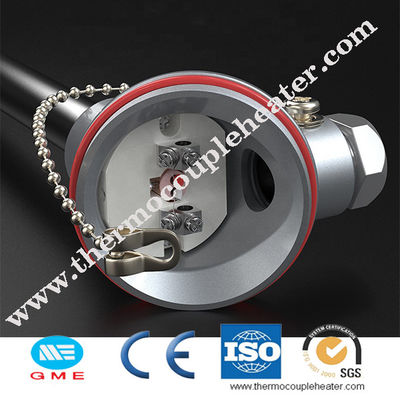

    Types Of Terminal Box: Anti-spray/water-proof Connection: Thread
    High Light:

    Type R Platinum Rhodium Thermocouple

    ,

    Type B Platinum Rhodium Thermocouple

    ,

    Thread Connection Type S Thermocouple

    Type S/B/R Platinum Rhodium Thermocouple With Ceramic Protection Probe Tube High Temperature Sensor

    Description:

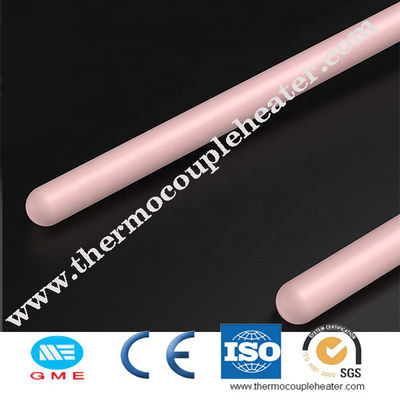

    Platinum rhodium thermocouple is made of noble metal,( platium in high purity as cathode,Platium and Rhodium alloy as positive pole), corundum as external tube, which is used to measure as high as 1800C like powder metallurgy, fritting furnace,vacuum furnace, matallurgy furnace and calcination of fire-proof materials, ceramics.
    It is widely used in high temperature production process such as glass, ceramic industry and industrial NaCl bathing stove, etc.



    Specification:



    Conductor
    Material
    Type
    Graduation
    Continuous temperature
    Short-term temperature
    PtRh10-Pt
    WRP
    S
    0-1300C
    0-1600C
    PtRh30-PtRh6
    WRR
    B
    0-1600C
    0-1800C
    PtRh13-Pt
    WRQ
    R
    0-1300C
    0-1600C
    NiCrSi-NiSi
    WRM
    N
    0-1000C
    0-1100C
    NiCr-NiSi
    WRN
    K
    0-900C
    0-1000C
    NiCr-Konstantan
    WRE
    E
    0-600C
    0-700C
    Fe-Konstantan
    WRF
    J
    0-500C
    0-600C
    Cu-Konstantan
    WRC
    T
    0-350C
    0-400C

    Type S B R Platinum Rhodium Thermocouple With Ceramic Protection Probe Tube



    Application:


    It is usually connected with display meter, recording meter and computer, etc. to directly measue temperature of liquid, vapor, gas and solid surface ranging from 0°C to 1300C during various production process.
