Hot Runner Armoured Tubular Heater For Injection Molding
|
Product Details:
Payment & Shipping Terms:
|
Verified Supplier
China
- Product Details
Detailed Product Description
| Application: | Hot Runner Heating | Thermocouple: | Available |
|---|---|---|---|
| Sheath Material: | Stainless Steel | Core Material: | Copper |
| Voltage: | Customized | Dimension: | ID*Length, Customized |
| Power(w): | Customized | Warranty: | 1 Year |
| Highlight: | Armoured Tubular Heater,Hot Runner Tubular Heater,brass core electric tube heaters |
||

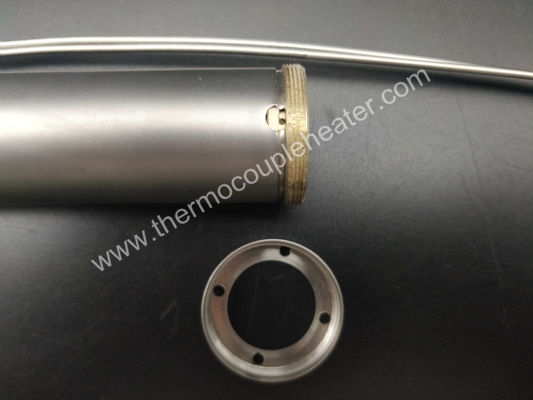

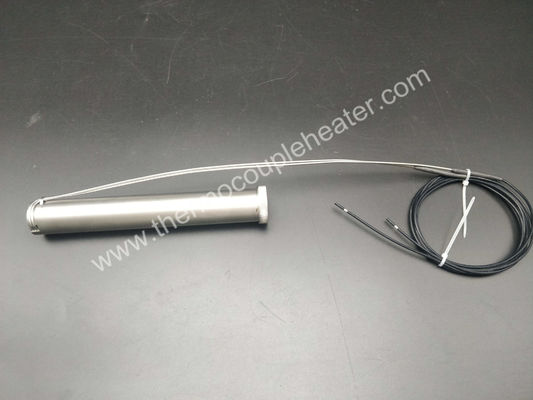

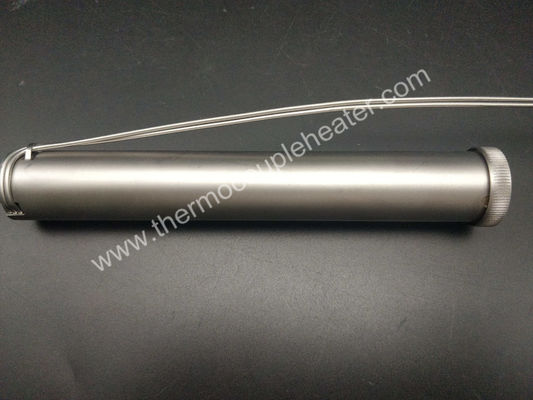

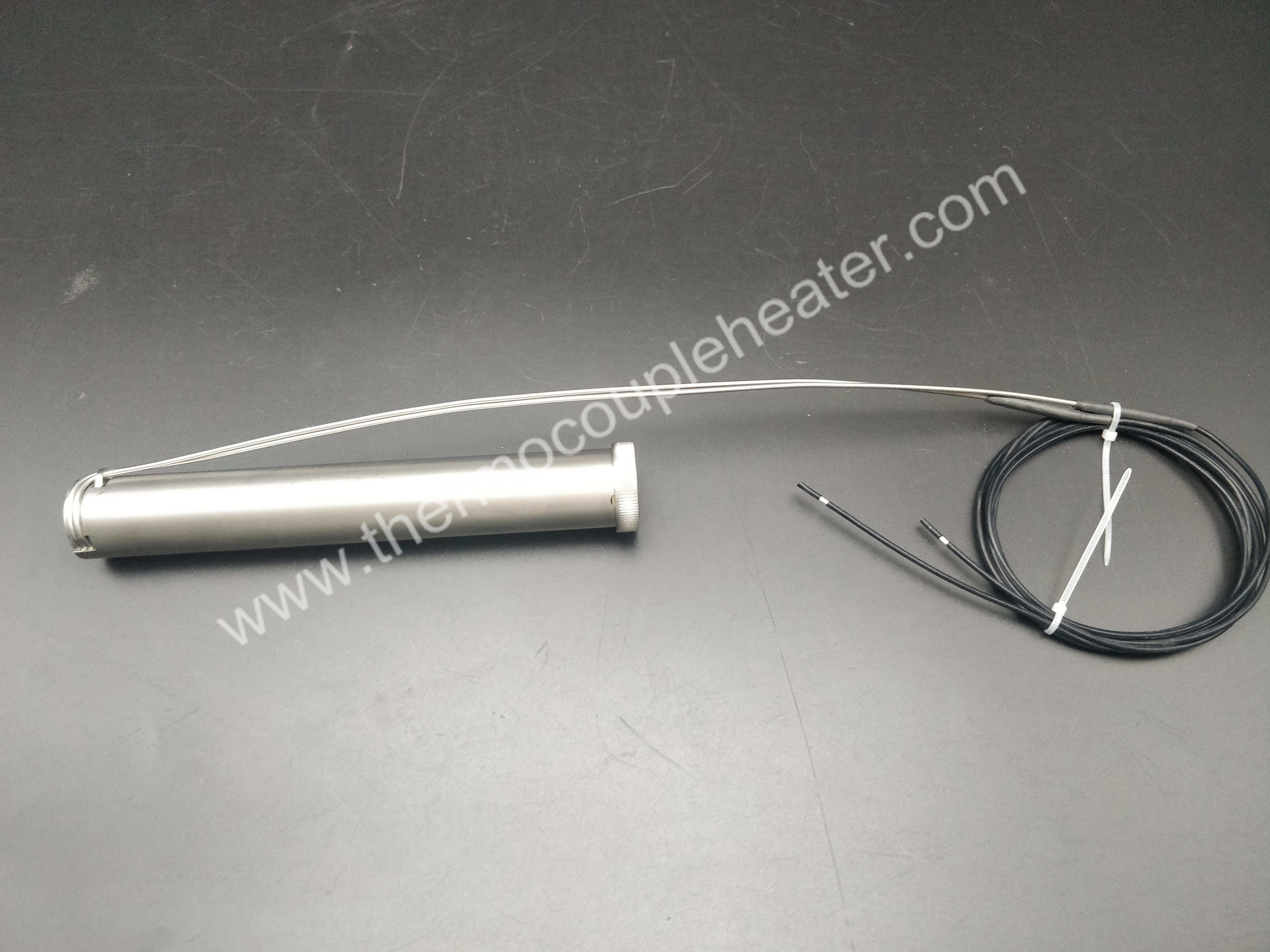

Hot Runner Armoured Tubular Heater With Brass Core SS Steel Sleeve For Injection Molding
1. Brief Introduction

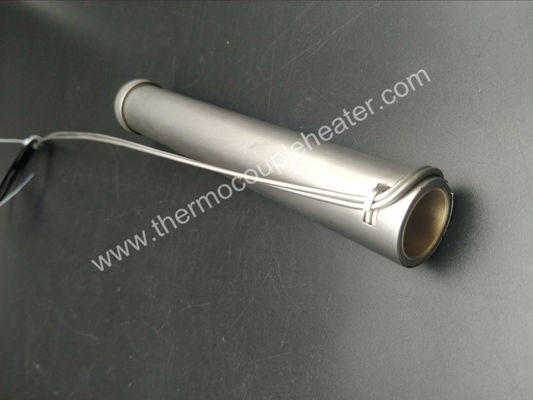

The Hotlock Nozzle Coil Heater are constructed with a Brass core and a Stainless Steel outer sleeve.
The materials used direct the heat inward toward the nozzle resulting in a very efficient heater with even heat distribution. The tightly toleranced I.D allows a slip fit with no clamping required.
Our coil heater made of Germany heater wire ,the united states high-purity magnesium oxide materials and strict process technology,there are various sections and sizes,square ,round and flat cross sections and sizes available ,provide high –performance electric heater for heating hot runner mold and other fileds. Heaters maximum temperature up to 700C.The integration of temperature thermocouple for precise temperature control ,can provide K J E themocuple ,blasting and black surface treatment ,also provides bright surface.
2. Specification
| Sheath material | Chrome Nickel Steel |
| Insulation material | High purity MgO |
| Heating element | NiCr 80:20 |
| Thermocouple | 'J' type (Fe K) 'K' type (Cr Al) grounded or ungrounded |
| Connection Wires | Stranded Nickel wires with PTFE coating |
| Power Tolerance | (+5% ,-10%) (smaller tolerances on request ) |
| Insulation Resistance | ≥ 500 MΩ at 500V AC |
| Current Leakage | ≤ 0.5 mA at 253V AC |
| Sheath Temperature | 750°C |
| Dielectric strength (high voltage test ) | Min. 1000V |
Technical Drawing
3. Feature
- Robust Design with Choice of Terminal Exits
- Highly Non-corrosive
- Maximum heat transfer due to more contact area
- Advanced Thermal Engineering
- Designed for even heat profile
- Precision fit on Hot Runner Nozzles & Manifolds
- CE Certified
- Available with built in Thermocouple
- Standard sizes available with various cross section
- Various Watt Density options available.
4. Application
- Injection & Blow Moulding Machine Nozzles.
- PET prefrom & Thin wall container Moulds.
- Hot Runner Manifolds.
- Hot Runner Nozzles & Bushings.
- Hot runner Injection moulds
