Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE & ISO |
| Model Number: | Coil Heater |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Exported Case Packing |
| Delivery Time: | 20,000pcs per month |
| Payment Terms: | D/P, L/C, Western Union, T/T, Paypal |
| Product Name: | Stainless Steel Armored Hotlock Hot Runner Coil Heater With Screwed Cap | Application: | Hot Runner |
|---|---|---|---|
| Insulated Material: | Comressed MgO | Power(W): | 200-3000W |
| Watt Density: | 6.5 W / CM 2 | Warranty: | 1 Year |
| Moistureproof: | IP 65 | Lead Wire Length: | 1000 Mm Or Customized |
| High Light: | Hotlock Hot Runner Coil Heaters,ISO Stainless Steel Armored Coil Heaters,IP65 hot runner coil heater |
||

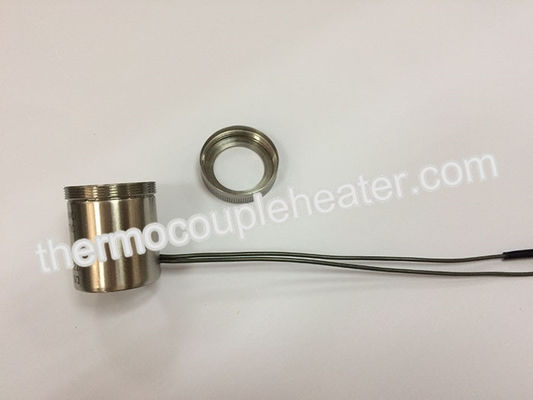

Stainless Steel Armored Hotlock Hot Runner Coil Heater With Screwed Cap And Thermocouple
1. Brief Introduction
GME Hotlock Mini coil heaters utilizes a positive locking positioning ring and machined components to reduce manufacturing complexity.

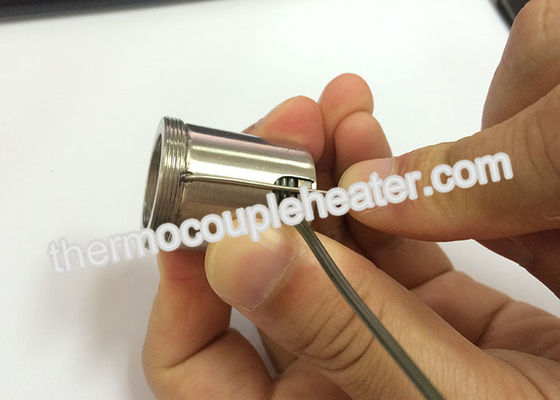

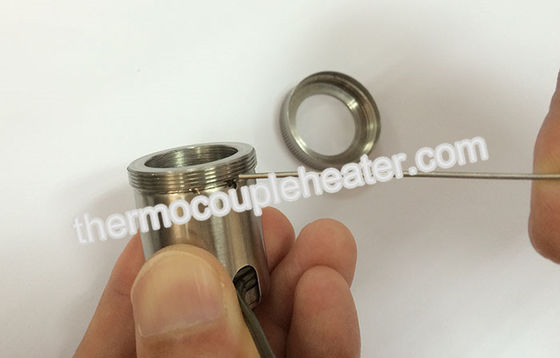

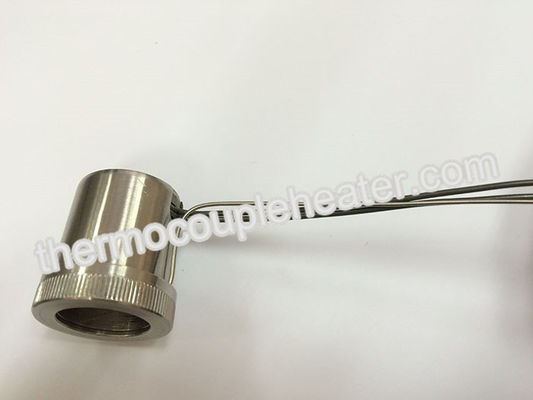

Installation is easy with a twist of the end cap ring the heater is secured into position on the nozzle, and with the integrated thermocouple slot located under the cap the thermocouple is precisely located. No tools are required for installation or removal.
2. Specification
| Sheath material | Chrome Nickel Steel |
| Insulation material | High purity MgO |
| Heating element | NiCr 80:20 |
| Thermocouple | 'J' type (Fe K) 'K' type (Cr Al) grounded or ungrounded |
| Connection Wires | Stranded Nickel wires with PTFE coating |
| Power Tolerance | (+5% ,-10%) (smaller tolerances on request ) |
| Insulation Resistance | ≥ 500 MΩ at 500V AC |
| Current Leakage | ≤ 0.5 mA at 253V AC |
| Sheath Temperature | 750°C |
| Dielectric strength (high voltage test ) | Min. 1000V |
Technical Drawing
3. Feature
4. Application
