Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 120v 220v 240v 380v, 220V | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 3.0x3.0,3.3x3.3mm,4.50 * 4.50 Mm | Style: | Straight Or Coil |
| Lead Wire: | , Fiberglass , Metal Mesh | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Material: | Brass And Stainless Steel | Application: | Manifolds, Hot Runner/ Injection |
| Surface Finishing: | Bright Or Soft Annealed | Insulation Resistance: | > 5 MΩ |
| Type: | Injection Mold Heater | ||
| High Light: | 380V Hot Runner Coil Heater,3000W Hot Runner Coil Heater,CrNiSteel Sheath Hot runner nozzle heater |
||

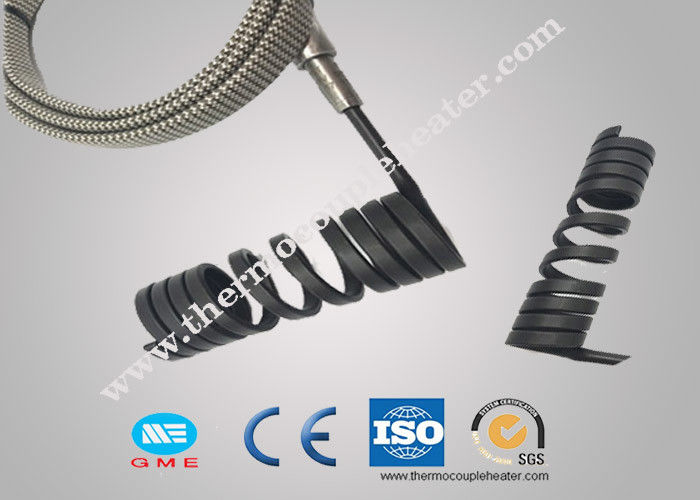

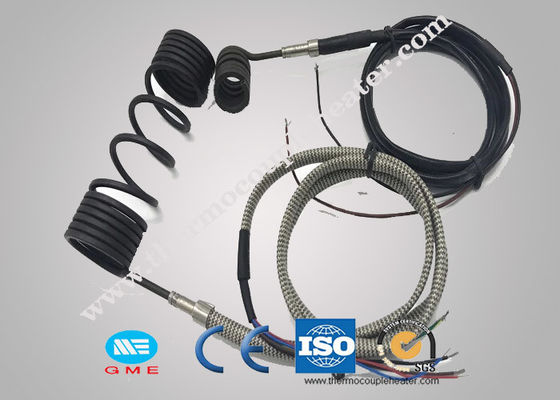

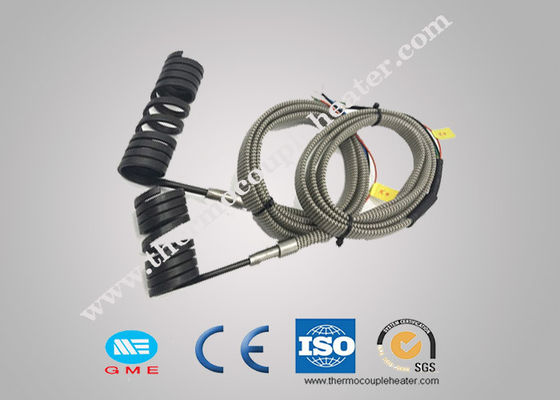

High quality Hot runner heater coil heater with K, J thermocouple
Description:
Hot runner nozzle heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.
Specification:
1.Spring ring heating specification: heating section: 2.2X4.2 3X3 3.4X3.4 3.5X3.5 4X4mm.
2. Heating coil ID :10mm ~ 38mm, heating height of ring: 40mm ~200mm.
3. Voltage: 220V-380V, wattages: 200W- 3000W.
4. Built-in thermocuple power:with or without J/K thermocouple, length of lead wire as 500mm 1000m 1200mm 1500mm or 2000mm.
5. Continuous Operating Temperatures to 1200℉.
Intermittent Operating Temperatures to 1500℉.
6. Spring heating ring advantages: high working temperature, fast heating, long service life, convenient installation.
| Section area | 3.0 x 3.0, 3.30 x 3.30, 3.5 x 3.5, 4 x 4, 4.20 x 2.20, 4.20 x 2.50 |
| Sheath Material | Cr Ni-Steel, SS304, SS310 |
| Insulation Material | High Pure MgO |
| Heating coil ID | 10mm-38mm |
| Voltage | 12-380V |
| Wattage | 70W-3000W |
| Build-in thermocouple power | With or without J/K thermocouple |
| Available sheath | nylon,metal braided,fiberglass ,silicone rubber, kevlar |
| Sheath's color | standard is black,other color is also available |
| Resistance Wire | Ni Cr 80-20 |
| Maximum Sheath Temperature | 700°C |
| Die Electrical Strength | 800V A/C |
| Insulation | >5 M W |
| Thermocouple | J type (Standard) or K type |
| Length Tolerance (Straight) | 5% |
| Wattage Tolerance | + 10% (+ 5% Available Upon Request) |
| Resistance Tolerance | + 10% (+ 5% Available Upon Request) |
| Unheated Length | 35mm (Standard) |
| Dimensional Tolerance | Coil I.D + 0.1 to 0.2mm |
| Coil Length + 1mm |
Application:
Plastic Die Applications;
Blow Molding Machine;
Extrusion;
Hot Runner Systems Injection Molding:
Thermoforming.
