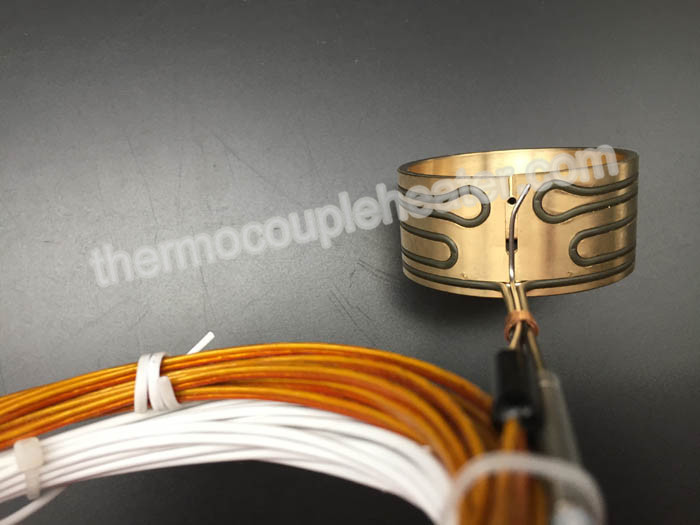

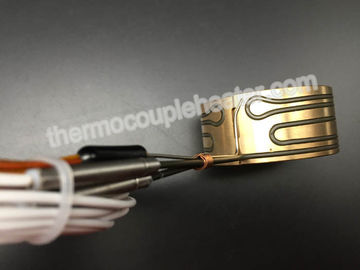

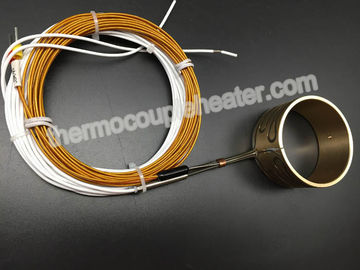

IP65 Press In Brass Nozzle Coil Heaters For Hot Runner System / Injection Mold

IP65 Press In Brass Nozzle Coil Heaters For Hot Runner System / Injection Mold

    • IP65 Press In Brass Nozzle Coil Heaters For Hot Runner System / Injection Mold
    • IP65 Press In Brass Nozzle Coil Heaters For Hot Runner System / Injection Mold
    • IP65 Press In Brass Nozzle Coil Heaters For Hot Runner System / Injection Mold
  • IP65 Press In Brass Nozzle Coil Heaters For Hot Runner System / Injection Mold

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: Standard Export Packing
    Delivery Time: 7-15 working days after received your payment
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 10,000 pcs per month
    Contact Now
    Detailed Product Description
    Application: Hot Runner Material: Brass
    Lead Wire Length: 1000mm Or Customize Warranty: 1 Year
    Insulated Material: Comressed MgO Moistureproof: IP65
    Cross Section: 1.5mm Thermocouple: Type J
    Tube Length: 110 Mm Form: Straight Or Coiled
    Type: Tangential, Radial Exits, Axial Wire: Braided Copper Tinned Conductor Etc
    Wire Insulation: Etc. Protection Sleeves: Fiberglass, Silicon, Braided Metal Screen Etc
    High Light:

    electric resistance heater

    ,

    coil heater with thermocouple

    ,

    IP65 Brass Nozzle Coil Heaters



    Press In Brass Nozzle Coil Heaters For Hot Runner System / Injection Mold





    1. Product introduction



    GME pressed in brass coil heaters deliver the benefits of cast in brass coil heaters and eliminate known problems associated with the casting process. Originally designed for the mass spectrometry market, GME pressed in brass coil heaters have measured 8% faster responding than cast in brass heaters. The machined path in the brass for the heater enables exact repeatability of heat profile. By never exposing the coil heater to molten brass there are no risks of shifted heater coils, or destruction of the thermocouple junction.

    Flexible design options include internal, external “wound in” or external slotted type J or type K thermocouple





    2. Characteristics



    1) The inside insulated cover, same as the German GC.

    2)  Good performance of the heating uniformity in the heating area.

    3)The moisture-proof is IP65.

    4) High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.





    3. Parameter



    Spring coil heater (H series) 3.0x3.0
    3.3x3.3
    4.0x2.0
    4.2x2.2
    4.5x2.7
    Φ3.0 Φ4.0 Φ5.0 3.5x3.5
    4.0x4.0
    5.0x5.0
    Voltage 220V,230V,240V
    Power tolerance 115W-200W +/-10%
    Power tolerance 201W-2000W +5%-10%
    Out jacket length 30mm~280mm
    Diameter of the inner sleeve/wrapped diameter 10mm~42mm
    Unheating length 45mm
    Max power density 9W/cm²
    Heating Length tolerance +/-0.05mm
    Unheating length tolerance +/-2.5%
    Tolerance ID d ≤20mm Without inner sleeve:-0.15mm
    With inner sleeve:0.05mm~0.10mm
    Tolerance ID d 20mm~30mm Without inner sleeve:-0.20mm
    With inner sleeve:0.05mm~0.10mm
    Tolerance ID d ≥30mm Without inner sleeve:-0.25mm
    With inner sleeve:0.05mm~0.10mm
    Tolerance cross section +/-0.15mm +/-0.20mm
    Thermocouple K,J,E None
    Material 304,321,316
    Maximum working temperature 650℃
    Die electrical strength 800V 1000V





    4. Application



    Hot runner system

    Plastic industry

    Packaging machinery

    Medical equipment

    Casting process

    Other electric heating industry
