Features

Specifications

Name: Coil Heater

Application: Hot Runner

Material: Brass

Lead Wire Length: 1000mm Or Customize

Warranty: 1 Year

Insulated Material: Comressed MgO

Moistureproof: IP65

Cross Section: 1.5mm

Thermocouple: Type J

Tube Length: 110 Mm

Form: Straight Or Coiled

Type: Tangential, Radial Exits, Axial

Wire Insulation: Etc.

Protection Sleeves: Fiberglass, Silicon, Braided Metal Screen Etc

Highlight:

electric resistance heater

coil heater with thermocouple

Brass Tube Heaters With Metal Clap

Basic Infomation

Place of Origin: China

Brand Name: GME

Certification: CE & ISO

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 7-15 working days after received your payment

Payment Terms: T/T or western Union or Paypal

Supply Ability: 10,000 pcs per month

Gallery

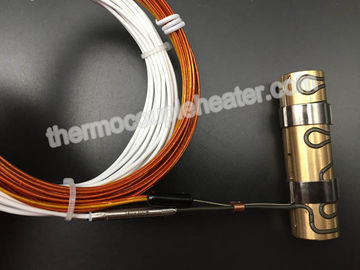

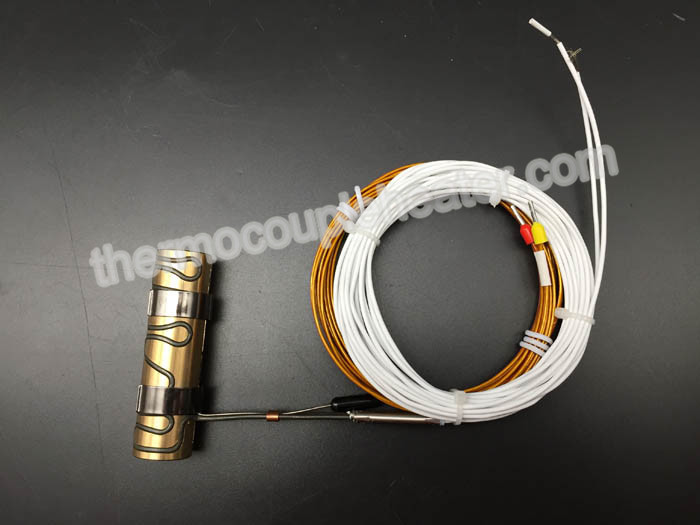

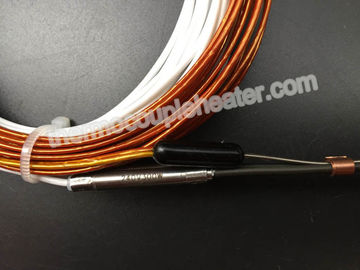

Brass Tube Heaters With Metal Clap , Mold Heater With 1 Year Warranty

Product Description

Brass Tube Heaters With Metal Clap For Hot Runner Injection Mold

1. Product introduction

Brass Tube heaters are commonly used for nozzle heating on hot runner systems in the plastic industry but also used for the packaging industry etc. Coil heaters are manufactured in round, square or rectangular section to guarantee the greatest thermal exchange keeping an excellent...

2. Characteristics

1) The inside insulated cover, same as the German GC.

2) Good performance of the heating uniformity in the heating area.

3)The moisture-proof is IP65.

4) High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.

3. Parameter

Spring coil heater (H series)	3.0x3.0 3.3x3.3 4.0x2.0 4.2x2.2 4.5x2.7	Φ3.0	Φ4.0	Φ5.0	3.5x3.5 4.0x4.0	5.0x5.0
Voltage	220V,230V,240V
Power tolerance 115W-200W	+/-10%
Power tolerance 201W-2000W	+5%-10%
Out jacket length	30mm~280mm
Diameter of the inner sleeve/wrapped diameter	10mm~42mm
Unheating length	45mm
Max power density	9W/cm²
Heating Length tolerance	+/-0.05mm
Unheating length tolerance	+/-2.5%
Tolerance ID d ≤20mm	Without inner sleeve:-0.15mm With inner sleeve:0.05mm~0.10mm
Tolerance ID d 20mm~30mm	Without inner sleeve:-0.20mm With inner sleeve:0.05mm~0.10mm
Tolerance ID d ≥30mm	Without inner sleeve:-0.25mm With inner sleeve:0.05mm~0.10mm
Tolerance cross section	+/-0.15mm			+/-0.20mm
Thermocouple	K,J,E					None
Material	304,321,316
Maximum working temperature	650℃
Die electrical strength	800V			1000V

4. Application

Hot runner system

Plastic industry

Packaging machinery

Medical equipment

Casting process

Other electric heating industry
