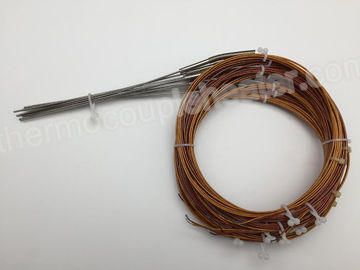

CE Type J Thermocouple RTD With 24GA Kapton Leads And Metal Transition

CE Type J Thermocouple RTD With 24GA Kapton Leads And Metal Transition

    • CE Type J Thermocouple RTD With 24GA Kapton Leads And Metal Transition
    • CE Type J Thermocouple RTD With 24GA Kapton Leads And Metal Transition
  • CE Type J Thermocouple RTD With 24GA Kapton Leads And Metal Transition

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO9001/CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiable
    Packaging Details: Carton or as per your request
    Delivery Time: 7~20 working days
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Product Name: Type J Thermocouple With 24GA Kapton Leads And Metal Transition Application: Temperature Sensor For Plastic Industry
    Calibration: Type J Accuracy: Class I
    Max.temperature: 500F Or 260C Probe Diameter: 1.0mm, 1.5mm, Etc
    High Light:

    temperature sensor rtd

    ,

    temperature sensor rtd pt100



    Type J Thermocouple With 24GA Kapton Leads And Metal Transition



    Product  Description:


    A thermocouple is a sensor for measuring temperature. It consists of two dissimilar metals, joined together at one end, which produce a small unique voltage at a given temperature. This voltage is measured and interpreted by a thermocouple thermometer.  The hot runner thermocouples are custom-designed to suit all applications where sheathed thermocouples are required. An extensive range of elements, transition sleeves and process connections can be individually selected for the appropriate application. With the flexibility and small diameters in which they are available, hot runner thermocouples can be used in locations that are not easily accessible.

    Thanks to their unique design, the hot runner thermocouples are especially suited for applications where the metal sensor tip is fitted directly into a drilled hole or press-fitted into a grooved channel along the machined parts.

    In the standard version the thermocouples are manufactured without process connections. Fastening elements such as a union screw, a compression fitting, or a spring-loaded or customer-specific hold down device can be attached and are available as options.

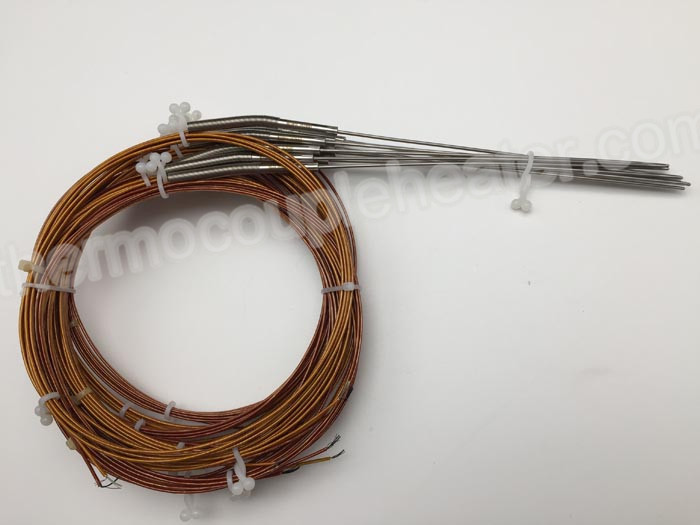

    CE Type J Thermocouple RTD With 24GA Kapton Leads And Metal Transition



    Specification:





    Probe Outside Diameter

    0.5mm, 1.0mm, 1.5mm

    Calibration

    Standard limits of error (Type K,J,T,E,N)

    Special limits or error (Type K,J,T,E,N)



    Sheath Material

    304 Stainless Steel

    316 Stainless Steel

    Inconel 600



    Junction

    Ungrounded , Grounded



    Cable Insulation Description

    24 Gage, Stranded , Kapton

    24 Gage, Solid, Kapton

    24 Gage, Stranded,

    24 Gage,Solid,

    24 Gage,Stranded, Fiberglass

    24 Gage, Solid ,Fiberglass

    Termination type

    50mm split leads and 15mm Bare Ends.

    50mm split leads and spade lugs.

    Standard Male Plug (425F)

    Standard Female Jack(425F)

    Mini Male Plug(425F)

    Mini Female Jack(425F)

    Hi Temp Male Plug(800F)

    Hi Temp Female Jack(800F)





    Feature:


    1. Moulded transition eliminates all possibilities of potential defects when inserted, formed and used in Hot Runner systems.
    2. The sensor can be formed or mounted into the process, or with the use of a swivel nut or a spring-loaded bushing.
    3. Sensor diameter available from 0.5 to 1.5mm ;
    4. Extension cable are available in a variety of insulation materials. These include kapton, fibreglass, PTFE or PVC with or without stainless steel overbraid.

    5. The thermocouple sensors are available with a variety of sheath materials including stainless steel, corrosion resistant and high temperature oxidation resistant alloys.


    Application:


    For direct installation into the process

    Plastics and rubber industry
    Hot runner bushings, drops and nozzles

    Hot runner manifolds
    Moulds used in injection moulding machines
