Stainless Steel Armored Electric Coil Heaters , Electric Heating Element

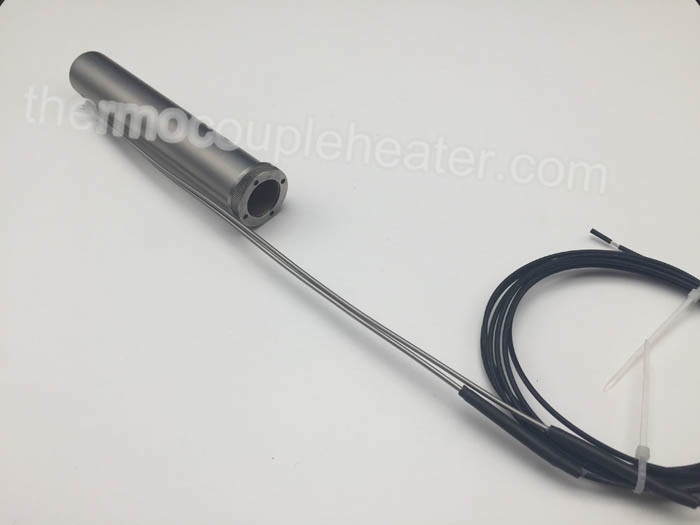

Stainless Steel Armored Electric Coil Heaters With Cap And PTFE Insulated Leads​

1. Brief Introduction

Our coil heater made of Germany heater wire ,the united states high-purity magnesium oxide materials and strict process technology,there are various sections and sizes,square ,round and flat cross sections and sizes available ,provide high –performance electric heater for heating hot runner mold and other fileds. Heaters maximum temperature up to 700C.The integration of temperature thermocouple for precise temperature control ,can provide K J E themocuple ,blasting and black surface treatment ,also provides bright surface.

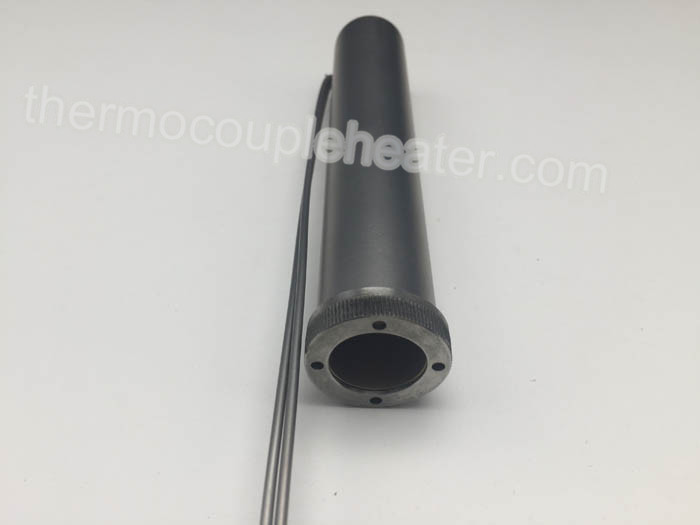

The materials used direct the heat inward toward the nozzle resulting in a very efficient heater with even heat distribution. The tightly toleranced I.D allows a slip fit with no clamping required.  The Armored Nozzle Coil Heater are constructed with a Stainless Steel inner sleeve and a Stainless Steel outer sleeve. The heater is tightly sandwiched between these sleeves eliminating the heat transfer problems associated with other dual sleeved designs.

2. Specification

Technical Drawing

3. Feature

• Maximum heat transfer due to more contact area
• Advanced Thermal Engineering
• Designed for even heat profile
• Precision fit on Hot Runner Nozzles & Manifolds
• Available with built in Thermocouple
• Standard sizes available with various cross section
• Various Watt Density options available.
• Robust Design with Choice of Terminal Exits
• Highly Non-corrosive
• CE Certified

4. Application

• PET prefrom & Thin wall container Moulds.
• Hot Runner Manifolds.
• Hot Runner Nozzles & Bushings.
• Hot runner Injection moulds
• Injection & Blow Moulding Machine Nozzles.

5. Packing
