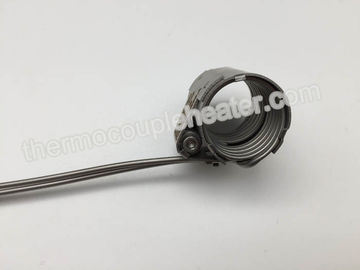

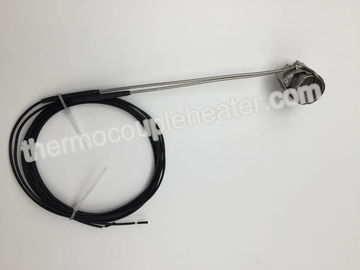

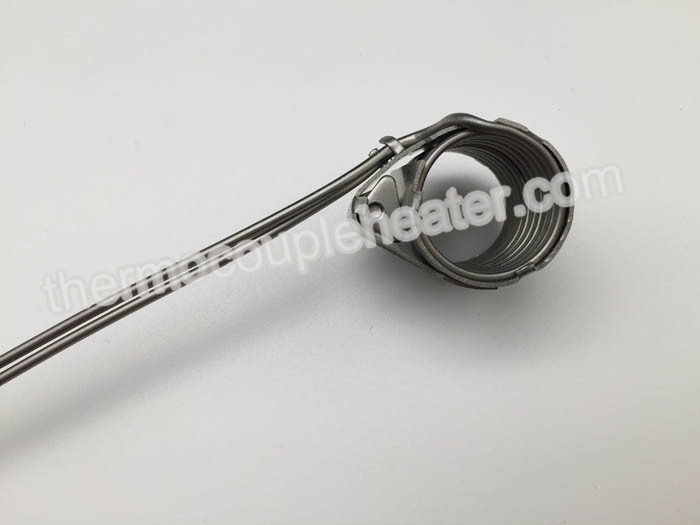

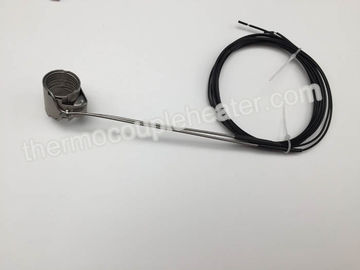

Axial Clamp Coil Heaters , Mini Electric Resistance Heater For Plastic Injection Mold

Axial Clamp Coil Heaters For Hot Runner System Mini Heater

Description

Coil and cable heaters are made by placing a pair of tiny coils or two lines of straight resistance wire inside a very dense MgO medium. This core is then inserted into a stainless steel shell. These high-performance heating cells can acquire temperatures of up to 1500° F.

The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.It's high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can be reuses.

Technical Specifications

1. Heater Sheath: CrNi Steel

2. High Voltage Stability: 800VAC

3. Insulation Resistance: >= 5M ohm at 500 VDC (Cold)

4. Leakage Current: <= 0.5 mA at 250VAC (Cold)

5. Wattage Tolerance: +/- 2%, +/- 4%, or +/-10%

6. Maximum Voltage: 250V

7. Standard Connection: 72” to 500 deg. F

Features

1. Mini coils in direct contact with nozzle

2. Single allen screw adjustment for tightening and removal

3. Profiled for more heat at the Tip

4. Positive locking positioning

5. Replaceable external thermocouple

6. Caps and Closure Applications

7. Close matching of Ohms so that multiple axial clamp heaters can be controlled with a single thermocouple

8. Also used in Plastic molding for the cosmetic industry

Application,

1.Plastic Injection Machine
2.Plastic Extruder Machine

3.Hot Runner & Bushings
4.Tube Extrusion
5.Pipe Forming
6.Hot Runner Mould
