Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
Place of Origin: | China |
Brand Name: | GME |
Certification: | CE |
Minimum Order Quantity: | 50pcs |
---|---|
Packaging Details: | cartons, pallet |
Delivery Time: | 7~10 working days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 100000 pcs per Month |
Power Source: | Electric | Temperature Range: | -200~650℃ |
---|---|---|---|
Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
Style: | PT100, PT1000, PT500, K, J | Pairs Quantity Of Element: | Simplex/duplex |
Heating Element: | Nichrome Resistance | Probe Length: | 30-1000mm |
Usage: | Temperature Sensor | Temperature: | 0-800C |
Types Of Terminal Box: | Anti-spray/water-proof | ||
High Light: | temperature sensor rtd,temperature sensor rtd pt100 |

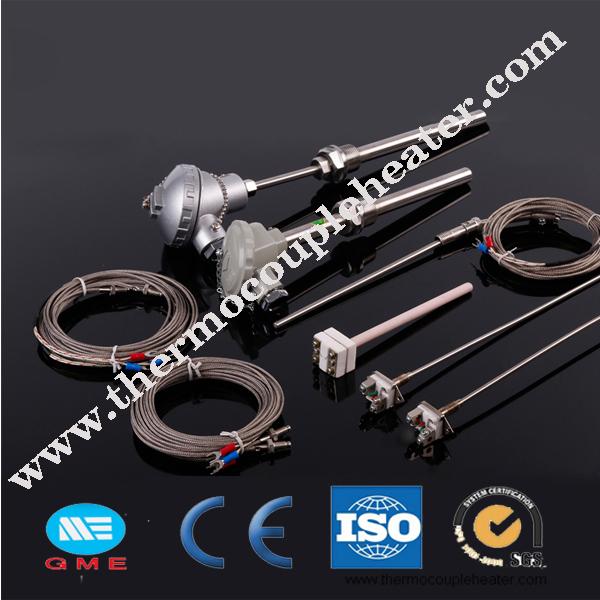

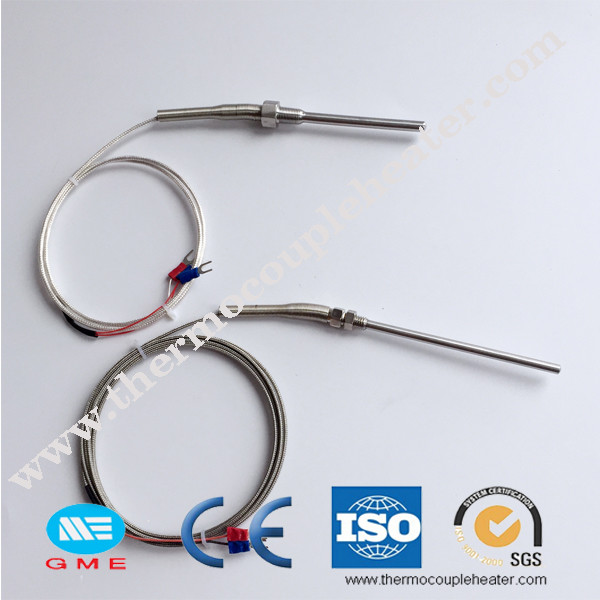

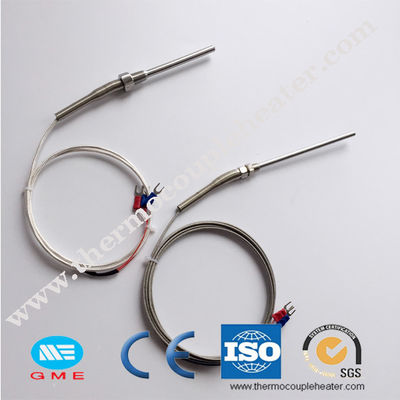

K type thermocouple temperature sensor probe for industrial temperature measurement
Description:
1) The thermocouple is a temperature measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit
2) Thermocouples are a widely used type of temperature measurement and control, and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive, interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures.
3) Wuhan Global Metal Engineering Co., LTD was established in 1995 which is one of the earliest manufactures of sheathed thermocouple, the largest sheathed materials producers in China and the largest temperature elements exporting enterprises in China, With a 50% domestic market share. specializing in thermocouple,RTD,Electrical Heat Equipment ,thermoresistor,MgO Cable for thermocouple,othersheathed thermocouple materials etc,mainly exporting to North America, Europe, Canada, Japan, Korea and etc.After 16 years’ hard work and innovation, ”GME” has become a leading company in the felid of producing instruments in China and successively become a standing director unit of Instruments Material Branch of China Instruments Manufacturers Association, a director unit of China Temperature Instruments Association and China Nuclear Industry Association.
Specification:
Specification of k type sheath thermocouple
1).Type: K
2). Temperature range: 0°C-800°C
3). Precision grade: Class A / Class B
4). Probe diameter:8mm, can be customized
5). Probe material: SS304/SS316
6). Probe length:2000mm or customized
7). Movable thread size: M27*2
8). Thermocouple head type: water-proof
Sheathed Materia: | 2520 SS |
Temperature range: | 0°c to 1000°c |
Type: | K |
class | 1 |
Sheathed material Diameter | 1.5mm |
Sensor material: | NiCr-NiSi |
length of probe | 100mm |
length of compensation wire | 350mm |
Certification | ISO9001, ISO14001 |
Package: | Wooden case/carton box or as your requirement |
