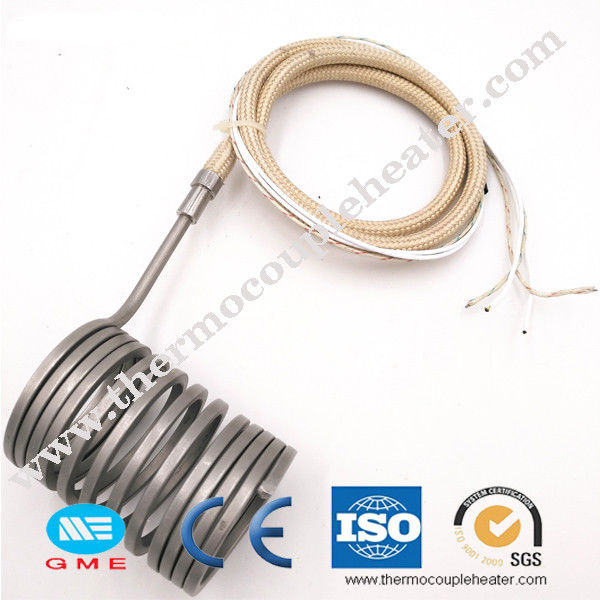

Hot Runner Coil Heaters , Stainless Steel Heating Coil With One Year Warranty

Large Image : Hot Runner Coil Heaters , Stainless Steel Heating Coil With One Year Warranty

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	120v 220v 240v 380v, 220V	Sheath Material:	SUS304,SUS316
Cross Section:	3.0x3.0,3.3x3.3mm,4.50 * 4.50 Mm	Style:	Straight Or Coil
Lead Wire:	, Fiberglass , Metal Mesh	Coiling Scheme:	Tangential, Radial Exits, Axial
Material:	Brass And Stainless Steel	Application:	Manifolds, Hot Runner/ Injection
Surface Finishing:	Bright Or Soft Annealed	Insulation Resistance:	> 5 MΩ
Highlight:	electric resistance heater , coil heater with thermocouple , Hot Runner Stainless Steel Heating Coil

Factory Outlet Good Price High Quality Hot Runner Coil Heater With One Year Warranty

Description:

1) Hot runner system heating coils are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer.

2) The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.

Specification:

Sheath of coil heater: SUS304

Insulation of coil heater: Compacted magnesium Oxide

Heating conductor: NiCr8020

Thermocouple: K type, J type (optional)

Leads: Stainless steel braided wire, PTFE wire, glass fiber wire ( On demand)

Voltage: 24V to 415V

Temperature resistance: Maxi 800 cent degree

Sheath Material	Cr Ni-Steel
Insulation Material	MgO
Resistance Wire	Ni Cr 80-20
Thermocouple	‘J’ type (Fe K) ‘K’ type (Cr Al) grounded or ungrounded
Maximum Sheath Temperature	700°C
Die Electrical Strength	800V A/C
Insulation	> 5 M W
Thermocouple	J type (Standard) or K type
Length Tolerance (Straight)	5%
Wattage Tolerance	+ 10% (+ 5% Available Upon Request)
Resistance Tolerance	+ 10% (+ 5% Available Upon Request)
Unheated Length	35mm (Standard)

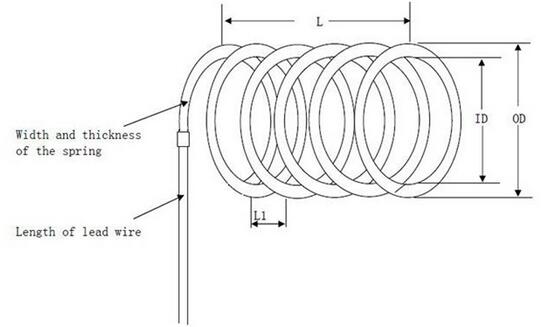

Dimensional Tolerance	Coil I.D + 0.1 to 0.2mm
Dimensional Tolerance	Coil Length + 1mm

Hot Runner Coil Heaters , Stainless Steel Heating Coil With One Year Warranty 0

Application:

1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings.
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.
