Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 120v 220v 240v 380v, 220V | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 3.0x3.0,3.3x3.3mm,4.50 * 4.50 Mm | Style: | Straight Or Coil |
| Lead Wire: | , Fiberglass , Metal Mesh | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Material: | Brass And Stainless Steel | Application: | Manifolds, Hot Runner/ Injection |
| Surface Finishing: | Bright Or Soft Annealed | Insulation Resistance: | > 5 MΩ |
| Highlight: | electric resistance heater,coil heater with thermocouple,Cable Heaters With Thermocouple K |
||

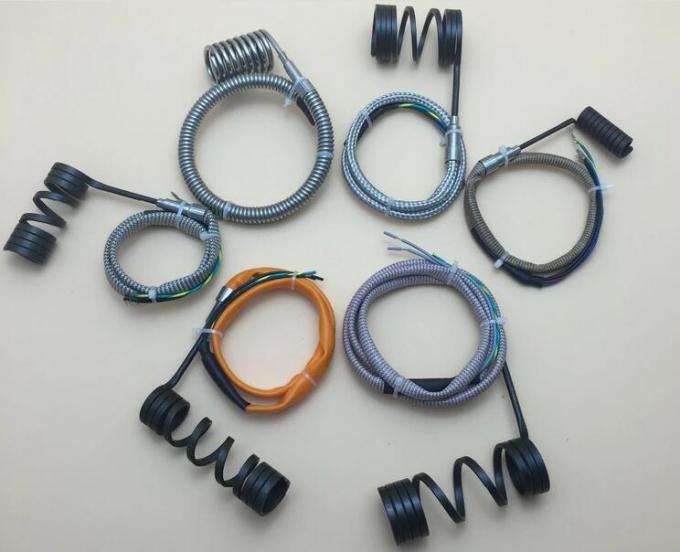

Stainless steel 304 Spring Hot Runner Coil Heater Element with type J thermocouples
Description:
1. Coil Heater also know as cable heaters can be formed to a variety of shapes as required by its many application.
2.Frequenty though,coil heaters are configured as samll diameter,high performance nozzle heaters that are fully annealed.
3. Factory Sale Injection Molding Hot Runner Coil Heater is use on injection molding machine nozzles and sprue bushings supplying bushings supplying 360 degree of heat with optional distributed wattage available.
4. Factory Sale Injection Molding Hot Runner Coil Heater is also used as cartridge heaters where irregular size bores are found.A straight,round cable heater can snake through a seal in packaging equipment installations.
Specification:
|
Product Name
|

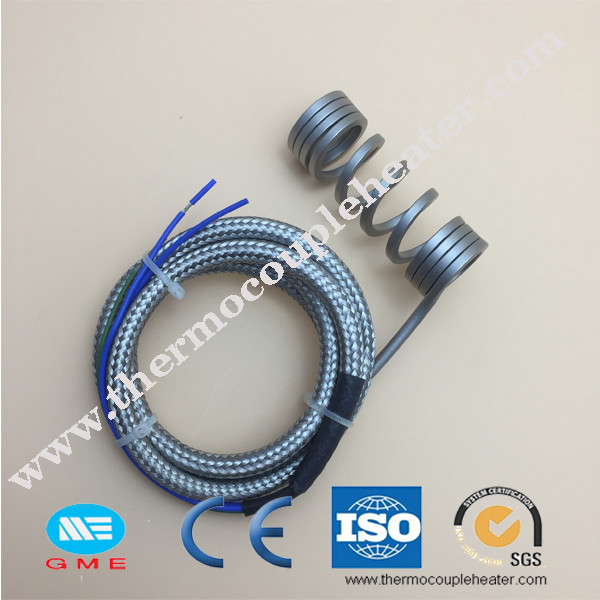

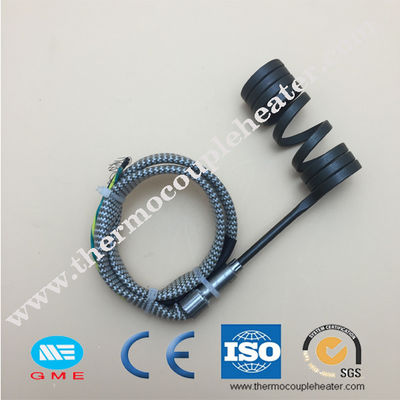

Hot Runner Coil and Cable Heaters with thermocouple K/J
|
|
Section area
|
3*3, 3.3*3.3, 3.5*3.5, 4*4, 4.2*4.2, 2.2*4.2
|
|
Sheath Material
|
Stainless Steel
|
|
Insulation Material
|
High Pure MgO
|
|
Heating Coil ID
|
10mm-38mm
|
|
Voltage
|
12v-380v
|
|
Wattage
|
70w-3000w
|
|
Build-in thermocouple
|
With Thermocouple J/K
|
|
Available sheath
|
nylon,metal braided,fiberglass ,silicone rubber, kevlar
|
|
Sheath's color
|
standard is black,other color is also available
|
|
Resistance Wire
|
Ni Cr 80-20
|
|
Maximum Sheath Temperature
|
700°C
|
|
Length Tolerance (Straight)
|
5%
|
Application:
1.Hot Runner & Bushings
2.Tube Extrusion
3.Pipe Forming
4.Hot Runner Mould
5.Plastic Injection Machine
6.Plastic Extruder Machine
