Brass Nozzle Spring Coil Heaters For Hot Runner System With Thermocouple J

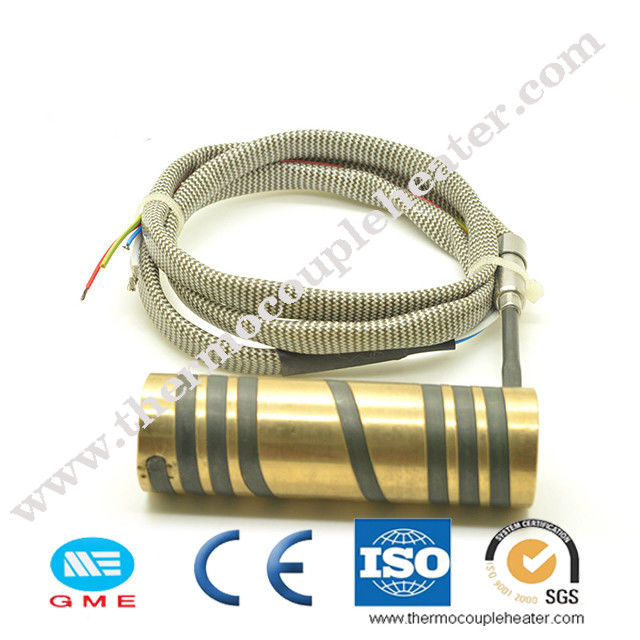

Large Image : Brass Nozzle Spring Coil Heaters For Hot Runner System With Thermocouple J

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	110-240V / 50-60Hz	Warranty:	One Year
Power:	195W-690W	Style:	Straight Or Coil
Heating Wire Material::	Cr20Ni80	Coiling Scheme:	Tangential, Radial Exits, Axial
Material:	Brass Or Stainless Steel	Color:	Copper
Application:	Widely Used	Height:	10mm~200mm
Highlight:	electric resistance heater , coil heater with thermocouple , Brass Nozzle Spring Coil Heaters

Brass Nozzle Spring Coil Heater for Hot Runner System with thermocouple J

Description:

1) Hot runner coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape.

2) Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.

Specification:

1.Standard sizes available with various cross section
2.Various Watt Density option available
3.Designed for even heat profile
4.Precision fit on Hot Runner Nozzles
5.Highly Non-corrosive

Item Name	Brass Nozzle Spring Coil Heater for Hot Runner
Voltage	12v - 380v
Power	70w - 1000w
Sectional Area	3X3,4.2X2.2,4X2,4X2.7,4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3mm
Minimum ID	8mm
Maximum Temperature	700℃
Sheath Material	SS304,SS310
Insulation Material	High Pure MgO
Build-in thermocouple	without or with J/K thermocouple
Connector	without or with 5 pin xlr,4 pin min xlr connector
Lead Wire Length	500/1000/1200/1500/2000mm
Available sheath	nylon, metal braided, fiberglass, silicone rubber, kevlar

Brass Nozzle Spring Coil Heaters For Hot Runner System With Thermocouple J 0

Application:

1.Caustic Cyanide used in gold processing
2.Caustic solutions Detergent
3.Sterilizing equipment
4.Plastic processing&packaging machinery
5.Ovens&dryers

6.Dies&Tools
7.Water& Oil heating appliances
8.Vending machines
9.Medical equipment information about what you need.
