| Name: | Big Diameter Press In Brass Coil Heater For Plastic Injection Machine With Thermocouple | Application: | Hot Runner |
|---|---|---|---|
| Lead Wire Length: | 1000mm Or Customize | Insulated Material: | Comressed MgO |
| Moistureproof: | IP65 | Tube Length: | 78 Mm |
| Form: | Straight Or Coiled | Type: | Tangential, Radial Exits, Axial |
| Wire: | Braided Copper Tinned Conductor Etc | Protection Sleeves: | Fiberglass, Silicon, Braided Metal Screen Etc |
| Highlight: | electric resistance heater,coil heater with thermocouple,Brass Coil Heater With Thermocouple |
||

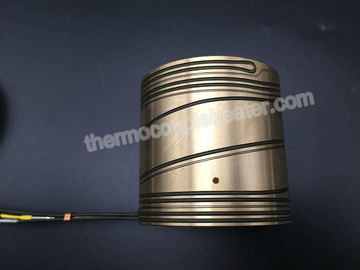

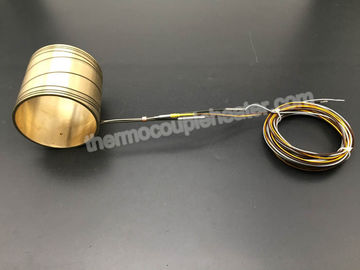

Big Diameter Press In Brass Coil Heater For Plastic Injection Machine With Thermocouple
1. Introduction
Hot runner heater’s production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality stainless steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reus
Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.
2. Characteristics
1) The inside insulated cover, same as the German GC.
2) Very good performance of the heating uniformity in the heating area.
3) High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.
4)The moisture-proof is IP65.
3. Parameter
| Spring coil heater (H series) | 3.0x3.0 3.3x3.3 4.0x2.0 4.2x2.2 4.5x2.7 |
Φ3.0 | Φ4.0 | Φ5.0 | 3.5x3.5 4.0x4.0 |
5.0x5.0 |
| Voltage | 220V,230V,240V | |||||
| Power tolerance 115W-200W | +/-10% | |||||
| Power tolerance 201W-2000W | +5%-10% | |||||
| Out jacket length | 30mm~280mm | |||||
| Diameter of the inner sleeve/wrapped diameter | 10mm~42mm | |||||
| Unheating length | 45mm | |||||
| Max power density | 9W/cm² | |||||
| Heating Length tolerance | +/-0.05mm | |||||
| Unheating length tolerance | +/-2.5% | |||||
| Tolerance ID d ≤20mm | Without inner sleeve:-0.15mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance ID d 20mm~30mm | Without inner sleeve:-0.20mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance ID d ≥30mm | Without inner sleeve:-0.25mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance cross section | +/-0.15mm | +/-0.20mm | ||||
| Thermocouple | K,J,E | None | ||||
| Material | 304,321,316 | |||||
| Maximum working temperature | 650℃ | |||||
| Die electrical strength | 800V | 1000V | ||||
4. Application
casting process
other electric heating industry
hot runner system
plastic industry
packaging machinery
medical equipment
