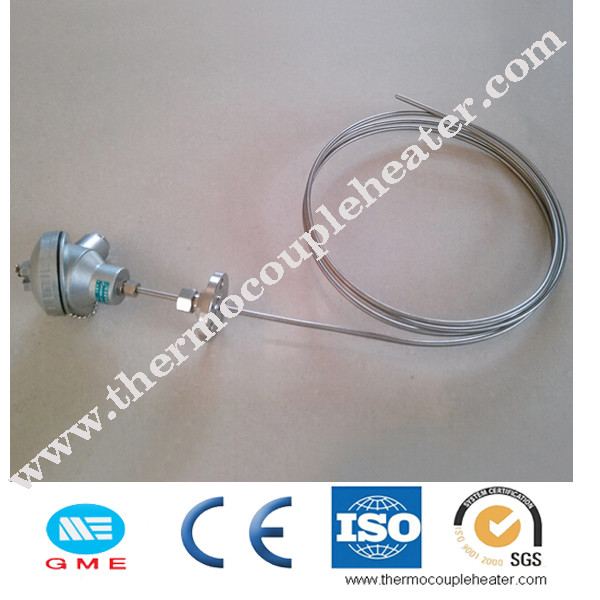

k type MI thermocouple with thermocouple head in Mineral Insulated cable
Description:
1) Magnesium Oxide insulated thermocouples, commonly referred as MgO thermocouples, are used in many process and laboratory applications.
2) They are available in all thermocouple element types, a wide variety of sheath diameters and materials, they are rugged in nature and bendable, and their fairly high-temperature ratings make MgO thermocouples a popular choice for a multitude of temperature measuring applications.
3) MgO sensors are constructed by placing an element or elements into a sheath of a suitable material and size, insulating the elements from themselves and the sheath with loose filled or crushable Magnesium Oxide powder or insulators, and then swaging or drawing the filled sheath down to its final reduced size.
Specification:
Type: K, N, E, J, T
Conductor material: NiCr-NiSi,NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, INCL600,601, Nicrobell,SS446,SS347,800,800H,825,INCONEL601,INCONEL625,GH4145 and GH3128
Dia(mm): from 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
MOQ: 100m
Certificate: ISO,SGS
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T,Western Union, L/C
Advantage: Competitive price and best service
| Materia: |
316/304 stianless steel or as your requirement |
| Temperature range: |
-200 t0 600(RTD),-40 to1700(Thermocouple) |
| Response time: |
3sec to10sec/Variable depend upon types |
| Conductor wire: |
2,3,4,6,8 |
| Sheathed material Diameter |
0.5,1,2,3,4,5,6,8,12 |
| Bare material: |
Pt,Rh,Ni,Cr,Si,Cu,Fe |
| Size: |
According to your requst |
| Usage : |
Thermocouple or RTD |
| Package: |
Wooden case/carton box or as your requirement |
| Certificate |
ISO9001, ISO14001 |
| Mode of Shipment: |
Express Delivery, Air or Sea |
